Rotel S14 | Integrated Network Streamer and Amplifier

Rotel S14 Integrates Design, Experience, and Performance as a Streamer, DAC, and Integrated Amplifier

• High resolution network streaming with Roon, TIDAL, Spotify, Qobuz, and more
• 150W/channel Class A/B speaker output
• Wide range of connection options, including ethernet, USB, S/PDIF, and Bluetooth
• 32-Bit Premium ESS DAC

Streaming Simplicity

The Rotel S14 Integrated Network Streamer is an all-in-one solution providing convenient, intuitive access to the near limitless catalog of online music. High resolution audio including MQA from Tidal and Qobuz is rendered with detailed precision through a 32-bit ESS DAC delivering 150 Watts of Class AB power into 4 ohms.

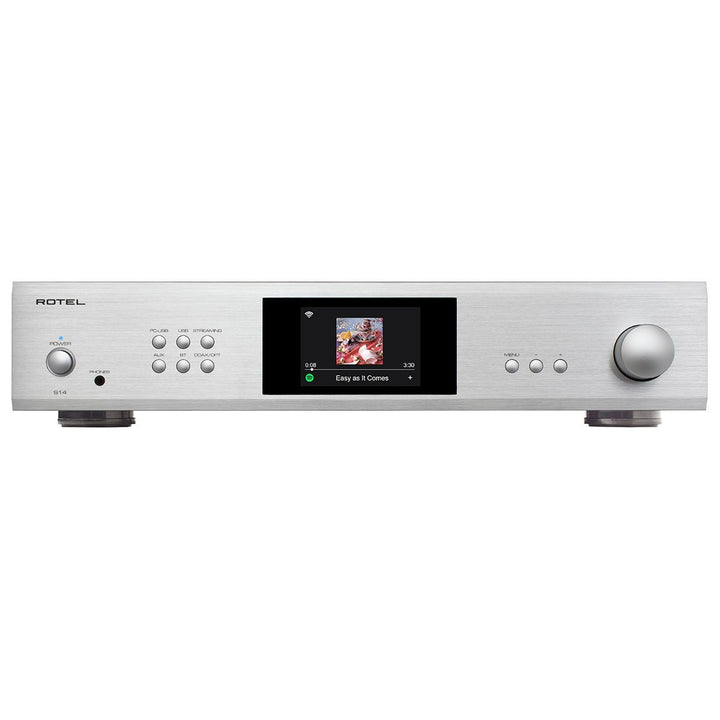

The front panel color display presents album artwork, track, and title information and simplifies the setup and configuration process using the included remote control. The S14 connects to both hard-wired and dual-band Wi-Fi networks for installation flexibility.

Stream using your favorite music App or use the S14 iOS and Android Apps to access thousands of Internet Radio stations, Podcasts, and high-resolution music from Tidal and Qobuz. The S14 is fully certified Roon Ready and also supports Spotify Connect, Airplay2 , and Google Cast for the ultimate ease of streaming your music.

The S14 also includes Coaxial, Optical, Analog, PC-USB and aptXTM HD Bluetooth source inputs for legacy devices and even plays MP3, WMA and AAC files from flash drives.

This just-add-speakers solution continues to deliver on the promise of quality, performance, and value synonymous with Rotel.

Specifications

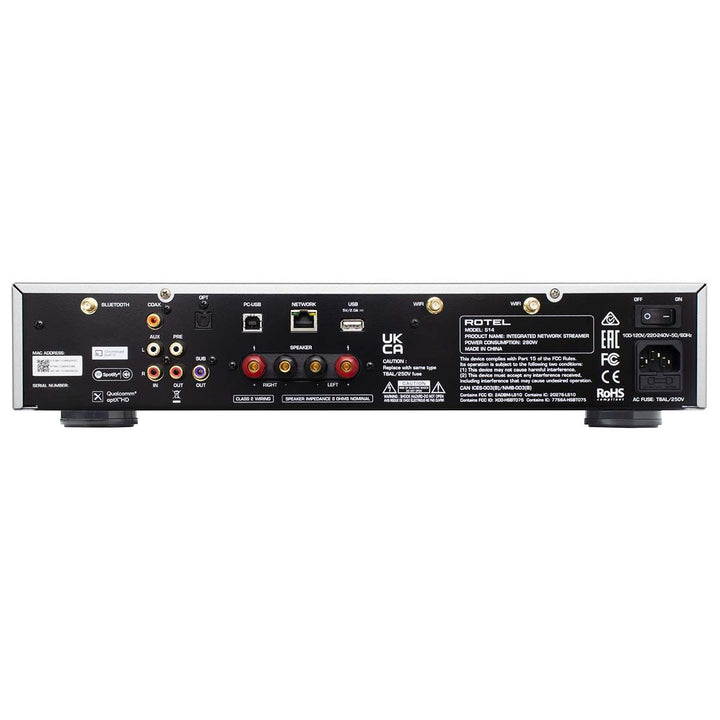

Input/Output

• Digital Inputs
• Ethernet/Wireless Network

• PC-USB/USB-B
• Digital Coax
• Optical Digital
• Analog Inputs
• RCA Aux Input
• Outputs
• RCA Preamp Output
• 3.5mm Headphone Output
• Speaker Output: Dual conductor bare wire, connector lug, or dual-banana
• RCA Sub Output
• Maximum Power Output: 150W/per channel (4ohm), 80W/per channel (8ohm)
• Total Harmonic Distortion (THD): <0.04%
• Frequency Response
• Line Level Inputs: 10Hz - 100kHz, ±0.5dB
• Digital Inputs: 10Hz - 90kHz, ±2.0dB
• Max SNR (IHF "A" Weighted)
• Line Level Inputs: 100dB
• Digital Inputs: 98dB
• Input Sensitivty
• Line Level Inputs: 200mV
• Digital Inputs: -20dBfs
• Input Impedance
• Line Level Inputs: 47kΩ
• Digital Inputs: 75Ω
• Input Overload

• Line Level Inputs: 4.5V

Size, Weight, and Power Consumption

• Dimensions: 17" × 3 5/8" × 13 1/2" (430 × 93 × 345mm)
• Front Panel Height: 3.15"
• Weight: 20.17lbs.
• Power Requirements: 120V, 60Hz
• Power Consumption: 280W
• Standby Power Consumption: <0.5W
