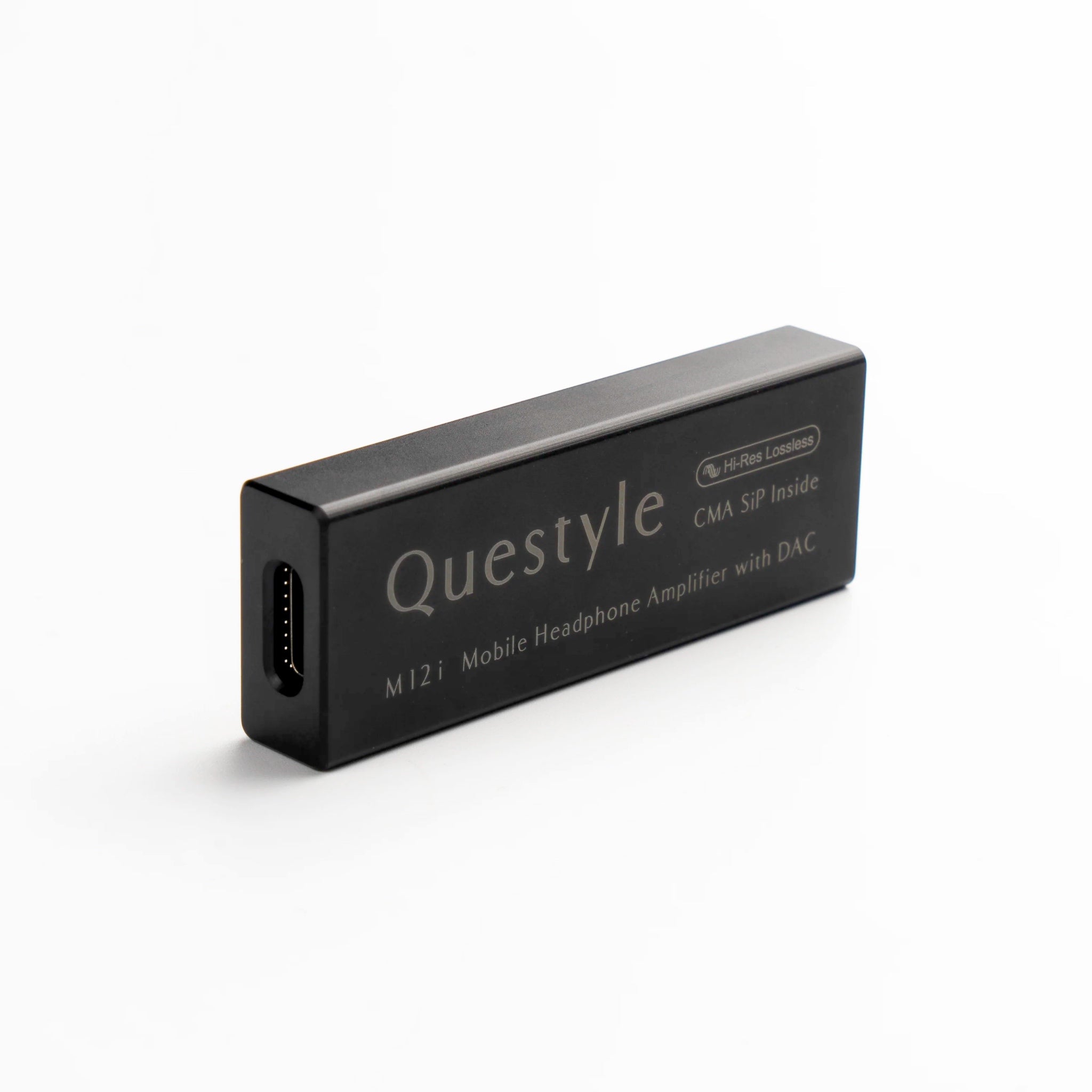

Questyle M12i front quarter over white background
Questyle M12i top quarter over white background
Questyle M12i with attached earbuds connected to Macbook
Questyle M12i in open retail box with all accessories
Questyle M12i with attached headphone cable connected to iPad

Questyle M12i | Portable DAC and Amp

Sale price$149.00
/

Condition

Questyle logo black

Questyle M12i Combines Sound, Aesthetics, and MFi Certification for an Affordable, Incredible Audio Experience

  • Latest update to one of the best value DACs in the world
  • Automatically detects impedance for improved performance with a variety of headphones
  • Can handle up to PCM384kHz/32bit and DSD512
  • Optimizes power consumption to prevent premature phone battery drainage
  • USB-C input and 3.5mm headphone output
Questyle m12i closeup sitting on vinyl record stack

Mobile Headphone Amplifier with DAC

At the 2024 CES exhibition, Questyle unveiled its 2nd Generation popular mobile headphone amplifier with the DAC m12i.

Following the success of the 1st Generation M12, M12i also features high-performance audio signal processing. It breaks through the limitations of integrated audio circuits in phones in terms of technology, cost, and size. With Questyle's unique Current Mode Amplification paired with the ESS flagship USB DAC chip, it allows users to fully enjoy lossless audio content from streaming platforms with traditional HiFi headphones, ensuring the best audio experience.

Hardcore Technological Aesthetics

The design of the Kunlun glass window coupled with the exquisite craftsmanship of the PCD, presents the critical elements of signal processing and technological aesthetics.

Questyle M12i x2 front and rear highlighting glass window and internal PCB

Apple MFi Certified for Guaranteed Performance and Compatbility

The "i" in M12i indicates that it has been certified by Apple's MFi. MFi certification ensures perfect support for iPhone/iPad and seamless integration into the Apple ecosystem. It complies with Apple's stringent requirements for external devices in terms of power consumption and compatibility, avoiding the risk of damage to phones and systems from arbitrary device pairings.

Patented Low Power Consumption SiP Current Mode Amplifier

Questyle's exclusive patented "Current Mode" amplifier technology is the fundamental hardware that sets Questyle apart from other amps. As the engine of the headphone system, the amplifier has a crucial impact on sound quality. Thanks to the independently development CMA module, the M12i is not constrained by the power limitations of op-amps chips. It has ultra-low distortion of 0.0003% and extremely high current output capabilitiy. Thanks to the patented Current Mode amplification and the use of TOREX's efficient power management system, it features high-performance and low-power consumption. Hence, it lowers the risks of overheating or interruptions in the case of a long use.

Questyle M12i noise floor graph

Full Compatibility for True Lossless Enjoyment

During development, Questyle Labs conducted extensive testing and targeted optimization for M12i's compatibility with mainstream smartphones and tablets. It managed to achieve high compatibility with iOS, HarmonyOS, and Android versions 5.1 and above. As for PC apps, it supports Windows 10 and above, and macOS. As a result, HiFi headphone users can fully enjoy lossless audio content from streaming platforms anytime, anywhere.

apps on multiple phones highlighting OS and streaming badges

Smart Impedance Matching

When headphones are plugged into M12i, the built-in smart impedance detection system automatically identifies the headphone impedance and adpats accordingly – much like an automatic transmission in a car. Upon detecting the insertion of headphones, M12i instantly activates working mode, recognizing and configuring the corresponding gain for the connected headphones. When the gain light is illuminated, a single indicator represents low gain, while dual red indicators represent high gain. If M12i is connected as a mobile DAC to HiFi systems, active speakers, etc. it will automatically switch to high-level output, providing sufficient support for HiFi audio systems.

Questyle M12i internal components diagram

Specifications

Compatible Operating Systems

  • Android phones and tablets: Android 5.0 and above
  • PC: Win10 1803 and above
  • Apple cellphone: iOS (You need to buy an OTG cable for Lightning to USB-C)
  • Apple computer: Mac OS

DAC Capability

  • PCM: PCM: 44.1kHz – 384kHz (16/24/32Bit)
  • DSD: DSD64(1Bit 2.8MHz) , DSD128(1Bit 5.6MHz), DSD256(1Bit 11.2MHz), DSD512(1Bit 22.4MHz)


Output Power

  • RL=16Ω, Po=19mW
  • RL=32Ω, Po=21mW
  • RL=300Ω, Po=11.97mW
  • Vout(Max)=1.895Vrms

Frequency Response & THD

  • Frequency Response: ±0.1dB (20Hz-20kHz)
  • THD+N: 0.0003%
  • DAC: ESS flagship USB DAC chip ES9281AC

Appearance

  • Material: CNC machined aluminum
  • Color: Black
  • Size: 61.8mm x 27.2mm x 12mm

In the Box

  • M12i Mobile Headphone Amplifier with DAC
  • USB Type-C to Type-C Cable
  • USB Type-C to Type-A Cable
  • Warranty Card
  • User Manual

Questyle M12i In the Box
