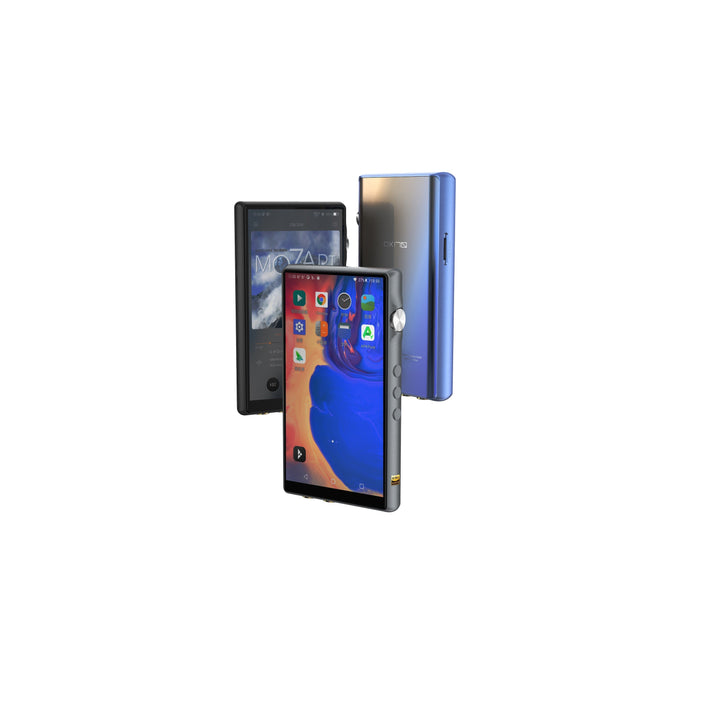

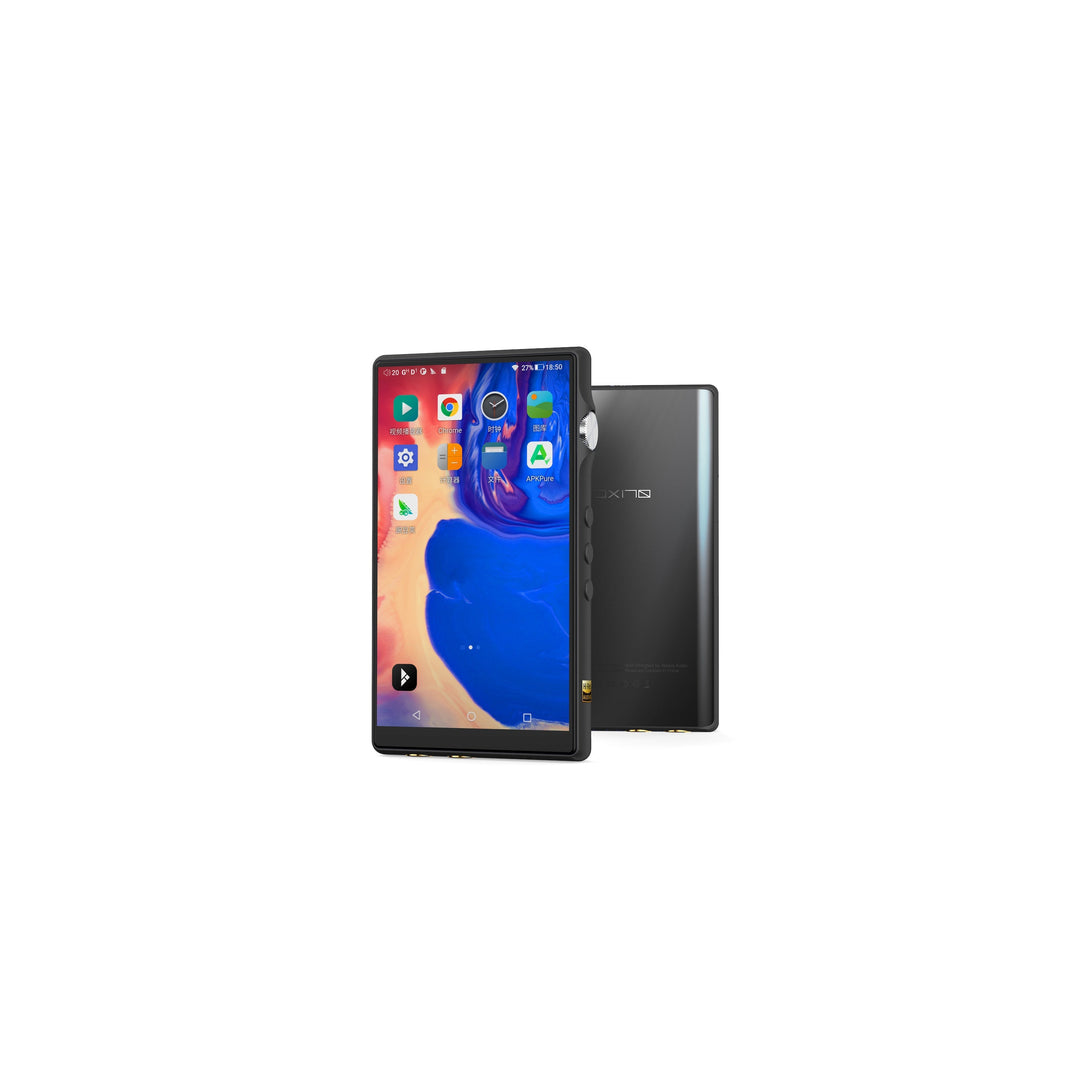

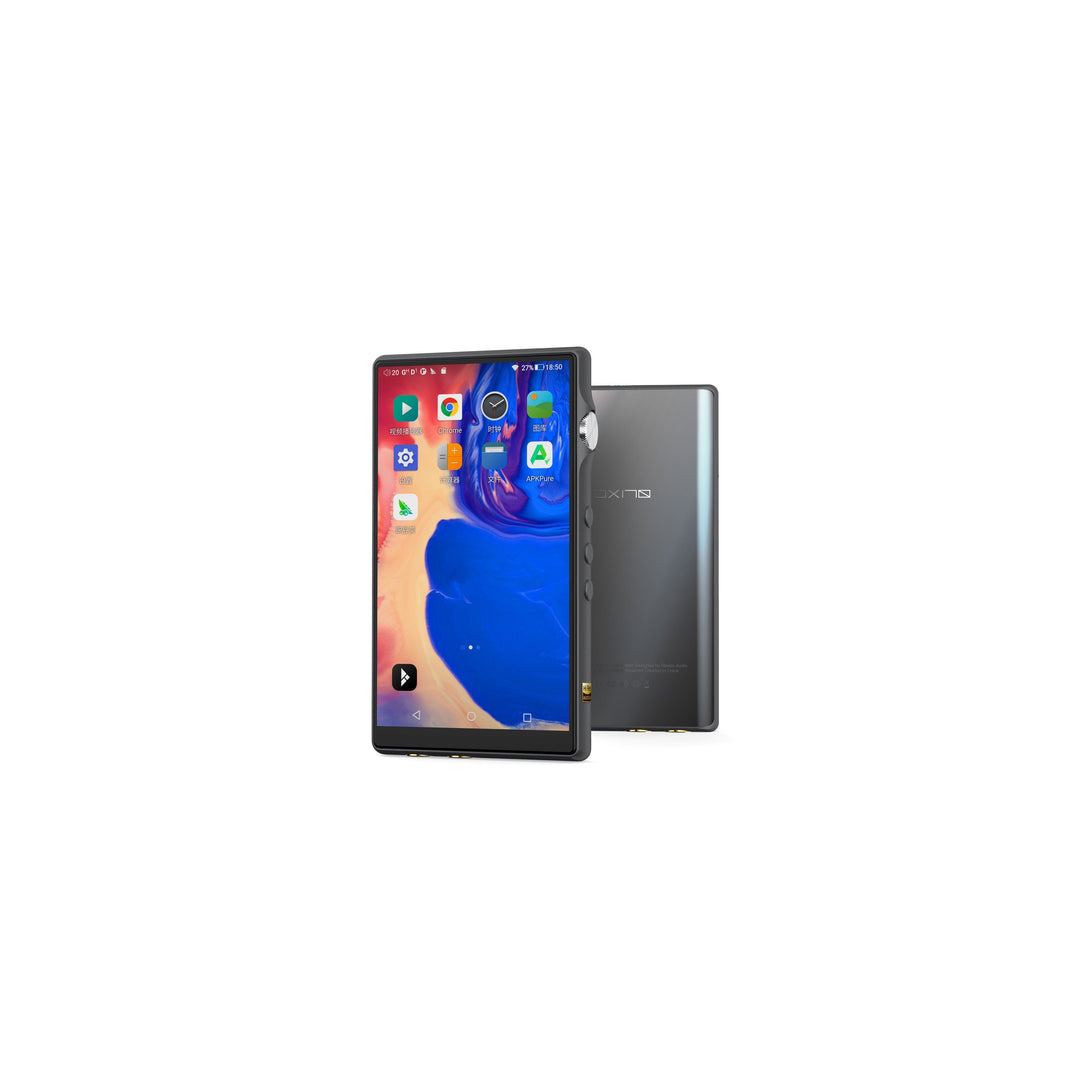

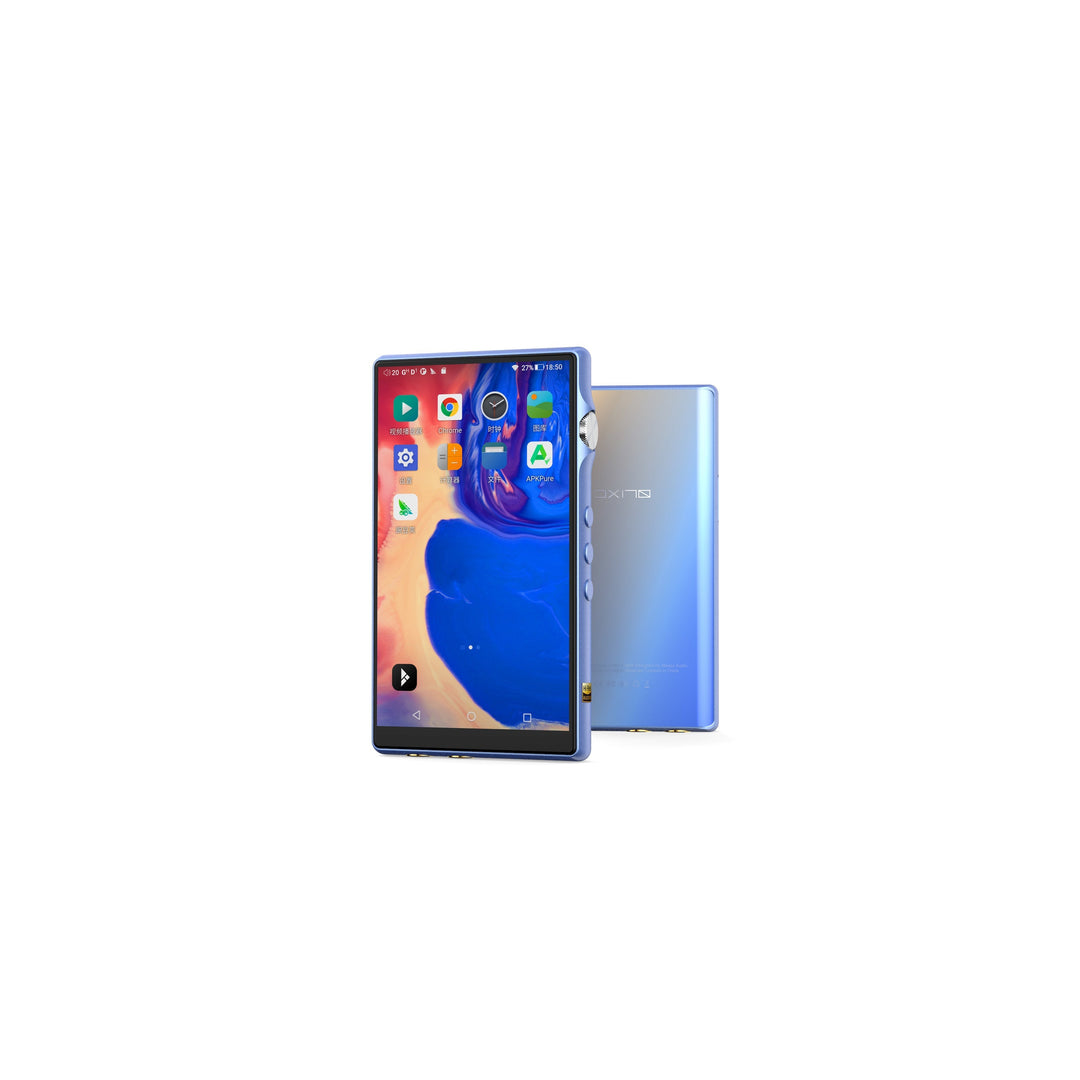

iBasso DX170 | Digital Audio Player
iBasso's latest budget DAP brings HiFi sound at MidFi prices
- FPGA-Master combined with Dual Cirrus-Logic Flagship DACs
- Open, easy to use and smoother Android OS 11
- Support for a wide variety of codecs including MQA 8x
- 3.5mm single-ended/line out/COAX out & 4.4mm balanced outputs
- 5G WiFi and Bluetooth 5.0 ready
|
Bloom's Take With new features like Bluetooth DAC and all around improvements to the sound, DX170 is a clear evolution of iBasso’s DX100 series in both sound and performance. As an all-in-one portable device that can drive a surprising range of headphones well while providing capabilities ranging from a wireless streamer to a S/PDIF transport or a next level iPod, DX170 continues the DX160’s legacy as an incredible little DAP that doesn’t cost a whole lot of money. |
FPGA-Master + Dual Femtosecond NDK Oscillators
The DX170 utilizes the FPGA-Master technology developed by iBasso. The FPGA-Master, as the audio system controller, directly requests audio data from the SoC, and plays a major role in signal reproduction and maintaining signal integrity. It synchronizes and generates all audio clocks at the same time utilizing two NDK femtosecond oscillators to achieve a fully synchronized single clock source. The FPGA and NDK oscillators also reduce jitter to an extremely low level, building a clean digital audio signal.
Cirrus CS43131 (x2)
Dual Cirrus Logic flagship CS43131 DAC chips are used. With an exclusive OPAMP+BUF amplification after the CS43131, the DX170 brings out its strengths while retaining the CS43131's transparency and exquisiteness.
The New Generation RK SoC
With the advanced process technology of the RK3566, the system response is significantly improved. The AnTuTu score now reaches 100,000, far exceeding the Qualcomm 430/425 platform commonly used by players of the same price range. The user experience is greatly improved and enhanced.
Sharp 1080P Full Screen
- 16.7 million colors
- 445ppi retina display
- 480cd/m2 screen brightness
- On-Cell capacitive touch screen
- 2.5D Corning glass panel
- 95% light transmission and sRGB color gamut
A Blacker Background Helps Wonderful Sound Emerge
Low Noise Floor Helps Ensure Musical Enjoyment
Just like being out on a quiet night, you can focus on the world of the music and touch every note. Even in the face of high sensitivity IEMs, the background noise is imperceptible.
Enjoy Your Music with Color and Fashion

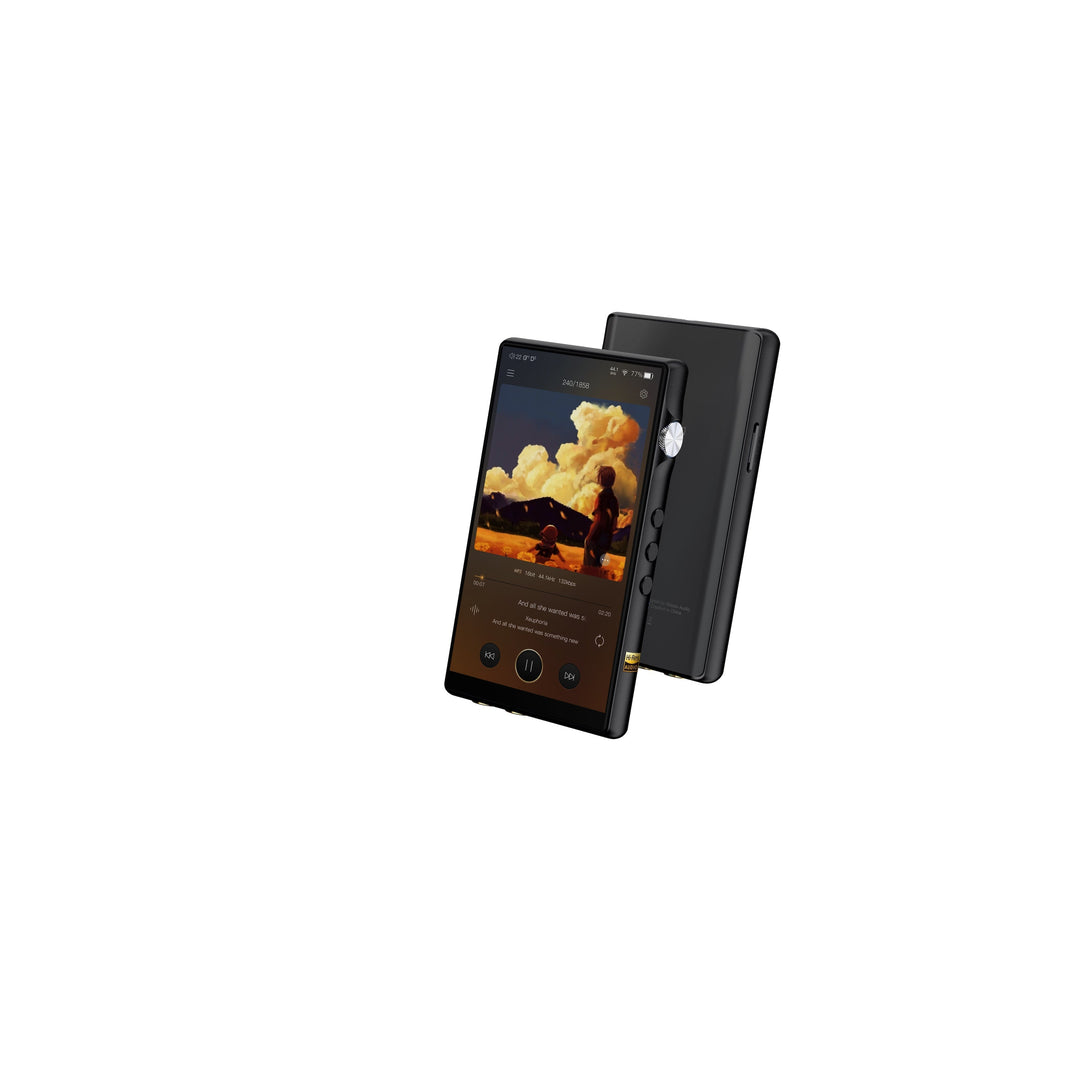

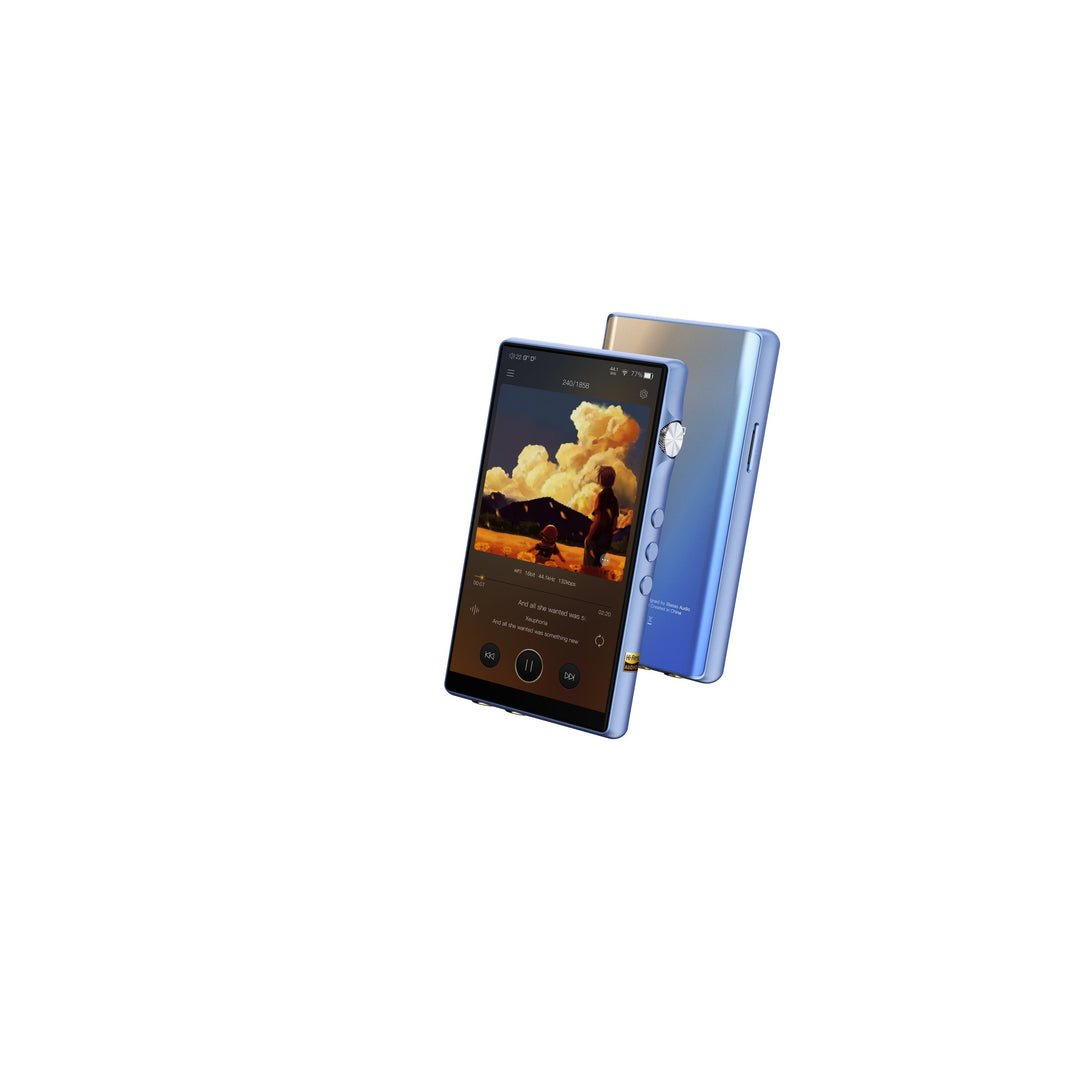

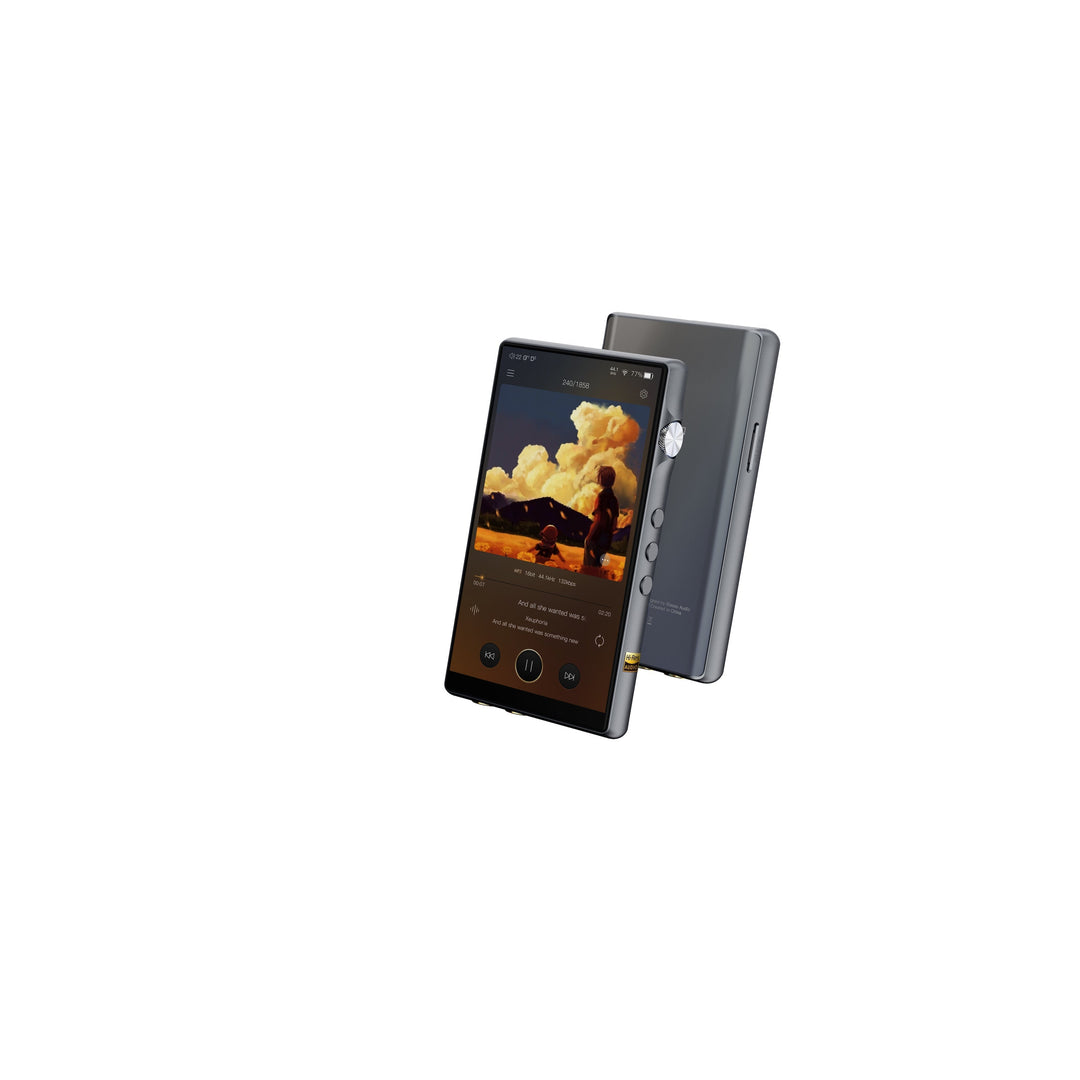

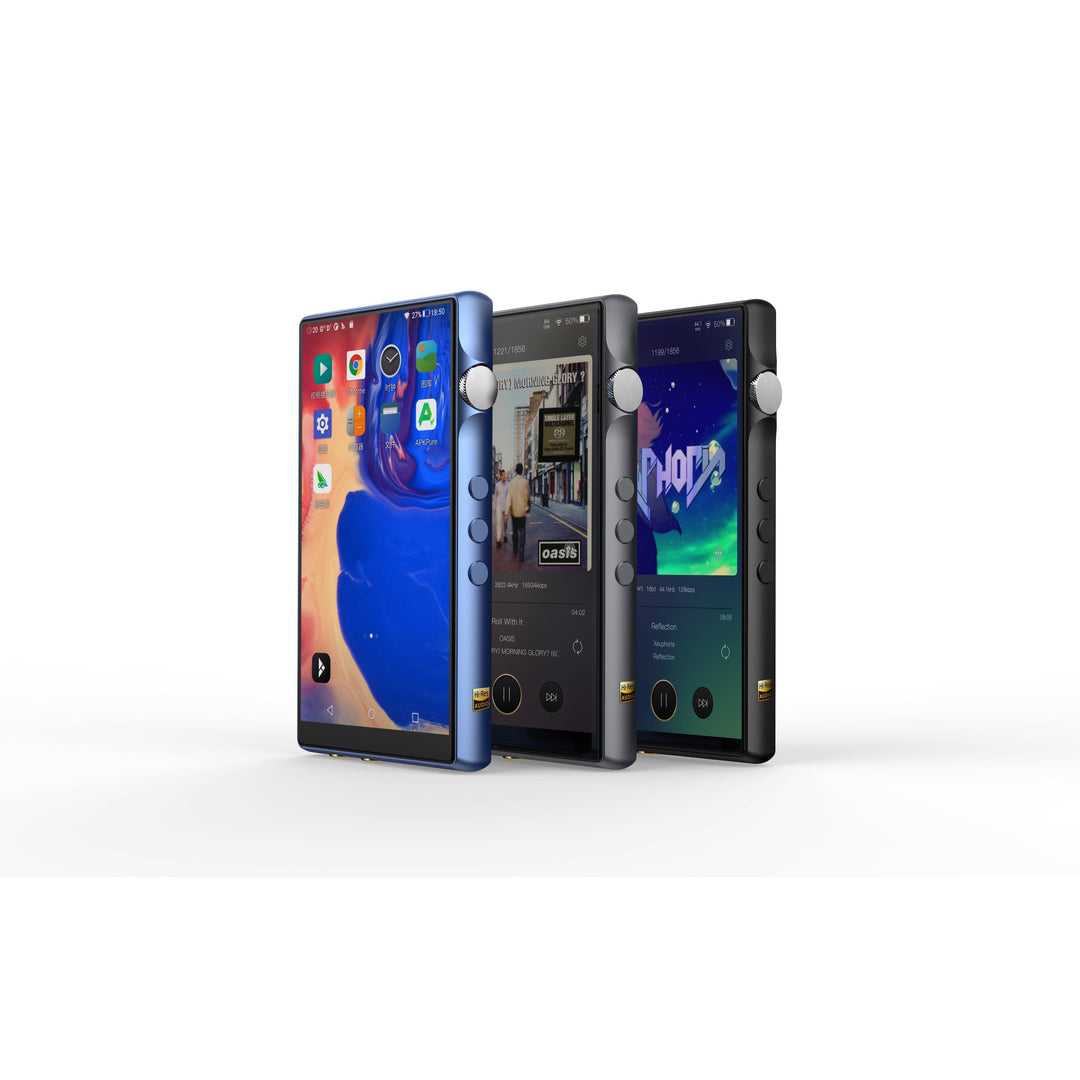

CNC engraved aluminum frame with Black, Grey, or Blue Anodized finishes. With an up-to-date 5 inch 1080p full screen and a curved frosted glass + etched back cover, the visual enjoyment during use is enhanced.
MQA 8X
The DX170 includes MQA technology which enables you to playback MQA audio files and streams, enjoying the sound of the original master recording.
DX170 Features
- Coaxial Output: Coaxial output is driven by FPGA-Master, supports PCM 24bit/384kHz, DoP DSD128x
- 5G WiFi and Bluetooth 5.0: Supports WiFi6, LDAC, and aptX Bluetooth ouput.
- Stronger Internal Shielding: Customized silicon steel alloy shielding cover not only shields the electric field, but also shields the magnetic field.
- Allows for USB DAC Mode: PCD 32bit/384kHz, DoP DSD128x
- 3 Quick Charge Protocols: Support of QC3.0, PD2.0, & MTK PE Plus Quick Charge. Full charge in 1.5 hours, enjoys 11 hours playtime.
Specifications
- OS: Android 11
- DAC: Dual CS43131
-
Outputs
- 3.5mm single-ended / Line Out / COAX
- 4.4mm Balanced
- USB
- Screen: Sharp 5.0" 1920 x 1080 with on-cell capacitive touch
- Sample Rate: PCM 8kHz-384kHz (8/16/24/32 bits)
- Native DSD: DSD64/128/256
- SoC: RK3566
- RAM: 2GB
- ROM / HD: 32GB
- Micro SD: Supports SDHC and SDXC up to 2TB
- WiFi: 802.11 b/g/n/ac (2.4GHz / 5GHz)
- Bluetooth: 5.0
-
Quick Charge
- QC3.0, PD2.0, MTK PE plus Quick Charge
- Supports 12V and 9V/1.5A Quick Charge
- Compatible with BC1.2 USB Charge
- USB DAC: PCM 8kHz-384kHz (8/16/24/32 bits), DoP DSD DSD64/128
- Audio Formats: MQA, APE, FLAC, WAV, WMA, AAC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, CUE, ISO
- Size: 4.9" x 2.76" x 0.59" (125mm x 70mm x 15mm)
- Weight: 5.82oz (165g)
- Play Time: 11 hours (varies pending resolutions, headphone/IEM loads etc.)
4.4mm Balanced Output
- Output Voltage: 6.4Vrms
- Frequency Response: 10Hz-40kHz +/- 0.15dB
- SNR: 130dB
- THD+N: 0.00022% (no load, 3Vrms, 0.00022% (32Ω load, 3Vrms)
- Crosstalk: -125dB
3.5mm Single Ended Output
- Output Voltage: 3.2Vrms
- Frequency Response: 10Hz-40kHz +/- 0.15dB
- SNR: 125dB
- THD+N: 0.0004% (no load, 2Vrms, 0.0007% (32Ω load, 2Vrms)
- Crosstalk: -115dB
Line Out
- Output Voltage: 3.2Vrms
- Frequency Response: 10Hz-40kHz +/- 0.15dB
- SNR: 125dB
- THD+N: 0.00035% (no load, 2Vrms)
- Crosstalk: -113dB
In the Box
- DX170 DAP
- USB C cable
- TPU case
- Screen Protectors
- Quick Start Guide
- Warranty Card
