EverSolo DMP-A6 Master Edition Gen 2 | Desktop DAC and Streamer

The EverSolo DMP-A6 Master Edition Gen 2 is an All-in-One DAC and Streamer with Upgraded DAC Components for Purer, More Accurate Audio

• Successor to the EverSolo DMP-A6 Master Edition
• Features upgraded Accusilicon Femtosecond oscillators over the standard DMP-A6 with greater noise reduction and improved jitter
• Upgraded OPA1612 op-amp (vs. the OPA1642 in the STD edition) featuring ultra-low noise and low distortion (1KHz 0.000015%)

• Aerospace-grade full aluminum build with luxurious matte texture
• Super-flexible connectivity options with support for direct audio 3rd party apps, popular streaming services, and full appliance control with Eversolo Smart Control app

Exceptional Sound Quality

The Eversolo DMP-A6 Master Edition Gen 2 is a Hi-Fi streamer that seamlessly blends exceptional sound quality with cutting-edge technology. It is more than just an audio device; it is a new way to connect with the world of music. From hardware design to audio processing, every detail of the DMP-A6 Master Edition Gen 2 has been meticulously crafted for audiophiles who seek the ultimate listening experience. It not only meets your listening needs but also transforms each musical journey into a marvelous artistic exploration.

What's New in Gen 2?

The Eversolo DMP-A6 Master Edition Gen 2 introduces several enhancements over the original Master Edition:

Feature Packed

EverSolo EOS Audio Engine
EOS (EverSolo Original-Sampling-Rate Audio Engine) was developed by in-house engineers and enables bit-perfect audio playback that bypasses any Android OS restrictions on which EOS is built.

Dual ES9038Q2M DAC
Two ESS ES9038Q2M DACs are used, and 2 DAC chips = 2 channels for D/A conversion output independently. That equates to effective avoidance of interference between channels, reduction of background noise, better signal-to-noise ratio, and improved dynamic range. The DAC supports DSD512, PCM768@32bit, and MQA decoding.

Master Recording Playback and Decoding
DMP-A6 Master Edition Gen 2 supports a wide range of ultra-high resolution audio formats including DSD, PCM, FLAC, APE and MQA.

Touchscreen for Better UI
Equipped with a 6" LCD touchscreen, DMP-A6 Master Edition Gen 2 provides a simple but exquisite user interface, as well as intuitive touch controls for system settings, music browsing, and third party apps.

DOH Chips for HDMI DSD Multichannel
As a multi-channel streamer, DMP-A6 Master Edition uses DOH processing chips for DSD audio over HDMI. This provides support for raw multi-channel output and DSD to PCM output. The DOH chips also provide a high-precision independent HDMI clock.

Internal M.2 SSD Slot
An M.2 NVME 3.0 2280 SSD slot is built into the DMP-A6 Master Edition Gen 2 so you can install an SSD for music storage without removing the device cover. Capable of up to 4TB capacity, the speed, stability, and silent operation of SSDs make them perfect for local music storage and playback.

Low Ripple, High Performance Power
The newly upgraded linear power supply operates with a noise level below 40uV, delivering a cleaner and more stable power source for the audio circuit.

Rich Selection of Input and Output

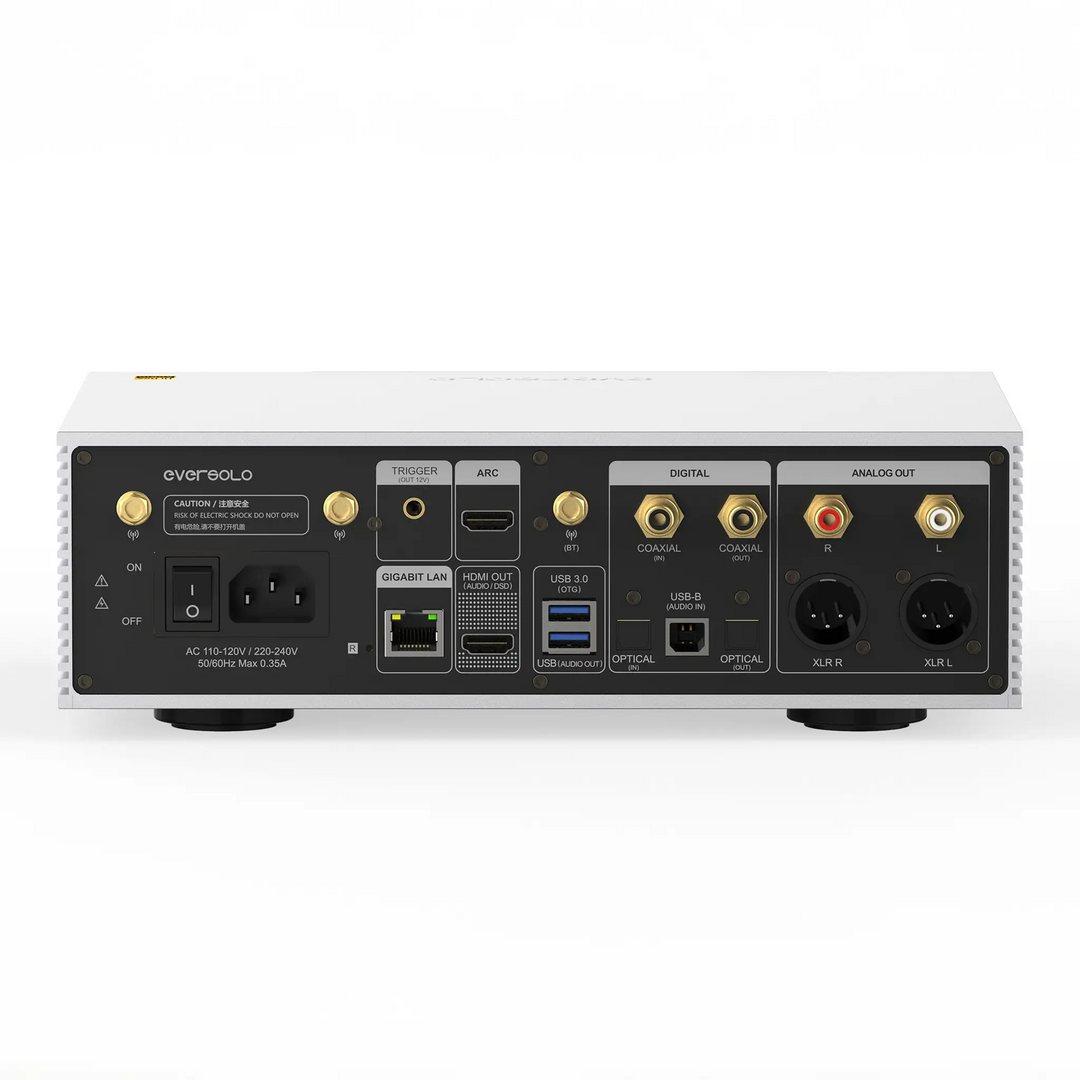

DMP-A6 Master Edition Gen 2 can connect to a variety of audio devices via a number of digital inputs and outputs. You get the classics like USB, Optical, and Coaxial, as well as newer standards like HDMI, Bluetooth, WiFi, and wired ethernet connections. You also get RCA and XLR outputs for connection to active speakers or amplifiers.

3rd Gen XMOS 316 Audio
With the 3rd Gen XMOS 316 audio processor, DMP-A6 Master Edition Gen 2 has faster speed and higher USB bandwidth, ensuring the lossless transmission of Hi-Def audio data. USB port supports DSD512 Native, PCM768 @32bit and MQA full decoding. Optical and Coaxial ports support DSD64 (DoP), PCM192@24Bit.

Ultra-Low Jitter
The clock system has been upgraded with ultra-low noise jitter, making digital audio signals even purer. The combination of ultra-low noise jitter clock oscillators and optimized algorithms reduces clock jitter to an extremely low level, ensuring stable rhythm and pure tonal quality in the music.

OPA1612 I/V Operational Amplifier Network
The DMP-A6 Master Edition Gen 2 adopts the OPA1612 amplifier array, with noise as low as 1.1nV/√Hz and a distortion rate of only 0.000015% at 1kHz. This ensures lossless signal amplification and transmission, significantly enhancing the sound's dynamic range and integrity. It adapts to various output methods, delivering the optimal listening experience.

Fully Balanced Preamp Circuit
DMP-A6 Master Edition Gen 2 analog circuit adopts fully balanced design from DAC chip to the XLR and RCA stereo output and provides better noise immunity and improves channel separation by eliminating shared loops for more consistent signal quality.

Music Services Galore
The DMP-A6 Master Edition Gen 2 incorporates popular music services like TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc. You can take advantage of numerous high-quality online music services and revel in the allure of limitless streaming music along with support for numerous third party APPs for high resolution audio direct output using the original EOS engine. (*The number of installed music services is dependent upon the certification progress and subject to the installed firmware - more music services to come!)

Added WOL (Wake-on-LAN) Feature
The DMP-A6 Master Edition Gen 2 introduces the WOL (Wake-on-LAN) feature, allowing you to wake up the device via the app without manual intervention. This feature makes your music accessible anytime and anywhere, enhancing the convenience of your Hi-Fi experience. *Requires a wired network connection.

Effective Media Management
With its powerful system, you can seamlessly handle editing tasks for both local and network storage like copying, pasting, cutting, and deleting. The configurable USB OTG port adds a personal touch to connectivity, effortlessly bridging your PC and the DMP-A6 Master Edition Gen 2 through a USB cable for hassle-free file copying and management. Sharing with other media playback devices, computers, or mobile devices on the LAN is seamless.

CD Playback and Ripping
The DMP-A6 Master Edition Gen 2 allows for CD playback by connecting an external USB optical disc. CD Rip APP adopts a data validation mechanism and error correction function to losslessly save audio data from CD. The app's algorithm intelligently matches CD album and song names (officially released CDs required), losslessly rips tracks, and automatically generates album and artist info.

Smart Control App
Android + iPhone/iPad control apps are available for the DMP-A6 Master Edition Gen 2. In addition to basic playback control and system settings, they support asynchronous viewing of music library data and menus. Screen mirroring is also supported by installing third-party App.

Specifications

• Model: EverSolo DMP-A6 Master Edition Gen 2
• Display: 6" LCD touchscreen
• Internal Memory: 4GDDR4 +32GeMMC
• CPU: Quad-core ARM Cortex-A55 Pro
• DAC: (x2) ES 9038Q2M
• Audio Processor: Gen 3 XMOS XU316
• Op-amp Chip: OPA1612
• SSD: M.2 NVME 3.0 2280 protocol, up to 4TB
• USB: USB-A (3.0) Out | USB-C: Windows, Mac, Android, IOS, Supports DSD512, PCM 768KHz 32Bit, MQA
• Ethernet: RJ-45 (10/100/1000 GB) | NFS, SMB v1/2/3, UPnP protocols
• WiFi: 2.4G+5G dual band
• Bluetooth: BT 5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
• Playback and DAC Decoding: DSD512, PCM 768KHz 32Bit, MQA
• Music Service: Tidal, Qobuz, HighresAudio, Amazon, WebDAV, UPnP
• Streaming: Roon Ready, Air Play, DLNA, Spotify, Tidal Connect, Qobuz Connect
• Optical/Coaxial In/Out: Supports PCM 192KHz 24Bit, DSD64 Dop, MQA
• HDMI Audio Output: DSD64 Native multi-channel/PCM192KHz multichannel raw output (up to 5.1)
• Control Method: Mobile App, Touch screen control, Tablet App, TRIGGER OUT, WOL
• XLR Output
  • Output level: 5.2V
  • Frequency response: 20Hz~20KHz (±0.15dB)
  • Dynamic range: >128dB
  • SNR: >128dB
  • THD+N: <0.00009% (-120dB) @A-wt
  • Crosstalk: >-125dB
• RCA Output
  • Output level: 2.6V
  • Frequency response: 20Hz~20KHz (±0.2dB)
  • Dynamic range: >125dB
  • SNR: >125dB
  • THD+N: <0.0001%(-119dB)@A-WT
  • Crosstalk: >-124dB
• Power Supply: AC 110~240V 50/60Hz | low noise, high quality switching
• Rated Power: 13W
• Dimensions: 10.6" x 7.4" x 3.5"
• EverSolo 1 Year Warranty

In the Box

• DMP-A6 Master Ed. Gen 2 streamer
• Power cable
• USB cable
• Trigger cable

• User manual
