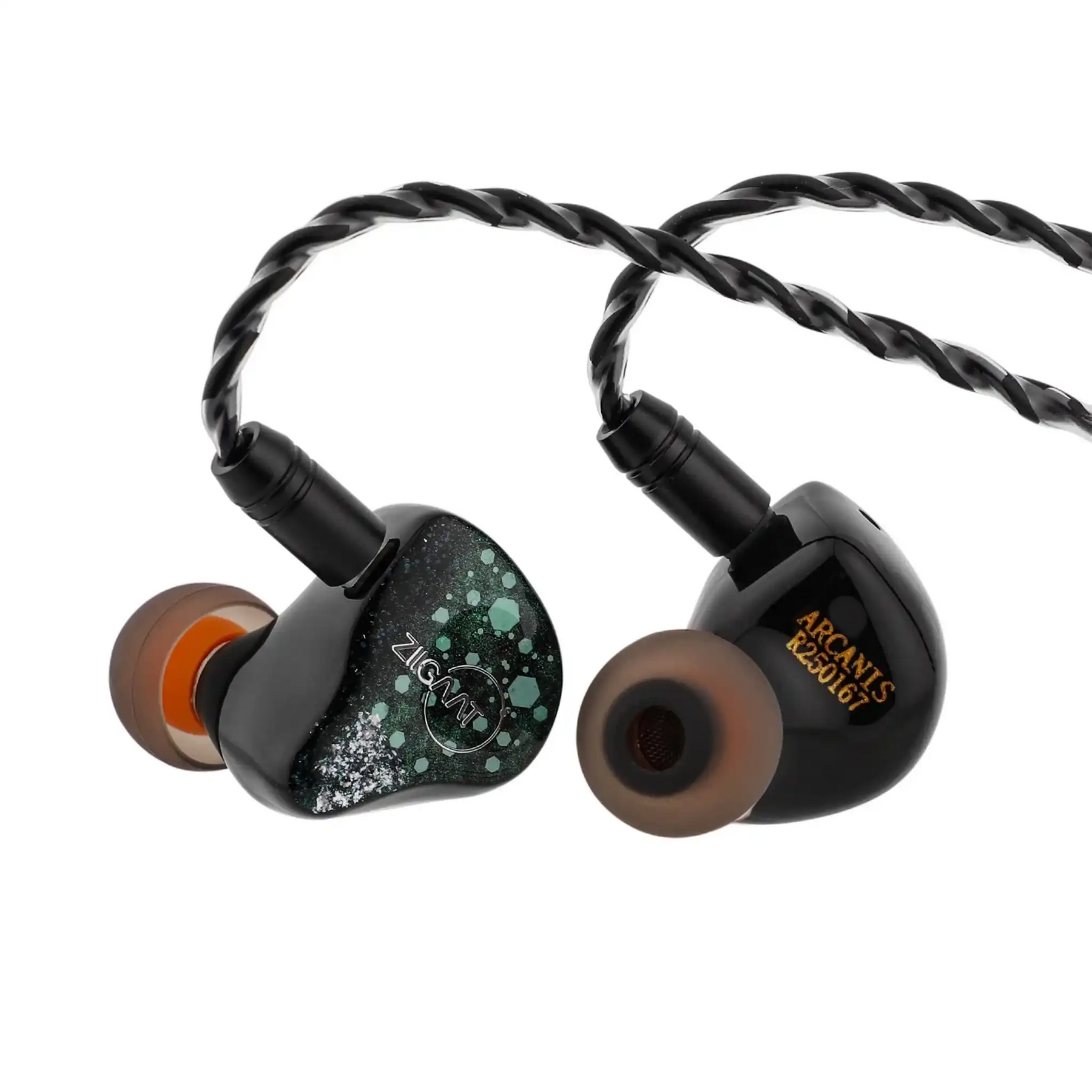

ZiiGaat Arcanis IEMs faceplate front view facing inward whitebox

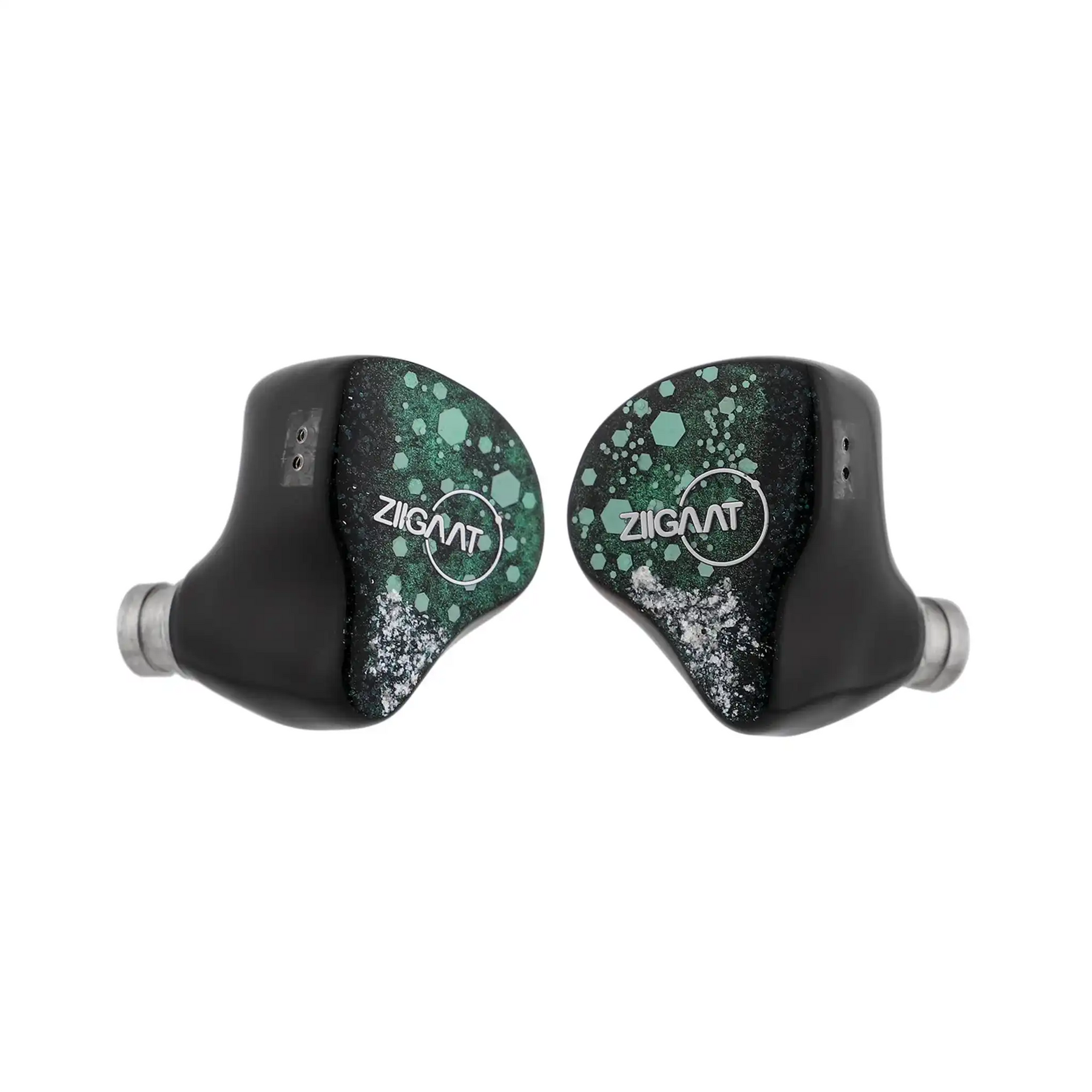

ZiiGaat Arcanis IEMs front and rear view whitebox

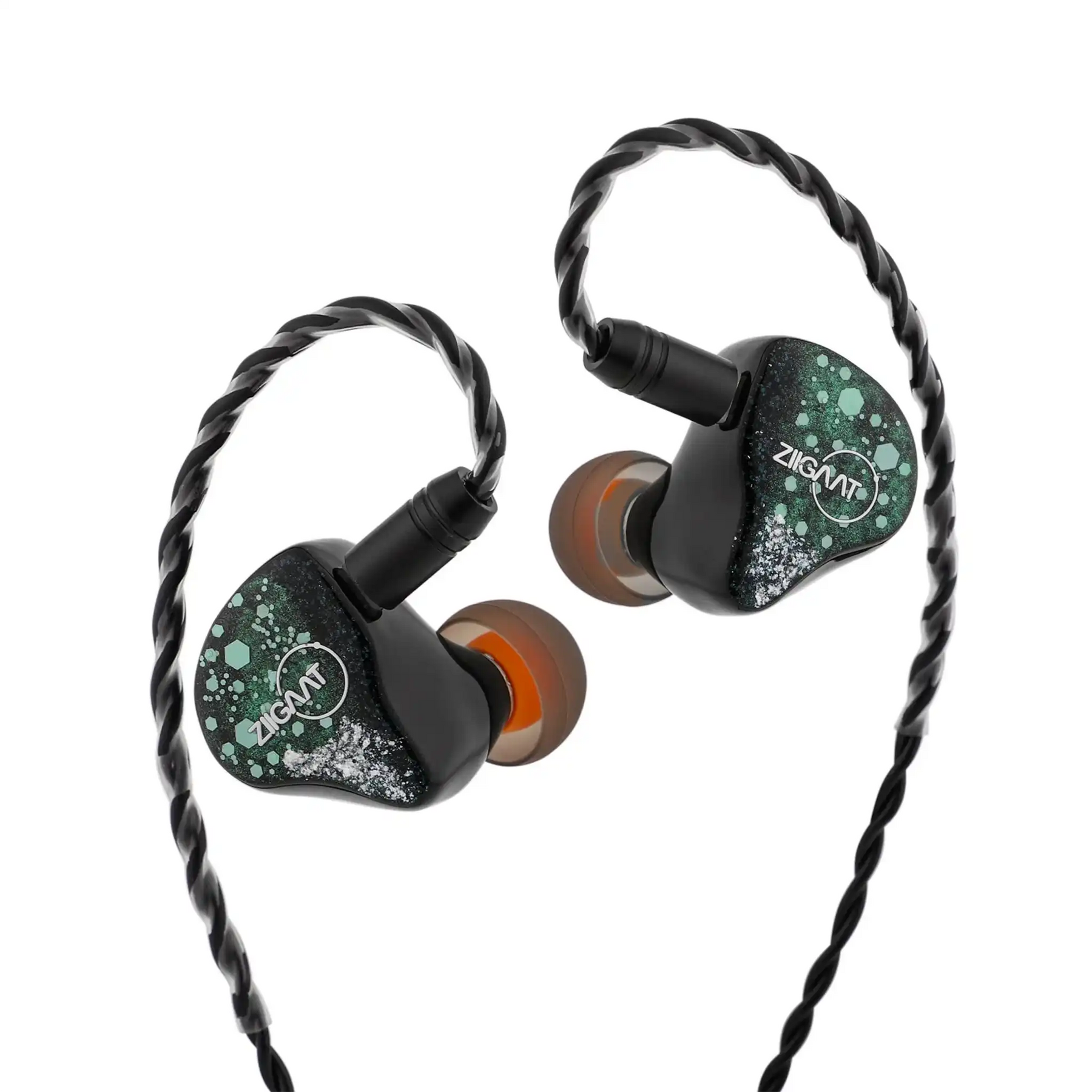

ZiiGaat Arcanis IEMs floating diagonally with eartips on whitebox

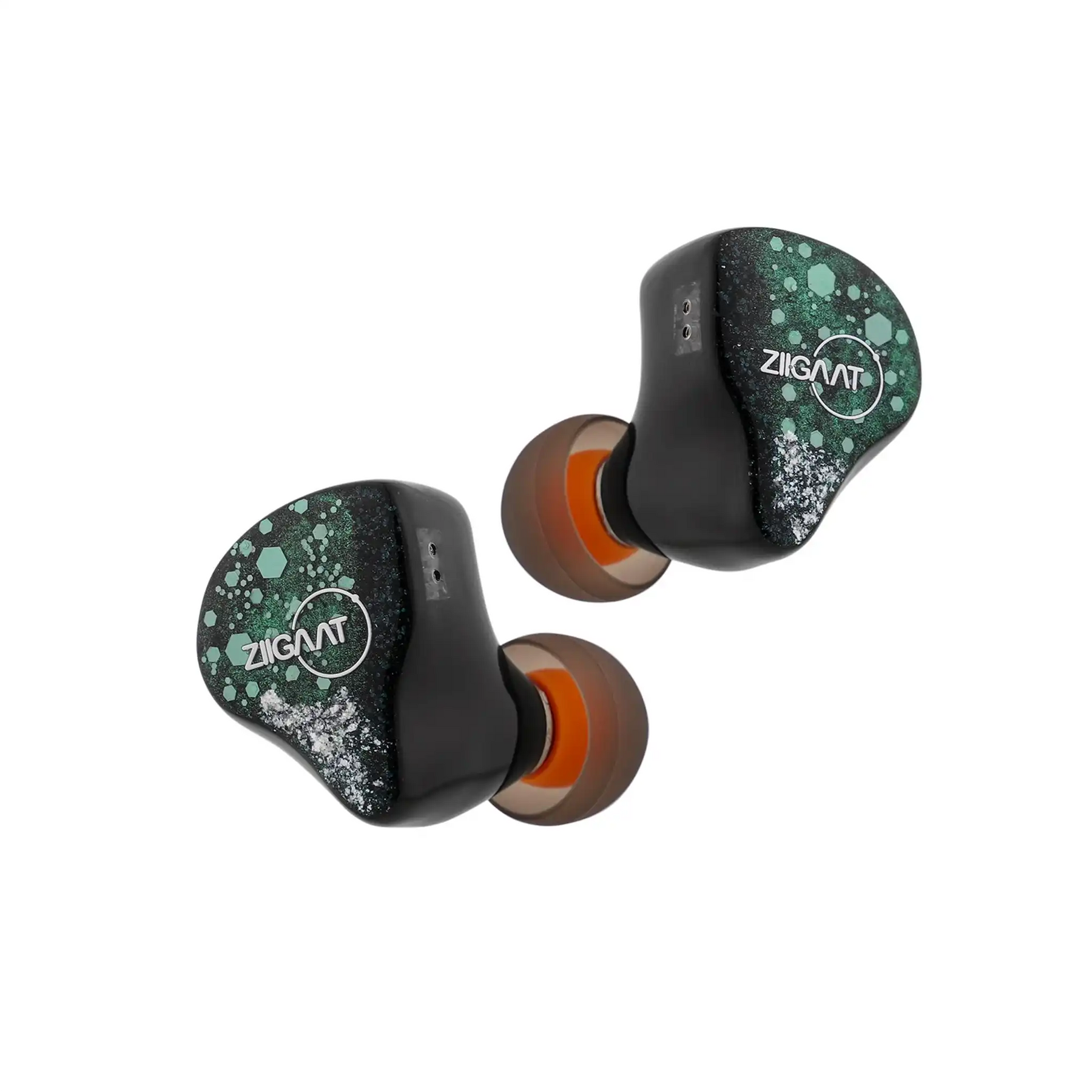

ZiiGaat Arcanis IEMs floating diagonally with eartips and cable attached whitebox

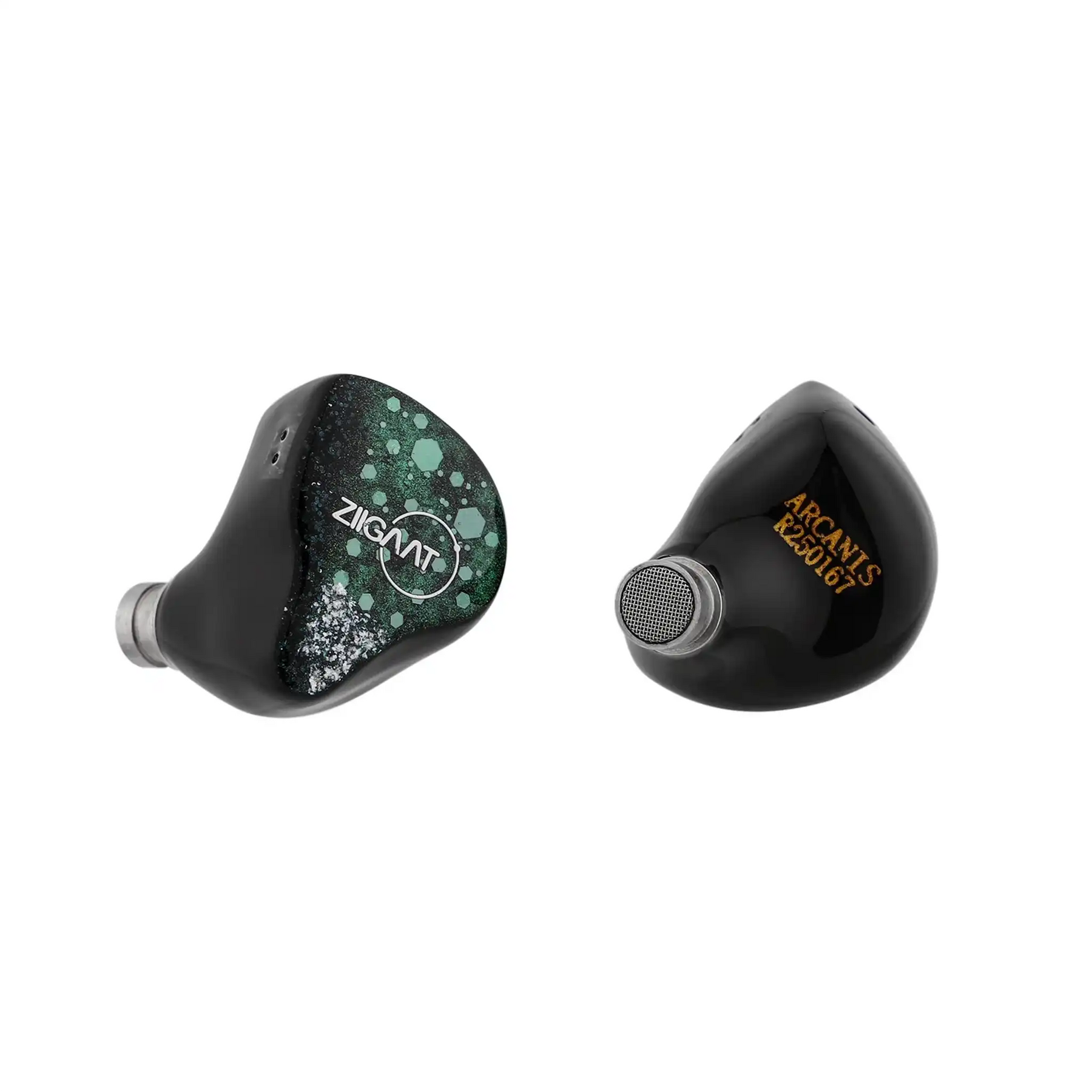

ZiiGaat Arcanis IEMs sitting front and rear view with eartips and cable attached whitebox

ZiiGaat Arcanis | Hybrid Universal IEMs

Regular price$399.00
/

ALT text here

ZiiGaat Arcanis is Engineered for Audio Precision, Delivering Studio-Grade Balanced Tuning and Exceptional Technical Performance for Discerning Ears

  • Hybrid Driver Configuration: (2x) DD + (5x) BA
  • Dual Isobaric dynamic drivers for powerful bass
  • Five Knowles balanced armature drivers for precision
  • 4-way passive crossover provides perfect tonal balance
  • Designed for professional musicians and engineers
  • Read our 2025 ZiiGaat Buyer's Guide

ZiiGaat Arcanis IEM sitting with cable attached on black shelf with vinyl record behind

Dual Isobaric Subwoofers

The Arcanis utilizes dual 10mm dynamic drivers to deliver true subwoofer-like bass. The two drivers are arranged in an isobaric configuration to maximize output and efficiency while reducing distortion. With a powerful 9dB output at 20Hz, the 2DD system delivers excellent rumble and texture in the lows while remaining clean and focused.

5 Balanced Armature Drivers

The midrange and treble of the Arcanis are powered by 5 genuine American-made Knowles balanced armature drivers. Two Knowles 32873 drivers are arranged to deliver focused low-mid range integration between the dynamic drivers and the rest of the frequency spectrum.

Two full-ranged Knowles 29689 drivers are used to drive the mid-treble range, while a single high-efficiency Knowles 33518 tweeter provides crystal clear upper treble details. By utilizing multiple balanced armature drivers targeting specific frequency bandwidths, the Arcanis is able to increase output at lower distortion thresholds, thereby improving the audio resolution.

ZiiGaat Arcanis IEM sitting in right ear of model head

Precision Tuning

The Arcanis has been engineered with a 4-way passive crossover network to specify each driver group to their respective frequencies. The result is a professional tonal balance with an independent subwoofer response that cuts pristinely at 250Hz, a completely flat midrange that is free from any bloat or coloring, and an exceptionally natural treble curvature. The Arcanis is perfect for professional musicians and engineers, as well as audiophiles who want the most accurate audio playback.

Hand Assembled Quality

Each Arcanis unit is constructed from 3D printed medical-grade resin. The faceplates are individually hand painted and paired before assembly. Each unit is hand assembled, paired, and undergoes an individual QC process to check the sound, craftsmanship, and packaging.

Specifications

  • Driver:
    • Dual 10mm PET
    • (2x) Knowles 29689
    • (2x) Knowles 32873
    • Knowles 33518
  • Sensitivity: 106dB
  • THD: 0.42%
  • Impedance: 12Ω
  • ZiiGaat 1 Year Warranty

In the Box

  • ZiiGaat Arcanis
  • User manual
  • Eartips
  • Cable
  • Case

ZiiGaat Arcanis in the box
