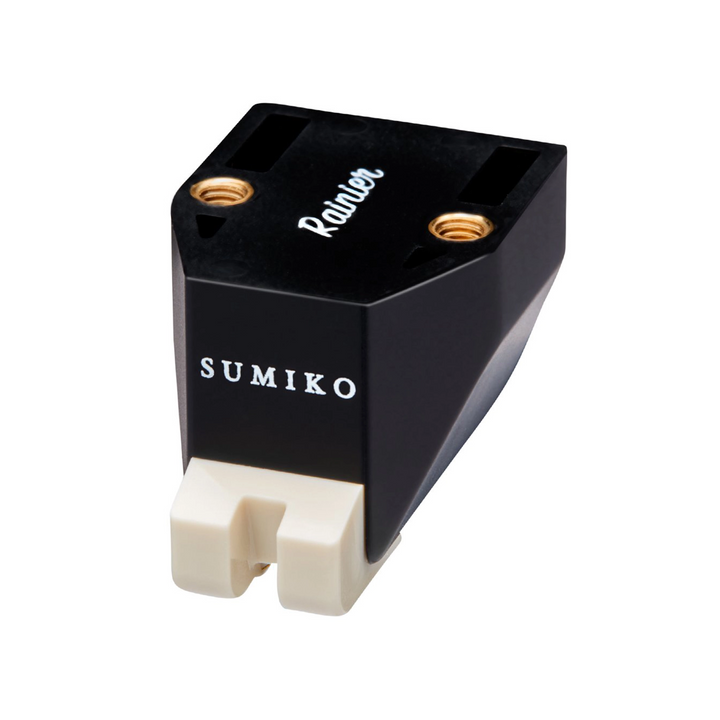

Sumiko's Rainier Moving Magnet Phono Cartridge Raises the Bar For What You Can Expect of a Fairly-Priced MM Cartridge

• Principle: Moving Magnet
• Resonance-optimized housing
• Effortless, transparent sonics
• Each cartridge handcrafted in Yokohama, Japan

The Latest Oysters

Designed for discerning, value-minded audiophiles, Rainier, Olympia & Moonstone supplement & complement Sumiko's existing range of Oysters. They build upon, enhance & refine the sonic character that listeners worldwide have enjoyed for decades. New innovation in cartridge design addresses the problem of resonance, the things that need to happen around a generator to voice a cartridge with honesty. The housing thusly disperses & dissipates resonance, making way for effortless, transparent sonics that are enlivened with intimate nuance.

The voicing is true to natural harmonics, space around voices & instruments as well as their attack & decay. Unique to these 3 Oysters (not to mention Amethyst), experience a diminutive backdrop that bolsters sonic images with a degree of aptitude reminiscent of moving coil designs.

Upgrade Path

Sumiko's latest range of MM cartridges is comprised of Rainier, Olympia, Moonstone, Wellfleet & Amethyst (not to mention the RS 78 replacement stylus). All styli are physically interchangeable and all cartridge bodies are identical except for Amethyst, which uses an improved anatomy to bolster the performance of the line-contact diamond.

Long & short, you have 2 cartridge bodies & 6 replacement styli to choose from, enabling you to shape sonics to suit your preferences! Such interchangeability can serve Amethyst owners in the way of a backup stylus or as a stylus set aside for certain records (e.g. older and/or damaged records). The choice is yours!

Hand-Crafted in Japan

From Oyster to Reference, each Sumiko phono cartridge is crafted by hand in Yokohama, Japan near the waters where their namesake Oysters dwell. Sumiko has selected by ear the finest materials that combine to deliver performance that has enlightened generations of listeners.

Each design is thoroughly auditioned until perfected. Production is then executed by world-class cartridge makers with a collective eye for precision & quality. The result is a full horizon of cartridges eager to introduce themselves to your analog system.

Specifications

• Weight: 6.5g
• Dimensions: 17.2mm x 18.8mm x 29mm
• Stylus: 0.3 x 0.7mil Elliptical
• Cantilever: Aluminum Pipe
• Coils: High-Purity Copper
• Internal Impedance: 1,130Ω
• Load Impedance: 47kΩ
• Frequency Response: 15Hz-25kHz
• Output: 5.0mV
• Channel Separation: 25dB @ 1kHz
• Channel Balance: 1.5dB @ 1kHz
• Compliance: 10×10-6 cm/dyn @ 100Hz
• Capacitance: 100pF – 200pF
• Vertical Tracking Angle: 25 degrees
• Tracking Force Range: 1.8g - 2.2g
• Recommended Tracking Force: 2.0g

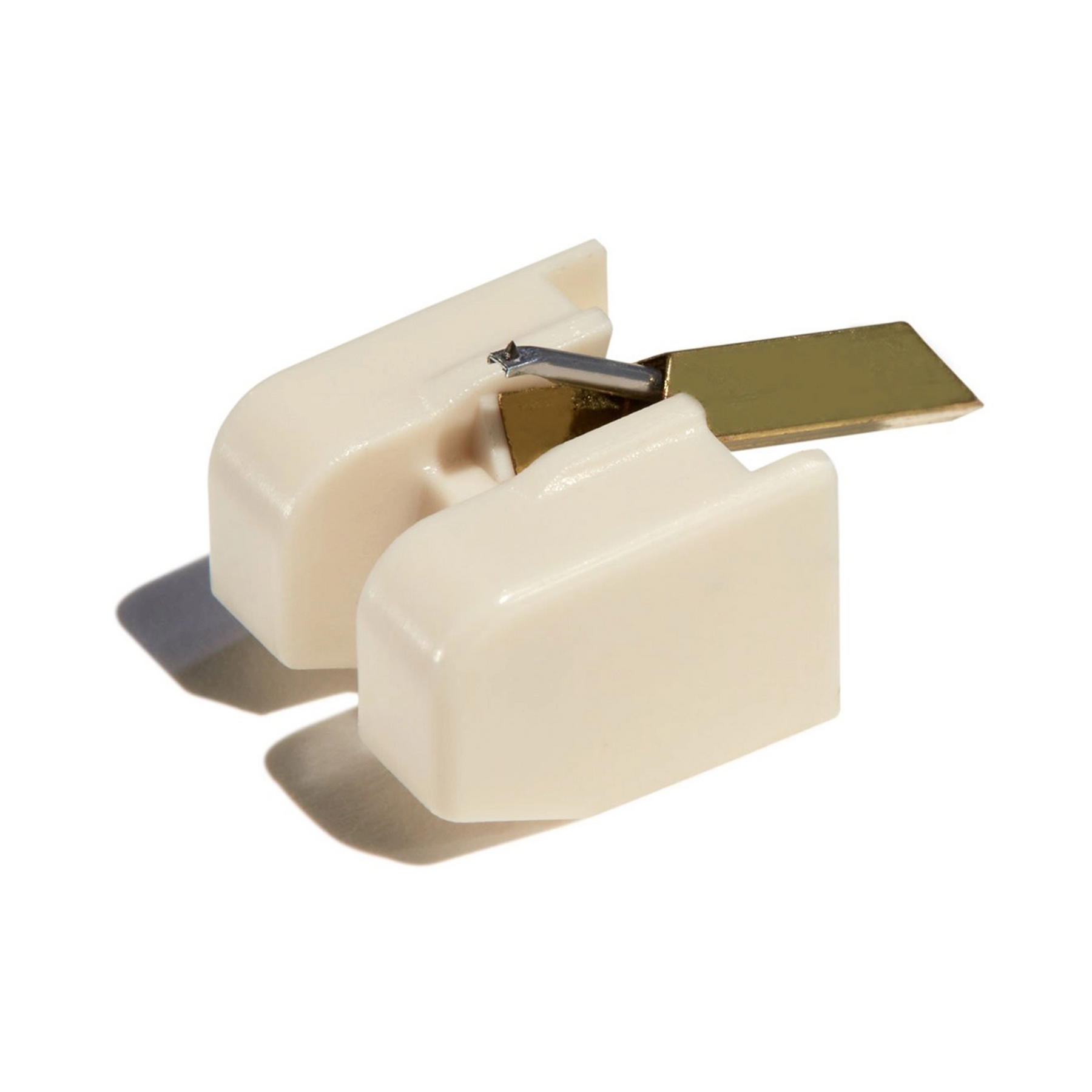

• Replacement Stylus Unit: RS Rainier, RS Olympia or RS Moonstone (Interchangeable)
• Sumiko Cartridge 1 Year Warranty
