Name: FiiO Darkside Pro | Low-Noise Regulated Linear Power Supply
Brand: FiiO
SKU: FIO-DSPRO-SLV
Price: 159.99 USD
Availability: OutOfStock

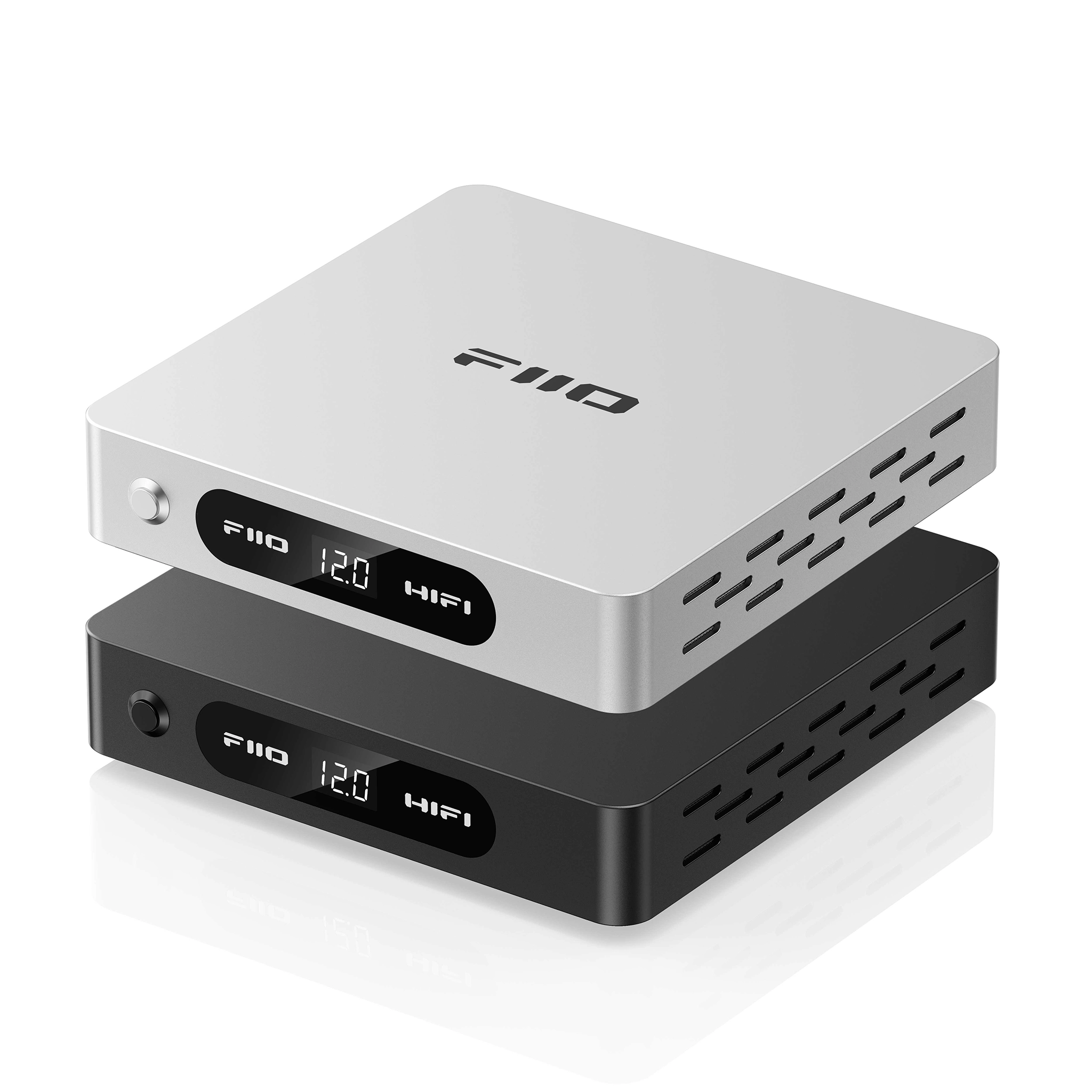

FiiO Darkside Pro x2 silver and black front right 3 quarter whitebox

FiiO Darkside Pro black front right 3 quarter whitebox

FiiO Darkside Pro black rear right 3 quarter whitebox

FiiO Darkside Pro white front right 3 quarter whitebox

FiiO Darkside Pro white rear right 3 quarter whitebox

$159.99

Color

Silver

Black

Black - Open Box

Silver - Open Box

FiiO is Proud to Introduce Their Power Purification Series with the Darkside Pro, Offering an Ultra-Silent, Pitch-Black Background to Let Your Music Shine

Audiophile-Grade 75W Toroidal Transformer
12V/15V Dual Voltage Support, 3A High Current Output
Fully Discrete Voltage Regulator Circuit + Dual-MOSFET Parallel Current Amplification Output
Self-Resetting Fuse Overcurrent Protection
Precision Potentiometer for Voltage Fine-Tuning

75W Toroidal Transformer

Specifically designed for low-noise audio, this toroidal transformer utilizes a grain-oriented silicon steel circular core process for higher efficiency and minimized eddy currents. The seamless, fold-free coil design ensures a uniform magnetic field and minimal magnetic leakage. With a 75W reserve, it effortlessly handles high-dynamic transient demands, delivering solid bass extension and a vividly clear soundstage.

Audiophile-Grade Components

Japanese Shinengen D15XB60 Bridge Rectifier
Low heat generation and high stability minimizes micro-interference caused by current fluctuations for a cleaner audio signal.

5 ELNA Capacitors + 7 Rubycon Filter Capacitors
Effectively filters power supply noise to reveal a crystal-clear sonic foundation.

Mono-Crystalline Silver-Plated Copper DC Cable
Reduces transmission loss and shields against electromagnetic interference (EMI) to enhance audio details.

Fully Discrete NMOS Voltage Regulator Circuit

Dual high-current IRFZ34NPBF MOSFETs are used in a parallel configuration to lower internal resistance. The result is improved dynamic range and assurance that every nuance of audio is faithfully preserved.

Relay-Switched 12V/15V Output

An integrated relay manages the transformer's output voltage to provide a precise match for both 12V and 15V settings. Such a design maximizes power efficiency and significantly reduces heat generation during operation.

Specifications

AC Power Input Voltage: 220~240V/100~120V
DC Power Output Voltage: 12V/15V
DC Power Output Current: 0~3A
DC Power Output Interface: GX16-2 Aviation Socket
Compatible Devices: FiiO K11, K11 R2R, K13 R2R, K15, K19, R9, R7, TT13, K5 Pro series, K7 series, Q7 and all FiiO portable players using Type-C power supply
Dimensions: 7.40" x 7.40" x 1.67"
Weight: 4.8lbs

In the Box

FiiO Darkside Pro
DC power cord
AC power cord
Spare fuse
Quick start guide
Warranty card

[{"id":42199492493387,"title":"Silver","option1":"Silver","option2":null,"option3":null,"sku":"FIO-DSPRO-SLV","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"FiiO Darkside Pro | Low-Noise Regulated Linear Power Supply - Silver","public_title":"Silver","options":["Silver"],"price":15999,"weight":3175,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42199492460619,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"FIO-DSPRO-BLK","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"FiiO Darkside Pro | Low-Noise Regulated Linear Power Supply - Black","public_title":"Black","options":["Black"],"price":15999,"weight":3175,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42275905503307,"title":"Black - Open Box","option1":"Black - Open Box","option2":null,"option3":null,"sku":"FIO-DSPRO-BLK-OB","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"FiiO Darkside Pro | Low-Noise Regulated Linear Power Supply - Black - Open Box","public_title":"Black - Open Box","options":["Black - Open Box"],"price":14399,"weight":3175,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42341138038859,"title":"Silver - Open Box","option1":"Silver - Open Box","option2":null,"option3":null,"sku":"FIO-DSPRO-SLV-OB","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"FiiO Darkside Pro | Low-Noise Regulated Linear Power Supply - Silver - Open Box","public_title":"Silver - Open Box","options":["Silver - Open Box"],"price":14399,"weight":3175,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Fiio Darkside LPS

The power supply was delivered quickly and securely.The first impressions of the LPS was weighed more then expected and was a perfect match for the K-13 I recently purchased. I put it through a workout and while warmed up, it was within expectations for this type of device. The K-13 was dead silent while turning the volume control up beyond safe levels.While expensive for a LPS, the quality and well designed nature of this product makes its cost fair for what you get. In the event you are considering a LPS, this should be on your short list.

Excellent PS, great price and top notch delivery

Maximize your K13!

If you're like me, and are in love with the K13, and also like to squeeze every last bit of performance out of your beloved gear, get this power supply. It matches the aesthetic of the K13 so it looks AMAZING, but more importantly, it improves the sound of the K13 noticeably.

Before you say "A power supply could never change the sound of a DAC!", research how R2R resistor ladders work. They, in fact, DO benefit greatly from ultra clean low-noise linear power supplies, and the K13 is no exception.

More powerful bass, more full mids, and softer treble are what you will get from this. Is it huge? No... Probably a 5% difference. But if you have resolving headphones and/or a nice amp, you will notice it immediately.l and enjoy it every time you listen.

Easily worth the money for the upgrade, peace of mind, and amazing clean look!

First class component

It's HEAVY. It's solid. It's dead quiet. Built like a tank. Super impressed. Pairs well with my Fiio K15.

Its a linear power supply. If you believe that kind of thing will make a meaningful difference than you can expect a high quality product from fiio. I just got it because it looks cool with my k13 (dont stack them btw). Product aside, ordering from bloom was an absolute pleasure. The order arrived a day and a half after I ordered it and included a hand written note and some skittles. Its a small touch but Its given me confidence Bloom is a company that cares for its customers. I will be purchasing from them in the future :)
