Budget-Friendly Portable DAC Dongle

• Cirrus Logic CS43131 Chip
• Microphone and call support
• PCM 32bit/384kHz DSD256
• Aluminum carving shell

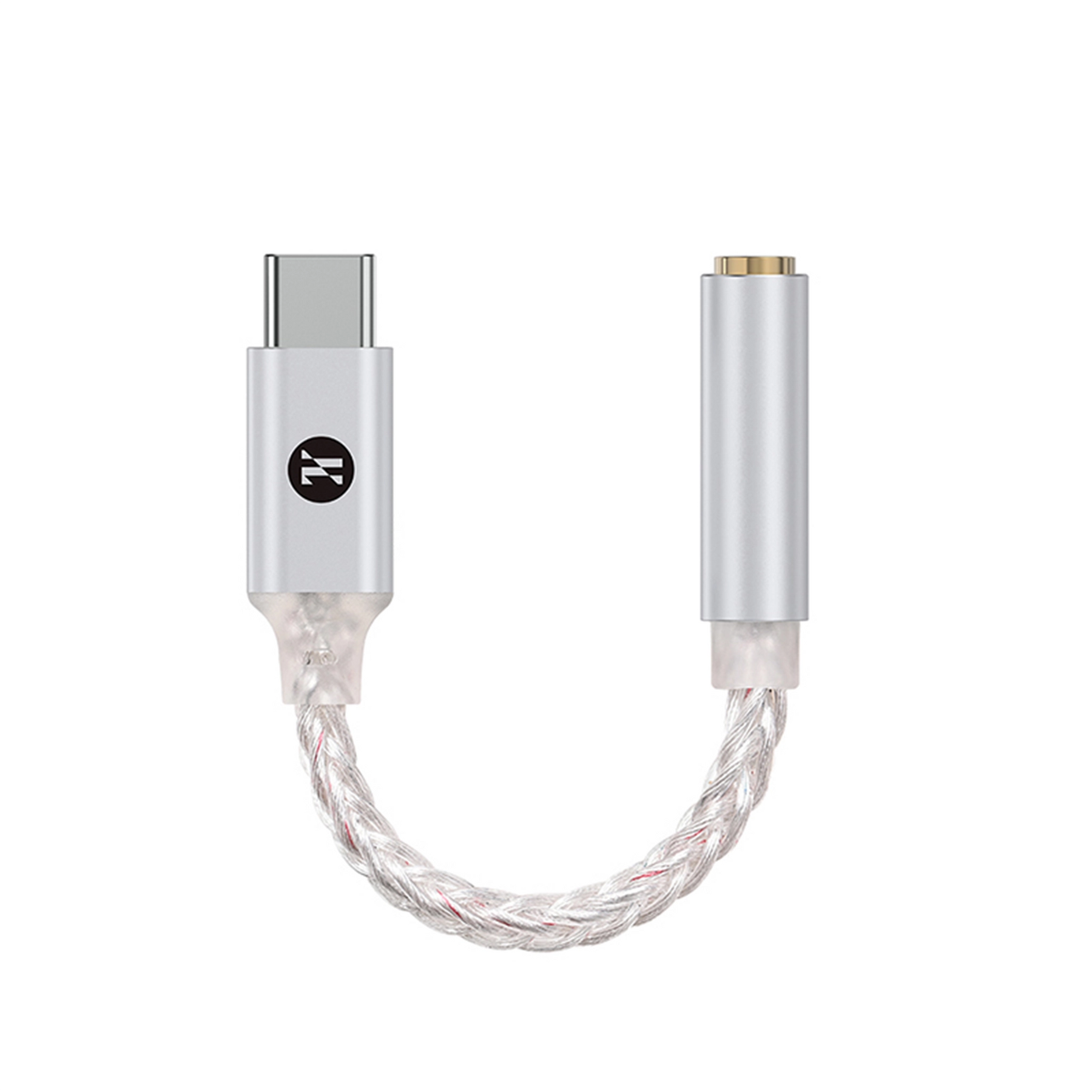

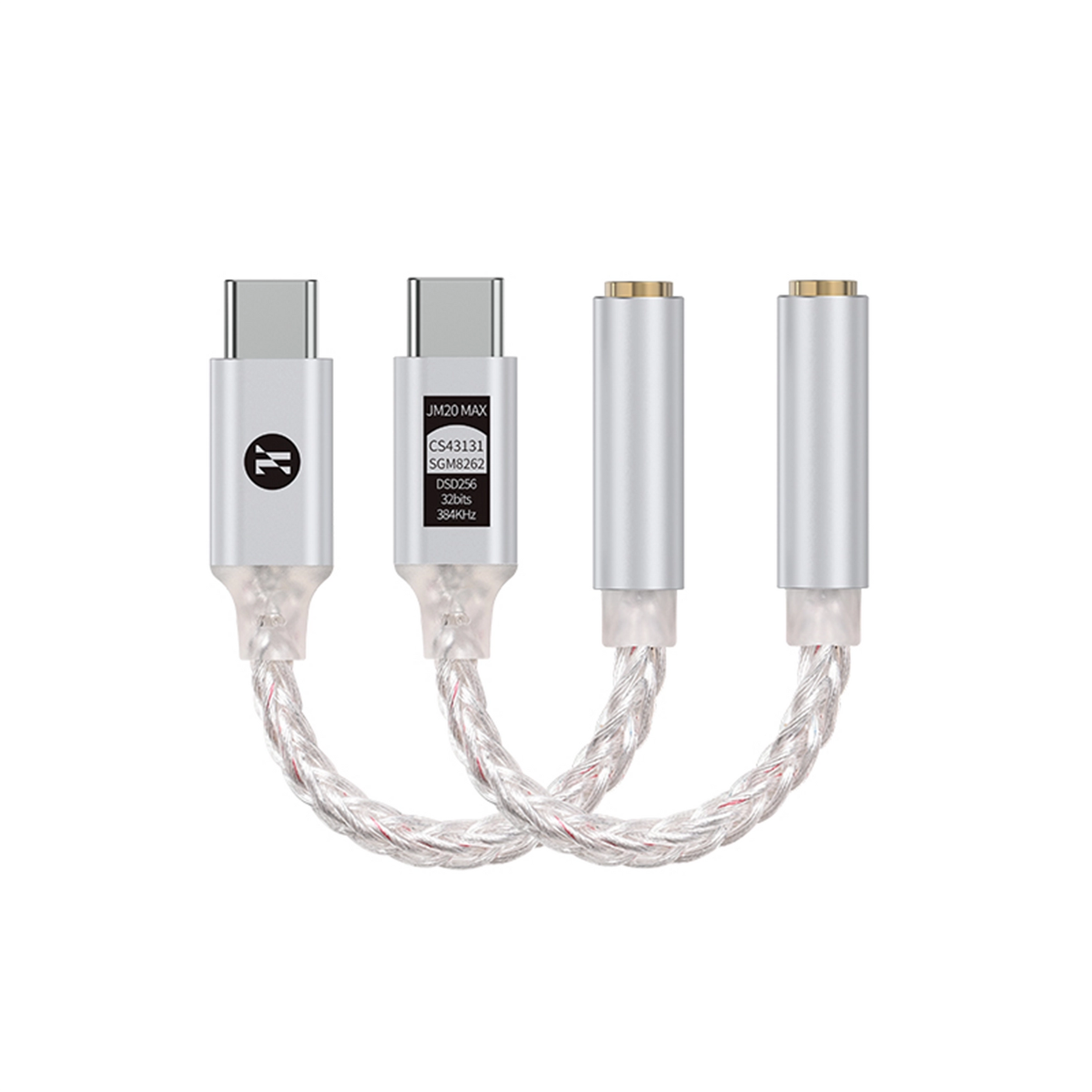

JM20MAX

JM20MAX portable decoding and earmuff integrated machine is equipped with a combination of high-performance CS43131 decoding chip and SGM8262 operational amplifier dual chip. The decodable PCM format supports up to 32bit/384kHz ultra-high resolution audio, and is compatible with various high-resolution audio formats such as DSD64, DSD128 and DSD256. It is more suitable for driving professional audio equipment such as high-impedance headphones, sound boxes or active sound.

Specifications

• DAC Chip: Cirrus Logic CS43131 Chip
• PCM: 32bit/384kHz
• DSD: DSD256
• SNR: >126dB
• Crosstalk: -140dB
• Distortion: -112dB
• Frequency Range: 20Hz-20kHz
• Output Voltage: 195mW@32 ohms, 10.9mW@600 ohms
• Cable: 8 Core Silver-plated
