SS-1 is an Audio-Grade Network Switch Specifically Designed by Matrix Audio for Hi-Fi Streaming Audio Scenarios

• Fully linear design with O-core toroidal transformer and low-noise LDO regulators
• Delivers exceptional signal integrity
• Ultra-low jitter master clock

• Designed for audiophiles seeking cleaner, more stable data flow to their streaming systems

New Territory, New Evolution

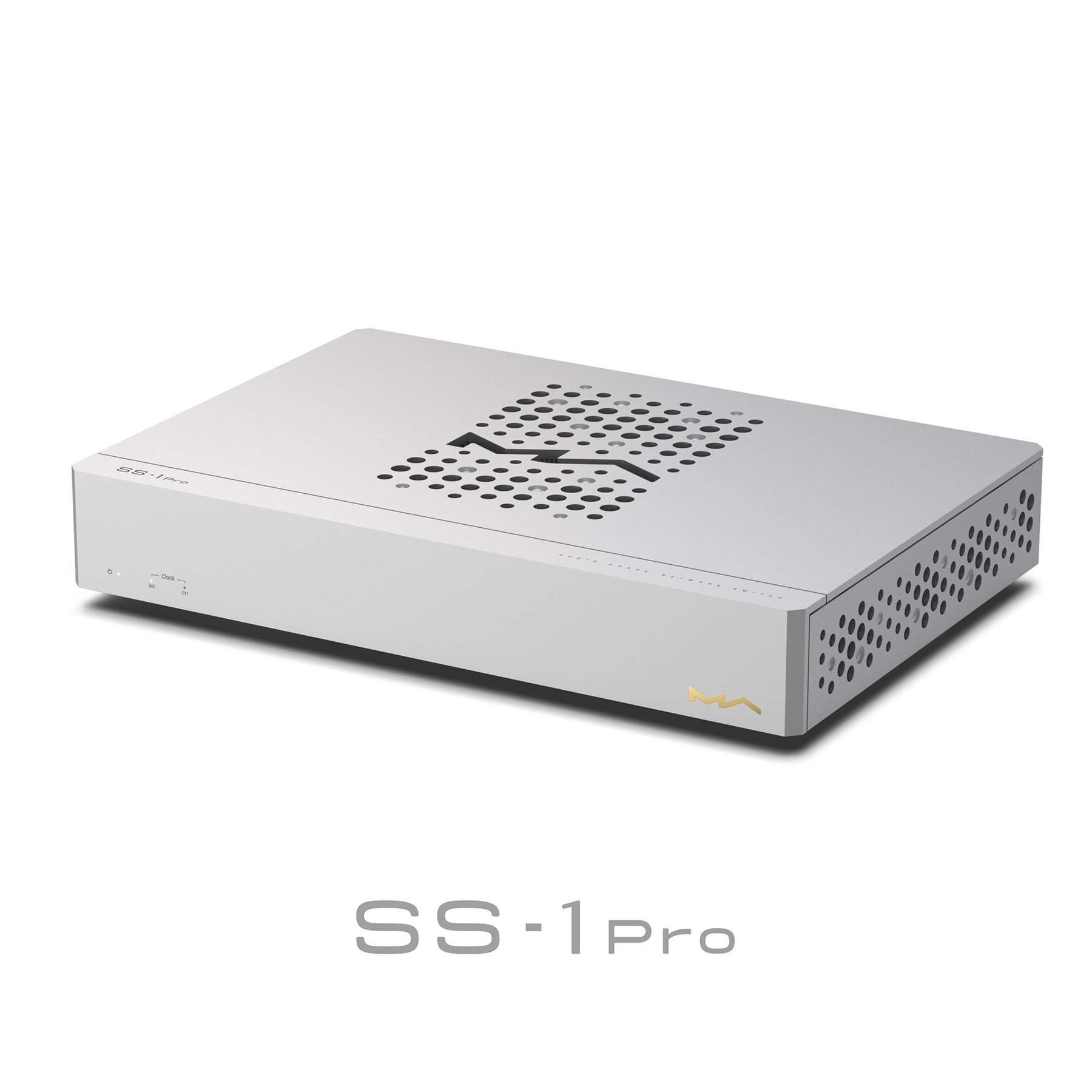

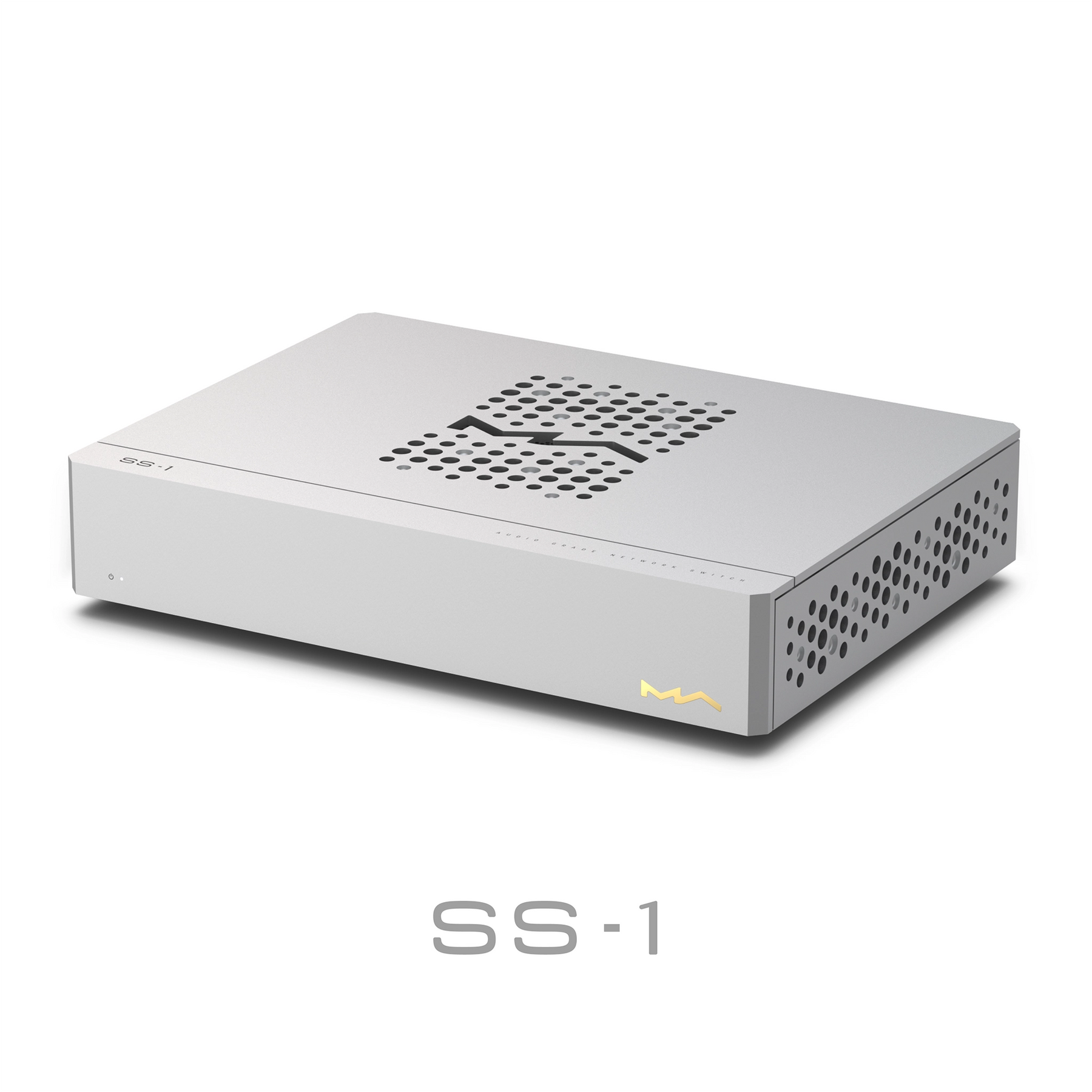

SS-1 Pro/SS-1 is an audio-grade network switch specifically designed by Matrix Audio for Hi-Fi streaming audio scenarios. Unlike traditional network switches, this product is meticulously engineered to meet the requirements of Hi-Fi audio systems. It includes comprehensive enhancements in its power system, clock system, cooling methods and component selection, all focused on ensuring the lossless transmission of high-definition streaming audio.

Higher Speed, Better Performance

Matrix Audio designed their audio-grade network switch with higher-speed performance in mind because faster digital circuits are inherently more stable. Devices built for high-speed signal transmission experience less timing error than those built for lower speeds. As a result, a high-speed device running at a lower speed will perform better than a low-speed device operating at the same rate.

Dual 10Gbps Isolated Ports

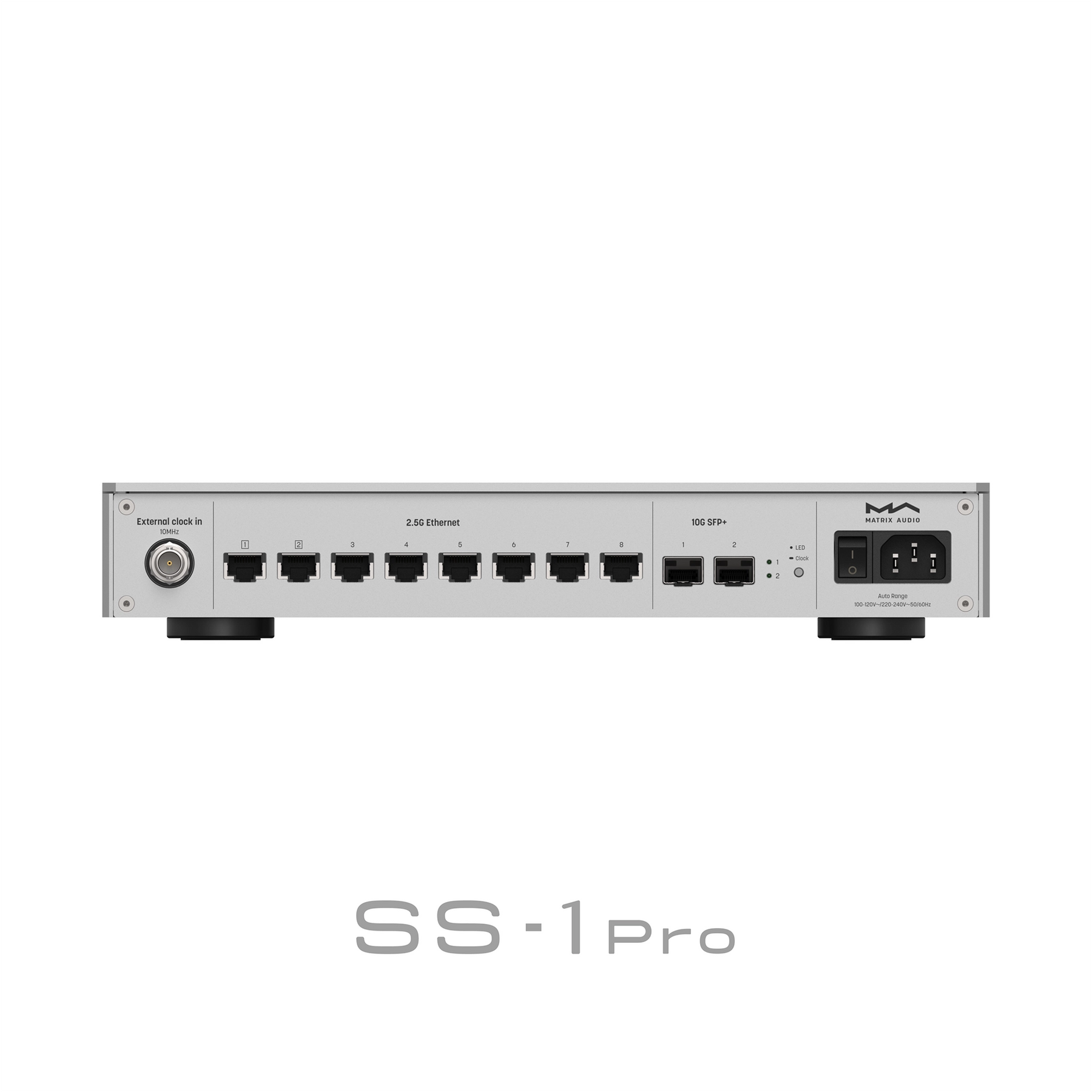

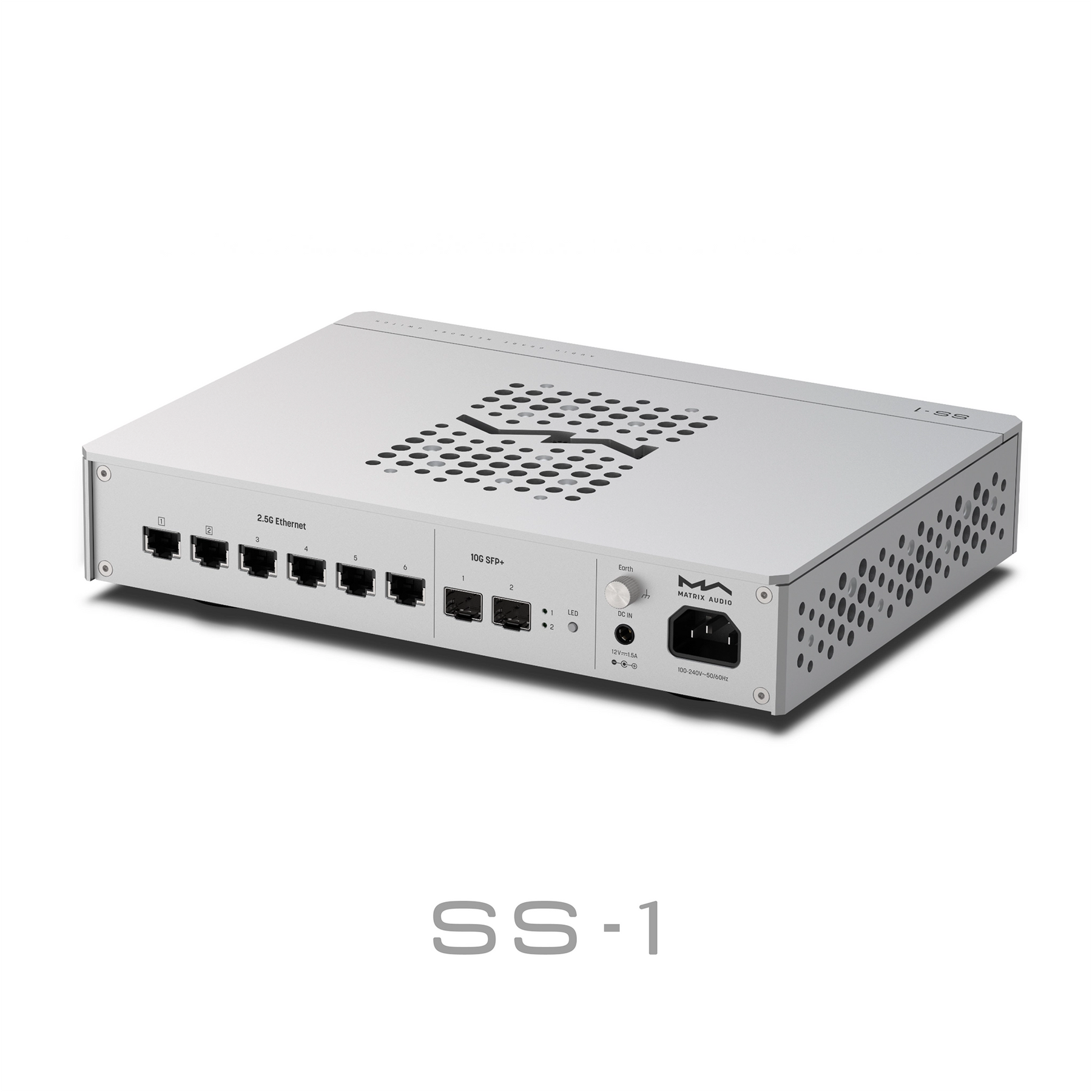

Two SFP/SFP+ ports with up to 10Gbps connection speed allow you to install optical fiber or RJ45 modules according to your needs. This makes it possible to connect both upstream network devices and digital audio players simultaneously through SFP ports, achieving complete electrical isolation between network devices and audio equipment via fiber optic cables. This prevents high-frequency noise or interference from network devices from being transmitted through the ground wire into the audio equipment.

Independent Ethernet Sockets

SS-1 Pro/SS-1 not only have multiple Ethernet ports with speeds up to 2.5Gbps, they also have two low speed ports that work at 100Mbps. The connection speed of audio devices can be reduced by connecting to these ports, to reduce the bit error that may occur during data transmission.

These ports are designed with independent sockets. The wider spacing between the sockets prevents crowding when using high-end cables. Additionally, Matrix Audio uses 10Gbps-grade independent Ethernet transformers and fully shielded Ethernet sockets. Each signal transformer is individually shielded by metal shells, enhancing resistance to radio frequency interference.

External Clock Input + RF Synthesizer

The clock system is critical for digital circuits, and network switches are no exception. It can be likened to a series of high-speed switches that must operate with extreme precision. Inside the SS-1 Pro, this system consists of a femtosecond clock and a high-precision ultralow phase noise RF synthesizer.

The SS-1 Pro supports two clock modes: In internal clock mode, the internal femtosecond clock serves as a reference for the RF synthesizer, which then generates a highly stable, low-phase-noise clock signal for the main controller. In external clock mode, the 10MHz clock signal from an external clock acts as the reference for the RF synthesizer. The DPLL then outputs a synchronized, highly stable, low-phase-noise clock signal to the main controller.

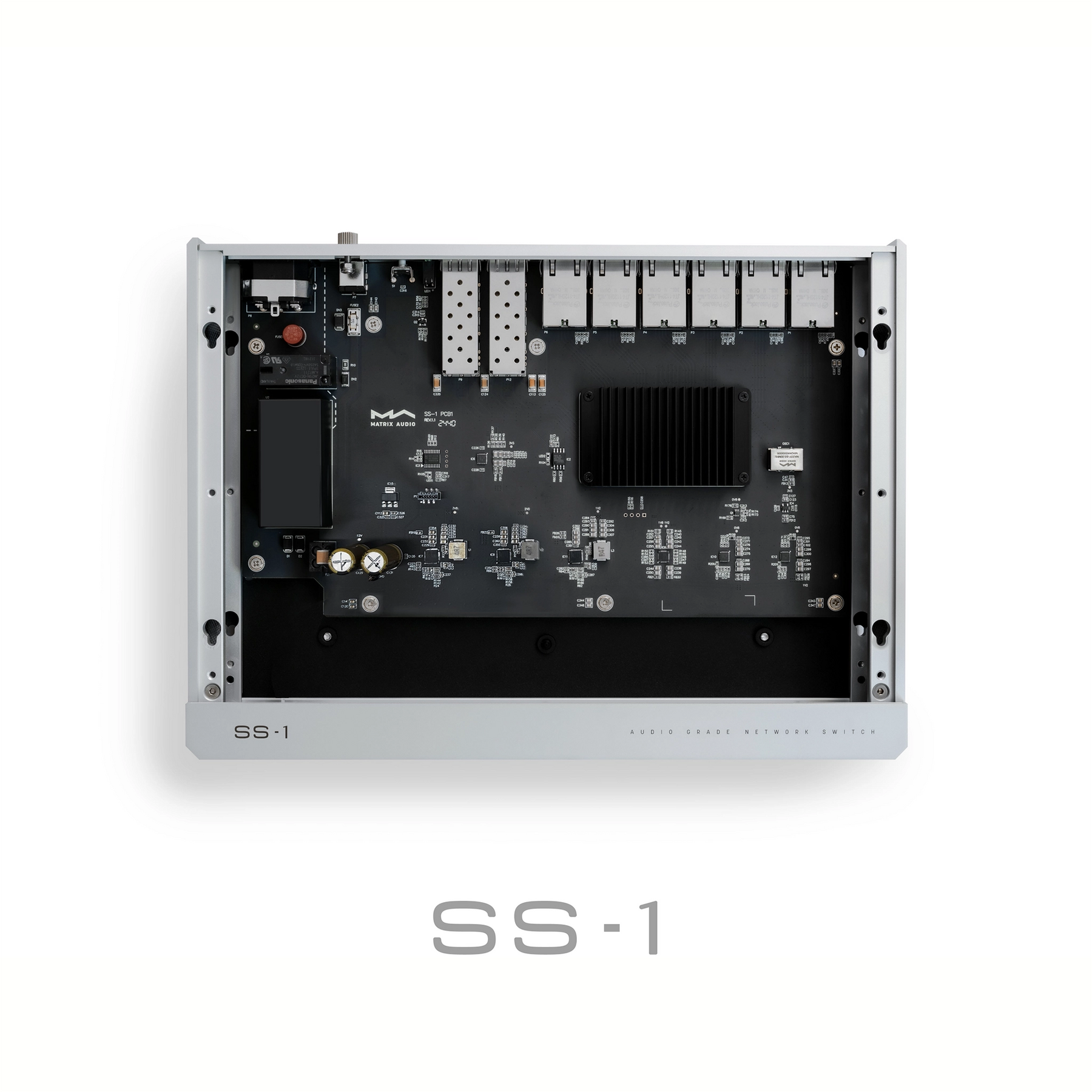

Even though the SS-1 has a simplified clock system design and does not have a RF synthesizer, it still features an ultra-low phase noise femtosecond clock as the reference for the main controller, ensuring exceptional performance.

Linear Power, Silent Cooling

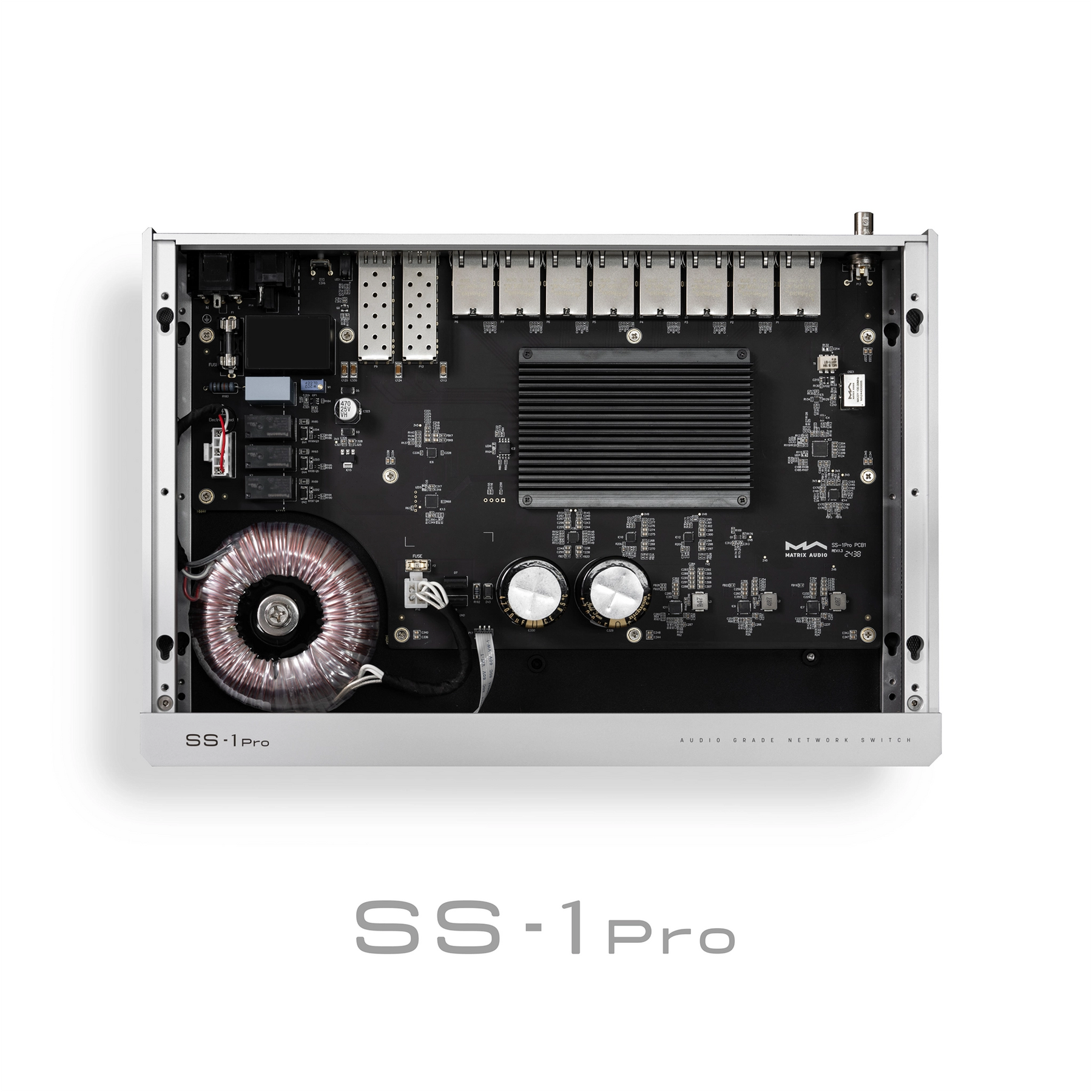

A custom o-core toroidal transformer combined with high-speed Schottky diodes and nearly 10,000 uF audio-grade filtering capacitors forms the first-stage power supply of SS-1 Pro. Up to 6 ultra-low-noise LDO linear power supplies provide clean power to the clock system and the device's main control chip. The large passive heatsink for the main control chip, ensuring it operates without generating any noise.

Optional Upgrade

To ensure upgradability, the SS-1 is equipped with a DC input port, allowing you to connect an external linear power supply to unleash its potential performance. When the DC input is connected, the internal AC input will be disconnected automatically. The external linear power supply provides clean power directly to the femtosecond clock and the main controller through the internal power line noise suppression filter and four ultra-low noise LDO circuits.

Specifications

• Full list of specifications
• Weight
  • SS-1 Pro: 7.50 lbs
  • SS-1: 5.07 lbs
• Dimensions
  • SS-1 Pro: 12.99" x 9.25" x 2.30"
  • SS-1: 11.02" x 8.11" x 2.30"

In the Box

• Matrix Audio SS-1 Pro or SS-1
• Power cable
• User manual
