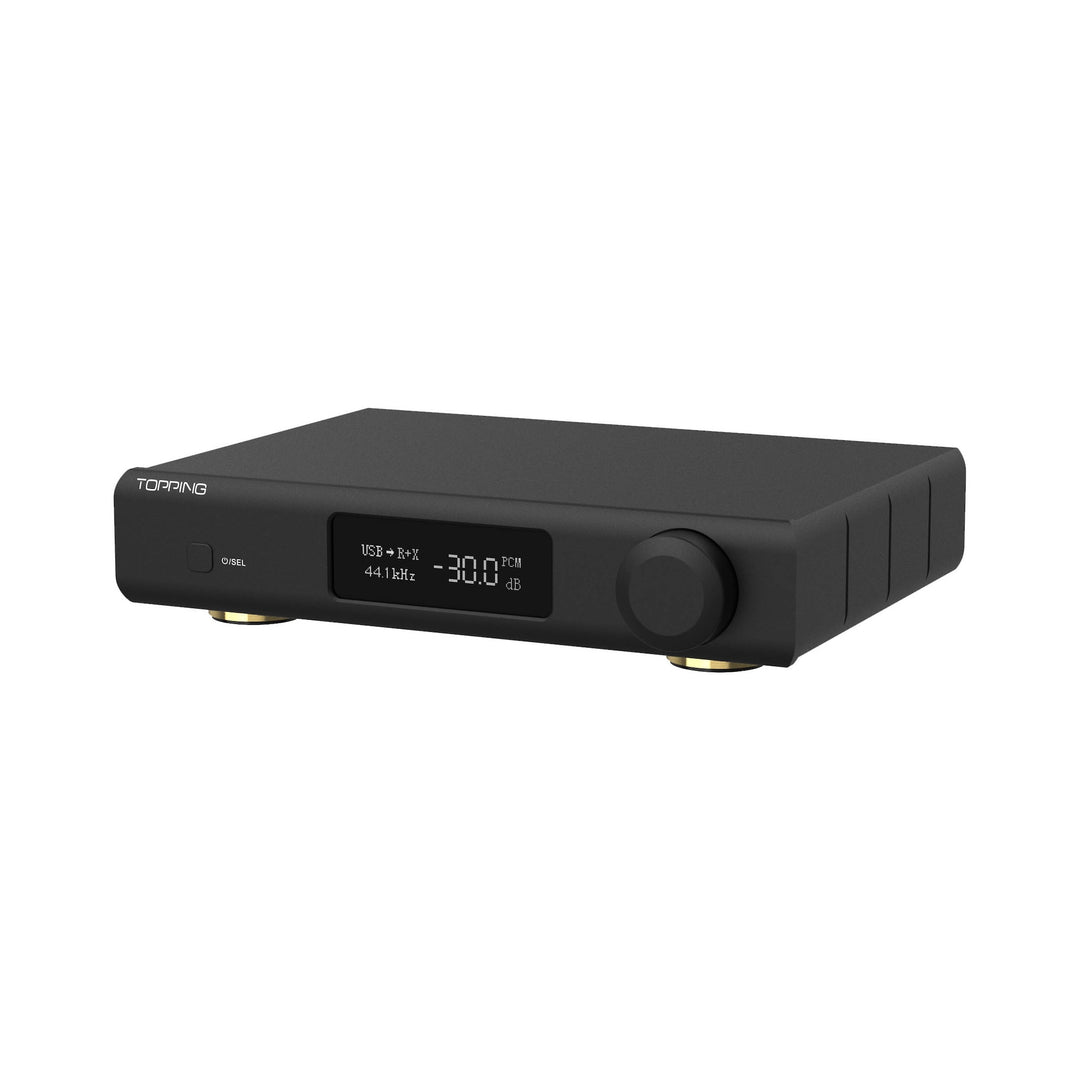

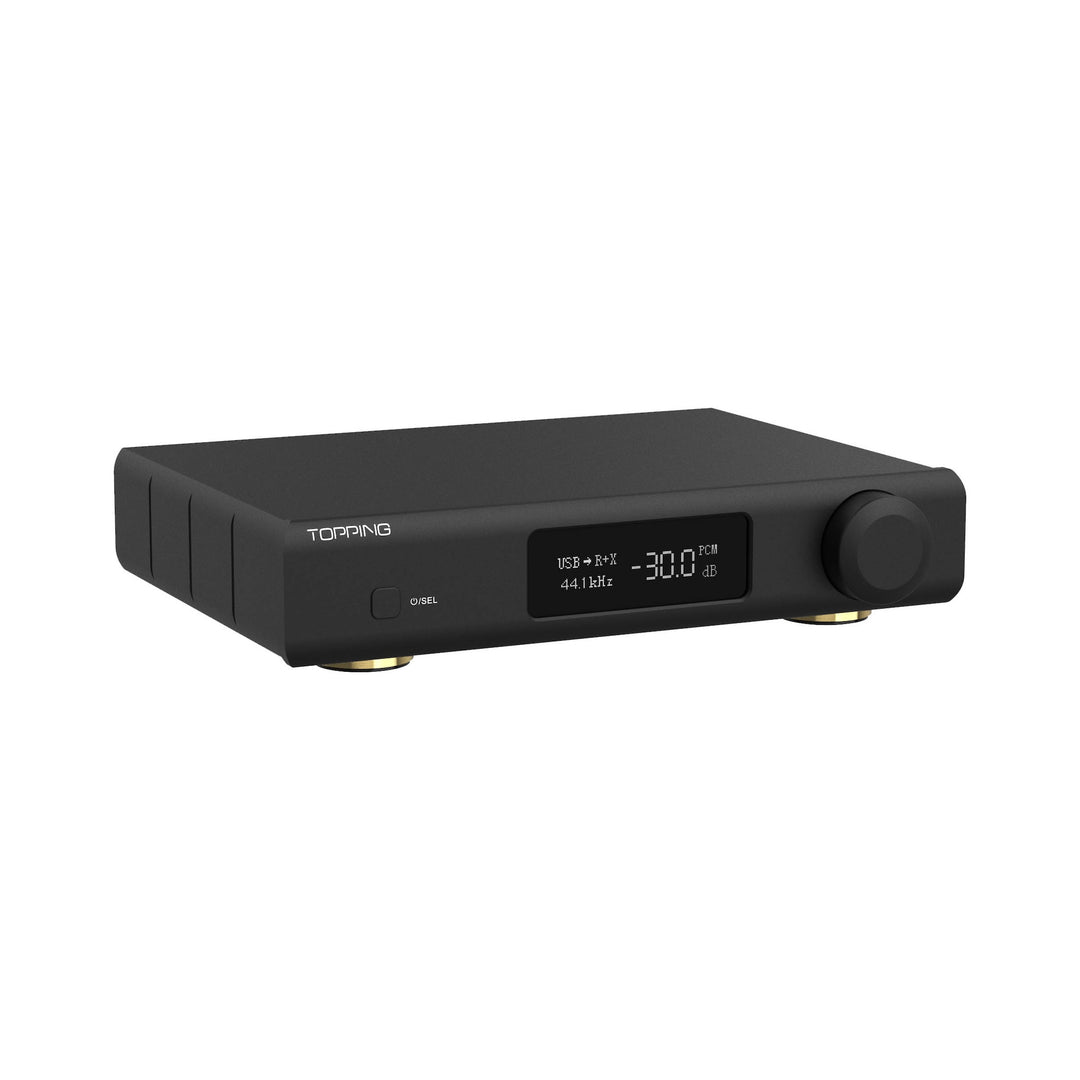

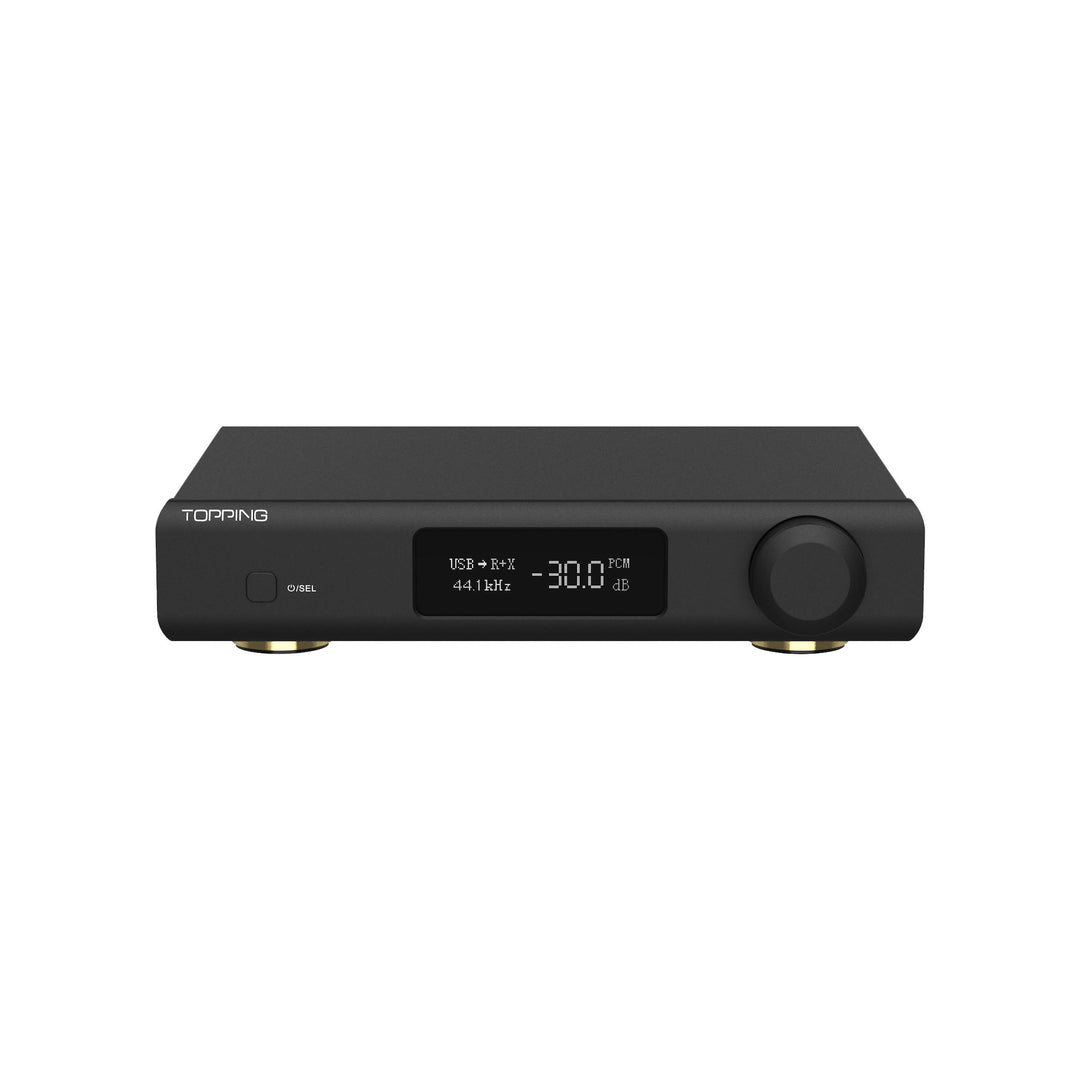

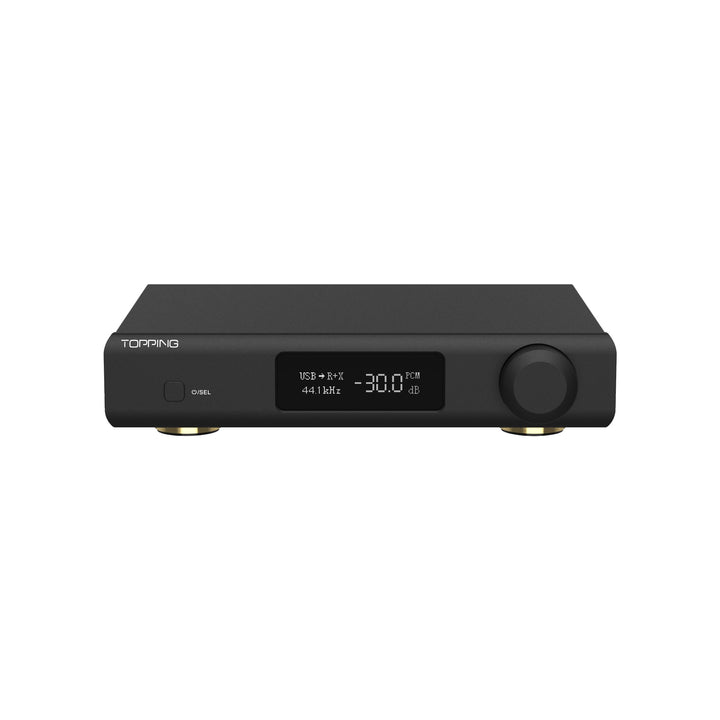

Topping D90 III SABRE | High Resolution Desktop DAC

D90 III SABRE Offers the Latest Evolution in Topping's flagship DAC Technology

• With (x2) ES9039SPRO DACs, D90 III takes performance to the next level
• The CPLD Clock provides low jitter and an optimized digital signal
• Get the most out of TIDAL with full MQA Renderer for MQA and MQA Studio
• Incredibly low noise and distortion
• Plug and Play with Windows, Mac, Linux, iOS, and Android

Cutting Edge Digital Design

With (x2) ESS ES9039SPRO chips, the left and right side have discrete D-to-A decoding. This provides higher SNR, greater dynamic range, and lower distortion. Along with that, the Altera Max II CPLD provides an optimized independent clock source for ultra low jitter.

Aurora UI Experience

The full color touch screen and touch buttons enhance the user experience with A70 Pro. You can display playback information, FFT, and VU meters. Customizations are available with a simple press of the knob.

Bluetooth 5.1 Transmission

D90 III SABRE supports LDAC/aptX Adaptive/aptX HD/AAC/SBC audio encoding, allowing high quality audio to be transmitted wirelessly for a better sound experience. With bitrates as high as 96kHz/24bit, you can experience true high resolution audio wirelessly.

Plug and Play

D90 III SABRE has wide compatibility and can be used on multiple operating systems, such as Windows 10, Windows 11, MacOS, Linux, iOS, and Android. Simply connect the audio source via a digital connection and you can use it immediately. (Some Windows systems may require driver installation).

Freely Switch Output Modes

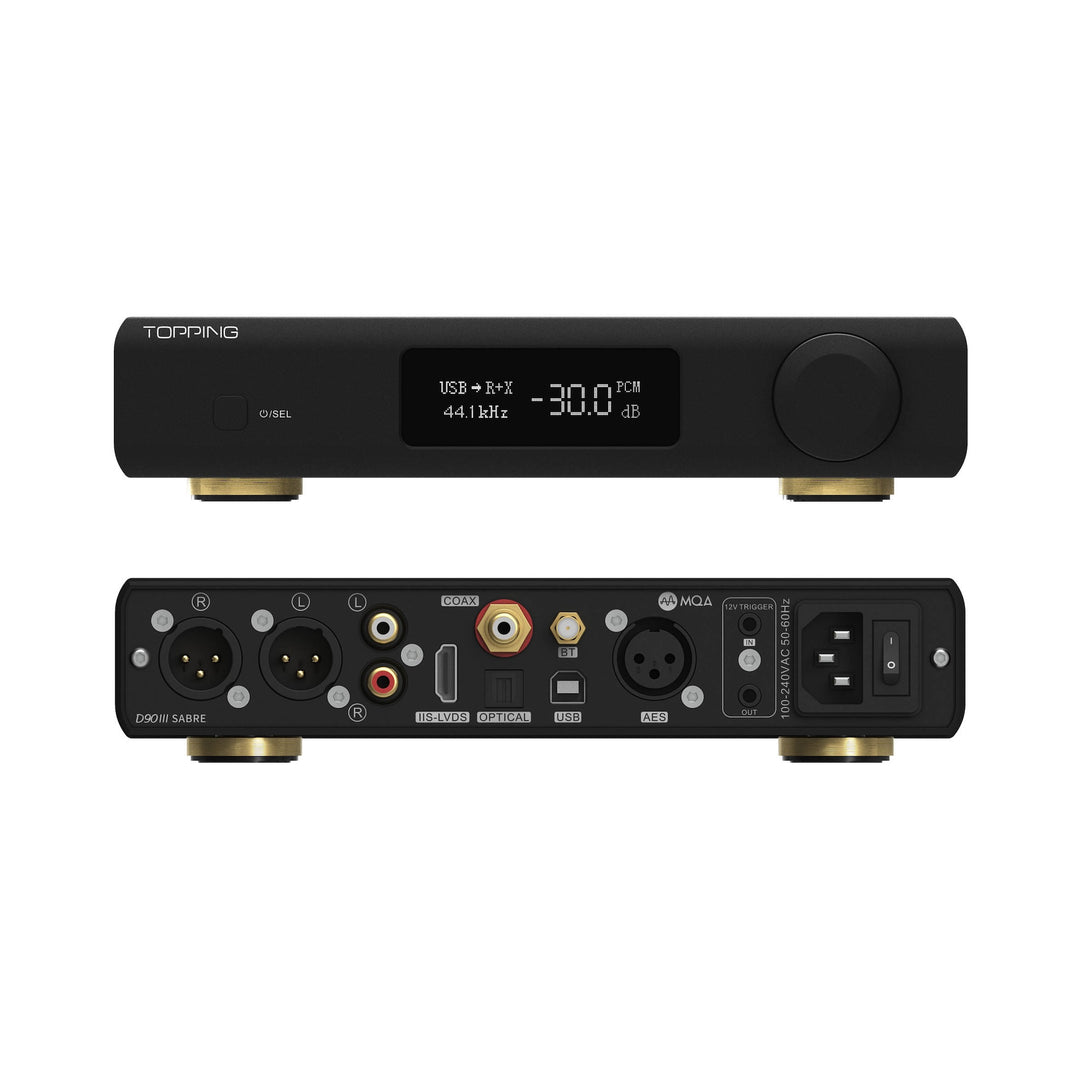

The D90 III SABRE features single-ended RCA and balanced XLR output. You can turn on RCA or XLR by itself, or output to both at the same time. This provides flexibility for a variety of setups and uses.

In addition to standard 2V/4V RCA and XLR output, D90 III adds XLR 5V and RCA 2.5V output options to increase compatibility with pro audio and other device standards.

Ultra-high Spec Input with IIS

D90 III's array of digital connections includes IIS, which offers incredibly pure, noise free audio transmission

Timbre Fine Tuning

D90 III SABRE provides a timbre selection option, which allows you to use tube simulation to provide a more mellow response, or go with the full clean, transparent delivery of Topping's transistor sound.

Specifications

• THD+N: <0.00006% @1kHz (SE) | <0.000045% @1kHz (BAL)
• SNR: 129dB @1kHz (SE) | 135dB @1kHz (BAL)
• Dynamic Range: 129dB @1kHz (SE) | 135dB @1kHz (BAL)
• Frequency Response: 20Hz-40kHz
• Output Level (SE/Bal): 2.1Vrms / 4.2Vrms -or- 2.6Vrms / 5.2Vrms
• Noise: <1.1uVrms
• Crosstalk (SE/Bal): -133dB (SE) | -149dB (BAL)
• D90 III Sabre User Manual
• Topping 1 year Warranty

In the Box

• D90 III SABRE DAC
• Remote Control
• USB Cable
• AC Cable
• Bluetooth Antenna
• Quick Start Guide
