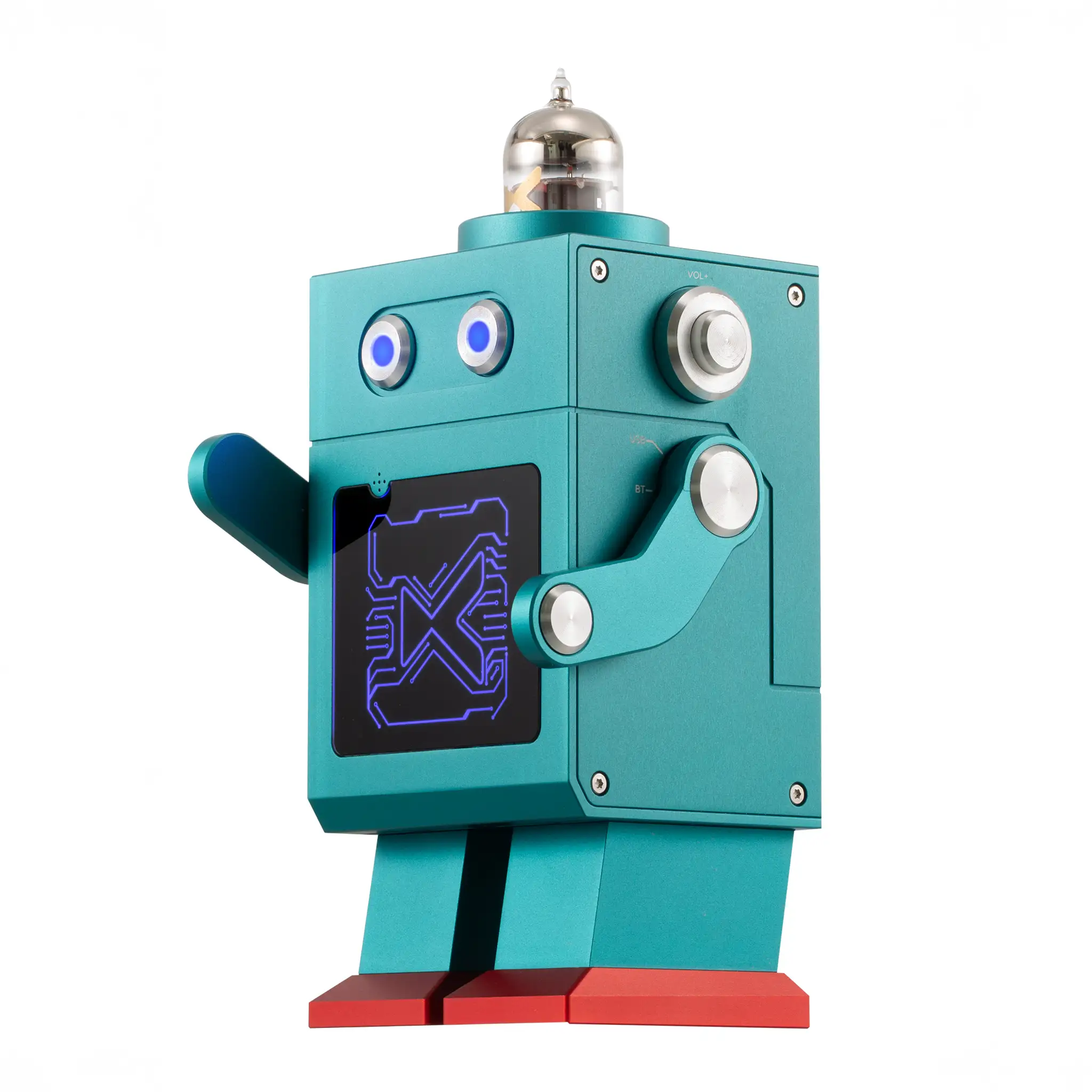

A DAC, Tube AMP, and Collector's Masterpiece, the xDuoo DM-01 is the Cyber Punk Audio Decoder of Your Dreams

• Robot-shaped desktop DAC and headphone amplifier
• 12AU7 tube amplification for nostalgic sound
• CS43131 DAC with high-resolution decoding
• 1500mW output power, suitable for 16Ω - 600Ω headphones
• Bluetooth 5.4 with aptX HD, aptX Adaptive, LDAC, and LE Audio support

Futuristic Edge Meets Powerful Performance

xDuoo breaks away from the traditional look of decoding amplifiers by presenting the DM-01 DAC/Amp. The unprecedented retro-futuristic design invites users to create a cyberpunk Hi-Fi space of their own.

DM-01 provides versatile decoding options: USB decoding for your computer, Bluetooth decoding for your smartphone, and Bluetooth decoding with AUX output for seamless connection to your TV and active speakers.

Equipped with Cirrus Logic's CS43131 DAC chip, the xDuoo DM-01 delivers high-resolution audio decoding for an immersive listening experience. Despite its compact size, it boasts an impressive 1500mW output power, effortlessly driving headphones from 16Ω to 600Ω with clarity and precision

Compact Yet Durable

The casting of the DM-01 is made from a single piece of aluminum processed by CNC technology. Its thoughtful weight distribution being heavier at the bottom and lighter on top ensures adequate stability on your desk. Compact yet powerful, it delivers an engaging audio experience while keeping your workspace clean and clutter-free.

Relive the Nostalgic Sound

The DM-01 boasts full-bodied bass, sweet sounding vocals, and gentle highs. The tube-driven distortion primarily consists of even-order harmonics, which the human ear perceives as warm, smooth, and natural—enhancing the listening experience with a rich, musical character.

Advanced USB Processing
The XMOS 16-core XU316 chip in the USB section supports ultra-high-definition formats, including PCM 32-bit/384kHz, DSD256, and MQA 8X, ensuring seamless playback of lossless audio. This powerful combination immerses you in a superior sound experience, delivering music with heavenly clarity and detail.

Hybrid Architecture
The tubes provide amplification, while transistors serve as buffers. This harmonious blend preserves the warmth and smoothness of tube sound, while seamlessly integrating the high-fidelity and rapid transient response of transistors, resulting in a delightfully dynamic and joyful musical experience.

LE Audio Technology

Equipped with a Qualcomm chip and Bluetooth 5.4, xDuoo DM-01 supports the latest LE Audio technology, delivering faster transmission speeds and ultra-low latency for an enhanced gaming experience. It also supports high-quality codecs such as aptX HD, aptX Adaptive, and LDAC, allowing you to enjoy lossless audio quality even over a Bluetooth wireless connection.

Specifications

• Power Supply: DC12V/2A
• Supported OS: Windows, Linux, Mac OS X, iOS, Android
• Frequency Response: 20Hz-20kHz (±0.5dB)
• Bluetooth Formats: AAC, SBC, aptX, aptX Adaptive, aptX HD, LDAC, LE Audio (LC3, Aptx_Lite)
• Weight: 0.73 kg (1.6 lbs)

• USB Sampling Rate
  • PCM: 16–32Bit / 44.1–384kHz
  • DSD (DoP/Native): DSD64–DSD256
  • DXD: 24–32Bit / 352.8–384kHz
  • MQA: 8X
• Headphone Output
  • Output Power: 1500mW @ 32Ω
  • THD+N: ≤0.3% @ 1kHz
  • SNR: 116dB
  • Crosstalk: ≥67dB
• Line Out
  • Output Level: 6Vrms
  • THD+N: ≤0.2% @ 1kHz
  • SNR: 116dB
  • Crosstalk: ≥70dB
• xDuoo 1 Year Warranty

In the Box

• xDuoo DM-01 Desktop DAC/Amp
• Quick Start Guide
