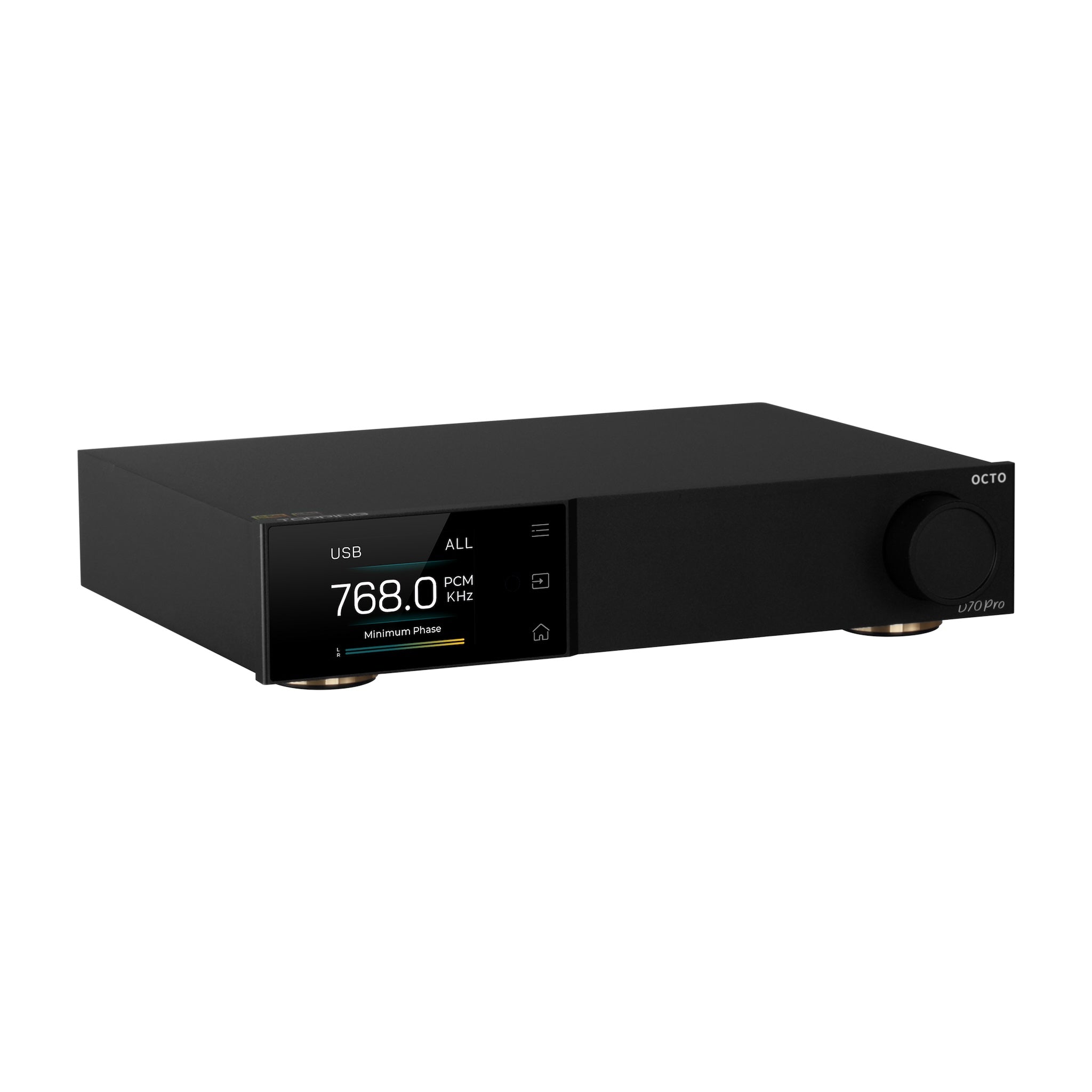

Topping D70 Pro OCTO | High Resolution Desktop DAC

Topping D70 Pro OCTO Provides Professional Quality Digital to Analog Conversion with an Audiophile Heart
- With 8 Cirrus Logic flagship CS43198 chips inside, D70 Pro OCTO offers incredible detail and resolution
- Topping's Aurora UI completes the experience with excellent usability and visuals
- Plug and Play with Windows, Mac, Linux, iOS, and Android
- Simple setup and great connectivity connectivity including Bluetooth 5.1

8-core Driver
The D70 Pro OCTO is equipped with 8 Cirrus Logic flagship chips: CS43198. It supports up to PCM768kHz/32bit and DSD512 audio, bringing you a superior audio experience across many audio formats.
Aurora UI Experience
The full color touch screen and touch buttons enhance the user experience with A70 Pro. You can display playback information, FFT, and VU meters. Customizations are available with a simple press of the knob.
Bluetooth 5.1 Transmission
D70 Pro OCTO supports LDAC/aptX Adaptive/aptX HD/AAC/SBC audio encoding, allowing high quality audio to be transmitted wirelessly for a better sound experience.
Plug and Play
D70 OCTO has wide compatibility and can be used on multiple operating systems, such as Windows 10, Windows 11, MacOS, Linux, iOS, and Android. Simply connect the audio source via a digital connection and you can use it immediately. (Some Windows systems may require driver installation).
Freely Switch Output Modes
The D70 Pro OCTO features single-ended RCA and balanced XLR output. You can turn on RCA or XLR by itself, or output to both at the same time. This provides flexibility for a variety of setups and uses.
In addition to standard 2V/4V RCA and XLR output, D70 Pro adds XLR 5V and RCA 2.5V output options to increase compatibility with pro audio and other device standards.


| Device Features | |
|---|---|
DAC |
Yes |
Headphone Amp |
No |
Digital Audio Inputs |
Coax
Optical USB Bluetooth AES |
Analog Audio Outputs |
RCA L/R
XLR L/R |
SNR/THD |
THD+N (SE/Bal): <0.00008% @1kHz / <0.00007% @1kHz
SNR (SE/Bal): 128dB @1kHz / 134dB @1kHz Dynamic Range (SE/Bal): 128dB @1kHz / 134dB @1kHz Frequency Response (SE/Bal): 20Hz-40kHz Noise (SE/Bal): <1.0uVrms / <1.0uVrms Crosstalk (SE/Bal): -124dB / -149dB |
| Amplifier | |
Output Power |
2.1Vrms / 4.2Vrms or 2.6Vrms/5.2Vrms
|
| DAC | |
DAC Chipset |
8x Cirrus Logic CS43198
|
| In the Box | |
Included |
Remote Control
USB Cable AC Cable Bluetooth Antenna Quick Start Guide |
