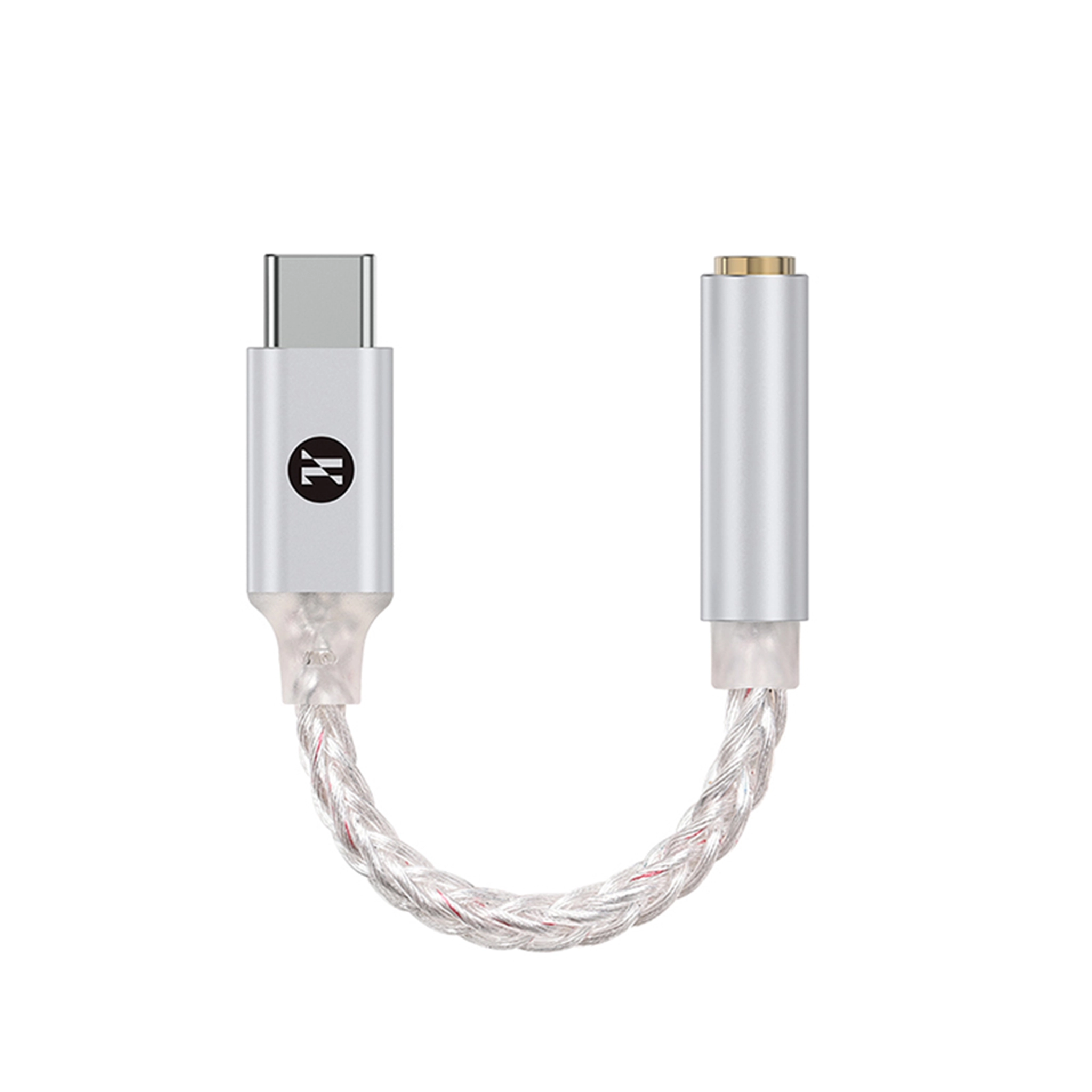

JCALLY JM20MAX | Portable DAC and Amp
No reviews
Regular price$32.99
/

Budget-Friendly Portable DAC Dongle
- Cirrus Logic CS43131 Chip
- Microphone and call support
- PCM 32bit/384kHz DSD256
- Aluminum carving shell
JM20MAX
JM20MAX portable decoding and earmuff integrated machine is equipped with a combination of high-performance CS43131 decoding chip and SGM8262 operational amplifier dual chip. The decodable PCM format supports up to 32bit/384kHz ultra-high resolution audio, and is compatible with various high-resolution audio formats such as DSD64, DSD128 and DSD256. It is more suitable for driving professional audio equipment such as high-impedance headphones, sound boxes or active sound.
| Device Features | |
|---|---|
DAC |
Yes |
Headphone Amp |
Yes |
SNR/THD |
SNR: >126dB
Crosstalk: -140dB Distortion: -112dB Frequency Range: 20Hz-20kHz |
| Amplifier | |
Output Power |
195mW@32 ohms, 10.9mW@600 ohms
|
| DAC | |
DAC Chipset |
Cirrus Logic CS43131 Chip
|
| Streamer | |
Supported Formats |
PCM 32bit/384kHz DSD256
|
