xDuoo XD05 Pro Portable DAC and Amp

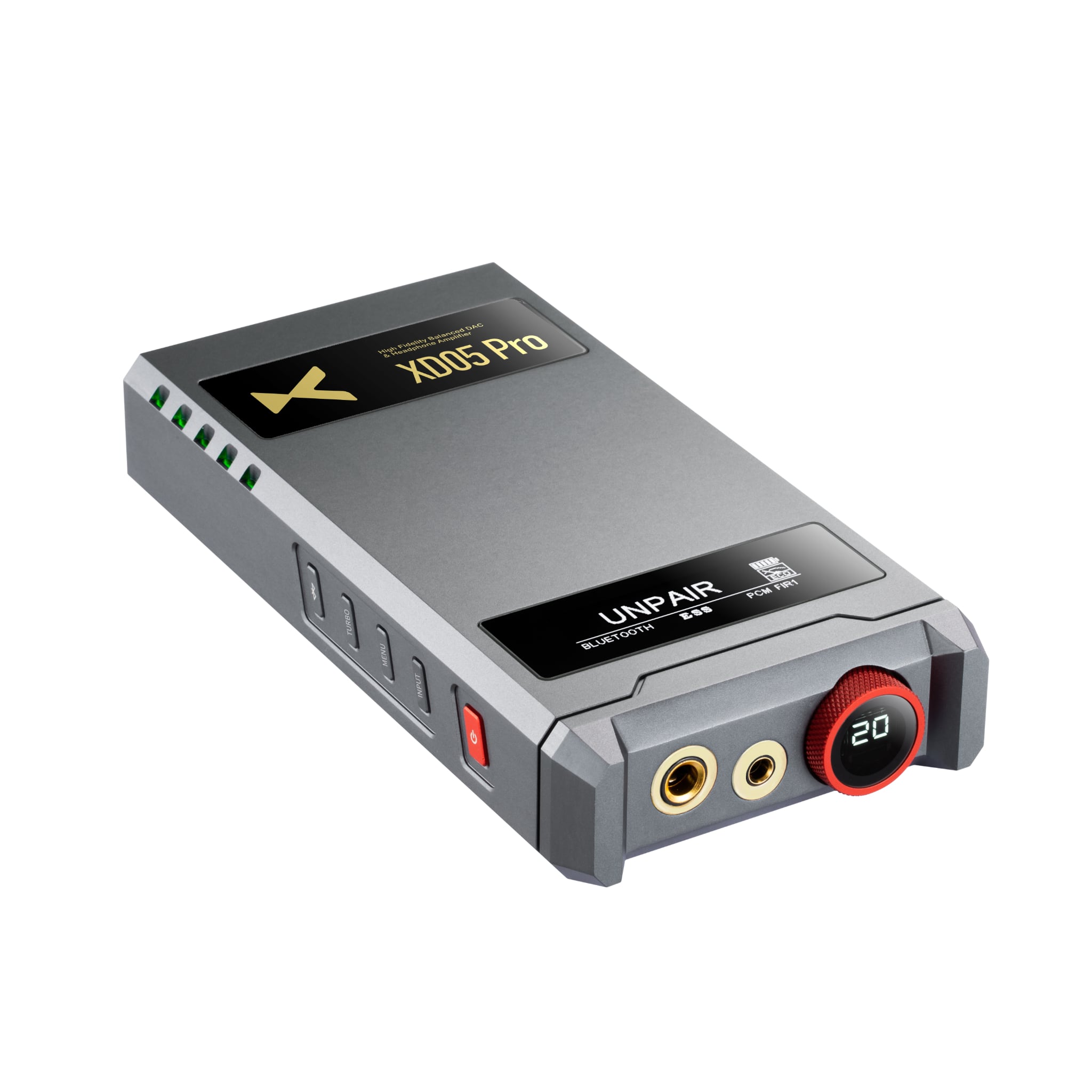

xDuoo XD05 Pro front quarter over white background

xDuoo XD05 Pro front right quarter over white background

xDuoo XD05 Pro rear quarter over white background

xDuoo XD05 Pro front over white background

xDuoo XD05 Pro rear over white background

xDuoo XD05 Pro bottom over white background

$799.00

Condition

New

Open Box

XD05 Pro Elevates xDuoo's Portable Lineup to Flagship Level

Flagship Portable Hi-Res DAC/Amp
ESS ES9039SPRO DAC provides desktop level decoding in a portable device
Powerful portable amplifier provides up to 2000mW output power at 32Ω
Replaceable DAC and Op Amp system provides massive sonic flexibility

Xduoo xd05 pro sitting on wooden table next to hifiman Arya headphone

Digital Processing and Power Meets Analog Expression

XD05 Pro offers incredible digital audio performance with the ESS ES9039SPRO DAC. You'll hear every detail with accurate positioning and a large soundstage that exemplifies the HiFi experience.

XD05 Pro's class A amplifier offers massive power, with up to 2W of output power and a high current output that can manage both high impedance and low sensitivity headphones.

xDuoo XD05 Pro power features diagram

Put it together, and you can experience a range of top of the line headphones as they were meant to be heard. Whether you're listening to classical symphonies, indie acoustic, or heavy metal, expect a detailed, spacious, accurate delivery of the music.

Key Features:

Replaceable Audio Cards: XD05 Pro has replacement cards which allow you to try out different DACs for different sound signatures, with options including R2R, AKM, and ROHM DACs available.

Desktop and Portable Mode: XD05 Pro provides its best performance when connected to a power supply. In this case, you can turn off the battery to deliver direct power to your headphones.

Bluetooth 5.1: Add the convenience and freedom of wireless connection to stream your music over Bluetooth.

Fast Charging: XD05 Pro supports fast charging with 9V or 12V DC in for shorter charging time.

Flexible Input Interface: Connect a variety of devices with digital or analog inputs, including S/PDIF, AES, USB, and line-in.

xduoo xd05 pro sitting on wooden table bottom view

Specifications for product xDuoo XD05 Pro | Portable DAC and Amp
Device Features
DAC	Yes
Headphone Amp	Yes
Digital Audio Inputs	USB-C, Mini-Optical/Digital Coax/AES, 3.5mm & 4.4mm
Analog Audio Outputs	6.3mm & 4.4mm Headphone \| 3.5mm & 4.4mm Line Out
Analog Audio Inputs	AUX In
SNR/THD	Output Impedance: <0.2Ω UnBAL \| <0.4Ω BAL Frequency Response: 20Hz-20KHz Crosstalk: >72dB UnBAL \| >105dB BAL THD+N: 0.0007% SNR: >120dB Peak Voltage: 23.8Vp-p (TURBO) UnBAL \| 47.2Vp-p (TURBO) BAL
Device Weight	1.7 lbs
Dimensions	7.1" x 3.7" x 1.3"
Other Information	Battery: Lithium-polymer \| 3.87V / 13600mAh Charing Time (std/fast): 10 hours/6 hours
Amplifier
Output Power	UnBAL: 2000mW @ 32Ω \| 240mW @ 300Ω BAL: 2000mW @ 32Ω \| 930mW @ 300Ω
DAC
DAC Chipset	ESS ES9039SPRO
In the Box
Included	USB-C to USB-C OTG USB-C to microUSB OTG USB-A to USB-C 3.5mm IC 4.4mm IC 6.3mm adapter plug User Manual Warranty Card

[{"id":41829192433739,"title":"New","option1":"New","option2":null,"option3":null,"sku":"XDU-XD05-PRO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"xDuoo XD05 Pro | Portable DAC and Amp - New","public_title":"New","options":["New"],"price":79900,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"098185886137","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41829192466507,"title":"Open Box","option1":"Open Box","option2":null,"option3":null,"sku":"XDU-XD05-PRO-OB","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"xDuoo XD05 Pro | Portable DAC and Amp - Open Box","public_title":"Open Box","options":["Open Box"],"price":69900,"weight":2268,"compare_at_price":79900,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Specification comparison between products xDuoo XD05 Pro | Portable DAC and Amp
	xDuoo XD05 Pro \| Portable DAC and AmpFrom $699.00
Device Features
DAC	Yes
Headphone Amp	Yes
Digital Audio Inputs	USB-C, Mini-Optical/Digital Coax/AES, 3.5mm & 4.4mm
Analog Audio Outputs	6.3mm & 4.4mm Headphone \| 3.5mm & 4.4mm Line Out
Analog Audio Inputs	AUX In
SNR/THD	Output Impedance: <0.2Ω UnBAL \| <0.4Ω BAL Frequency Response: 20Hz-20KHz Crosstalk: >72dB UnBAL \| >105dB BAL THD+N: 0.0007% SNR: >120dB Peak Voltage: 23.8Vp-p (TURBO) UnBAL \| 47.2Vp-p (TURBO) BAL
Device Weight	1.7 lbs
Dimensions	7.1" x 3.7" x 1.3"
Other Information	Battery: Lithium-polymer \| 3.87V / 13600mAh Charing Time (std/fast): 10 hours/6 hours
Amplifier
Output Power	UnBAL: 2000mW @ 32Ω \| 240mW @ 300Ω BAL: 2000mW @ 32Ω \| 930mW @ 300Ω
DAC
DAC Chipset	ESS ES9039SPRO
In the Box
Included	USB-C to USB-C OTG USB-C to microUSB OTG USB-A to USB-C 3.5mm IC 4.4mm IC 6.3mm adapter plug User Manual Warranty Card

An excellent portable DAC/Amp

I was shopping for a portable DAC/Amp and had this on my short list along with the Chord Hugo 2, Enleum HPA23R, the Cayin C9. The Xduoo was the most versatile of them all. It also performs on par with the flagships I mentioned once I upgraded to the Sparkos Op amp and switched to the ROHM DAC. I have no regrets.

xDuoo XD05 Pro rocks!!

Versatile, solid, awesome audio piece! I enjoy it with every single headphone I throw at it.

Surprised by this Semi-portable Amp/DAC

Was looking for something that would properly drive my Sony IER-Z1r IEMs and the Xduoo Xd05 Pro did not disappoint. Very wide soundstage, great sound for a portable (semi portable) device. I have several DAPs including a Fiio M17 which is huge, a bit bulky and of course not light weight. So the Xduoo XD05 Pro did not surprise me. However the sound did. I love great bass slam, especially acoustic bass, but I also enjoy an electronic bass with it's Grint and texture. The XD05 pro again does not disappoint and is able to deliver it in spades. Not muddy or bloated, but tight, controlled and refined. Midrange and top end are also great, but remember sound is very subjective as I write this review.

I bought it to couple my Sony NW-WM1a2 via the 4.4mm output into the XD05 Pro Balance or 4.4mm input. to boost the signal in order to drive my IEMs or a set of Cans, and was not using to use the DAC input. But since they came with a USB to USB cable and adapter I have found myself using that over the previous preference. I wish they made a case for it (perhaps coming) and I wish I could get a case where I can put both and leave them connected. It cannot match my ML 519 in resolving power, but for $800 this is really a great unit and I am proud to travel with it. So much so I have retired my IfI, Fiio Q5 and a few other portable headphone amps for this one.

I have looked at the Xduoo products before but was not impressed and concerned about low quality and short reliability. However this unit (in my mind) is a game changer. I am sure other manufacturers are watching and taking note. If not they should.
