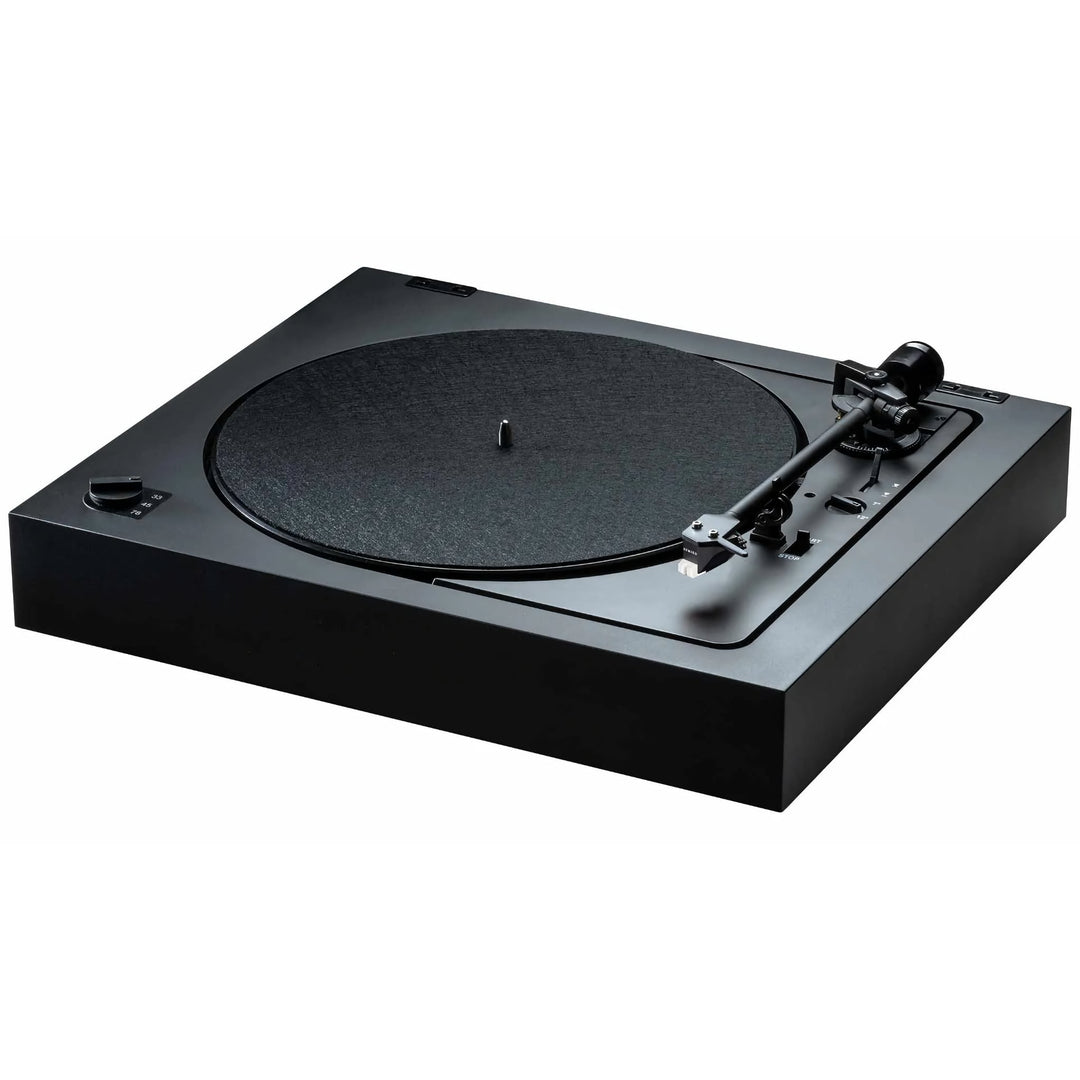

Pro-Ject A2 turntable front right 3 quarter over white background

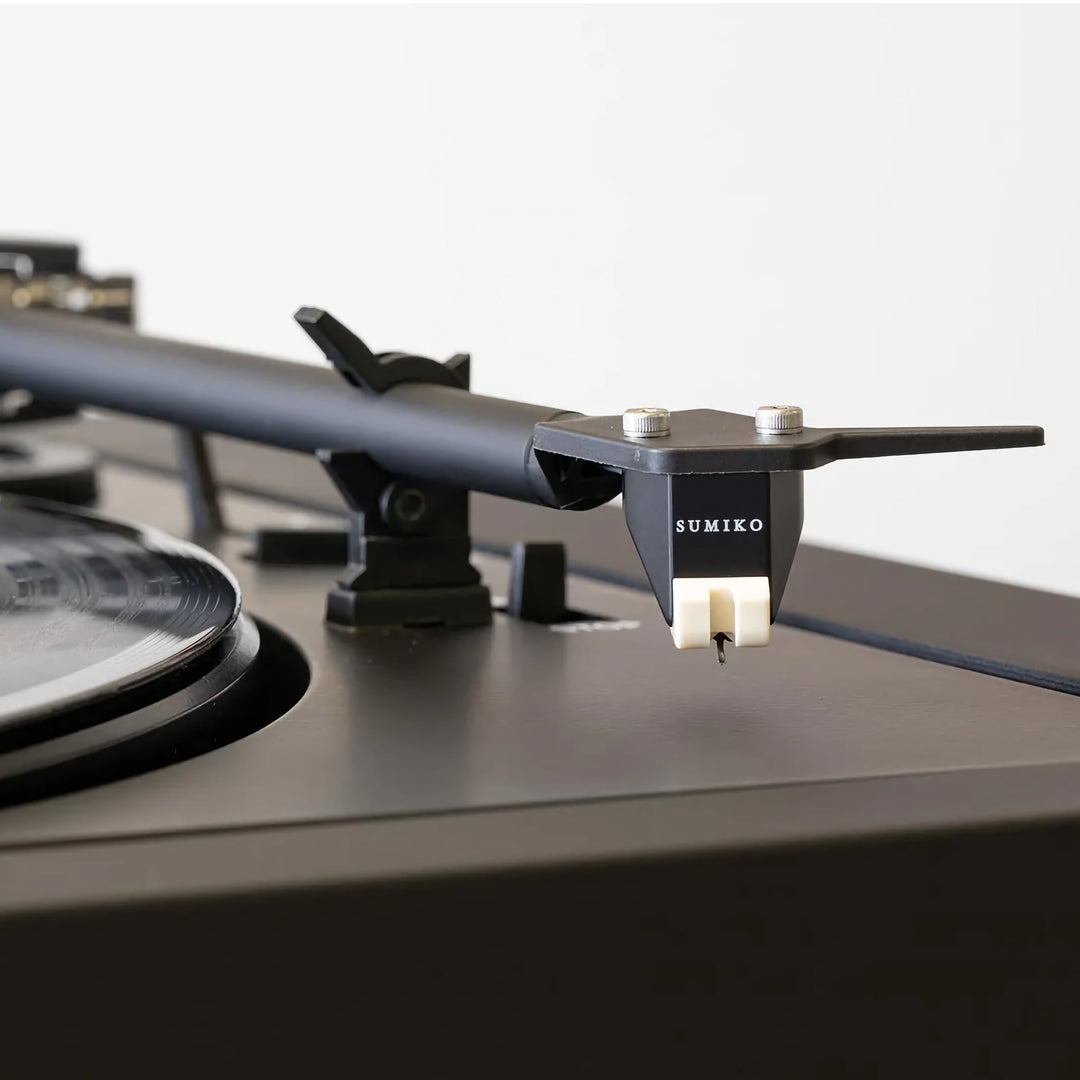

Pro-Ject A2 turntable closeup tonearm and mounted Rainier cartridge

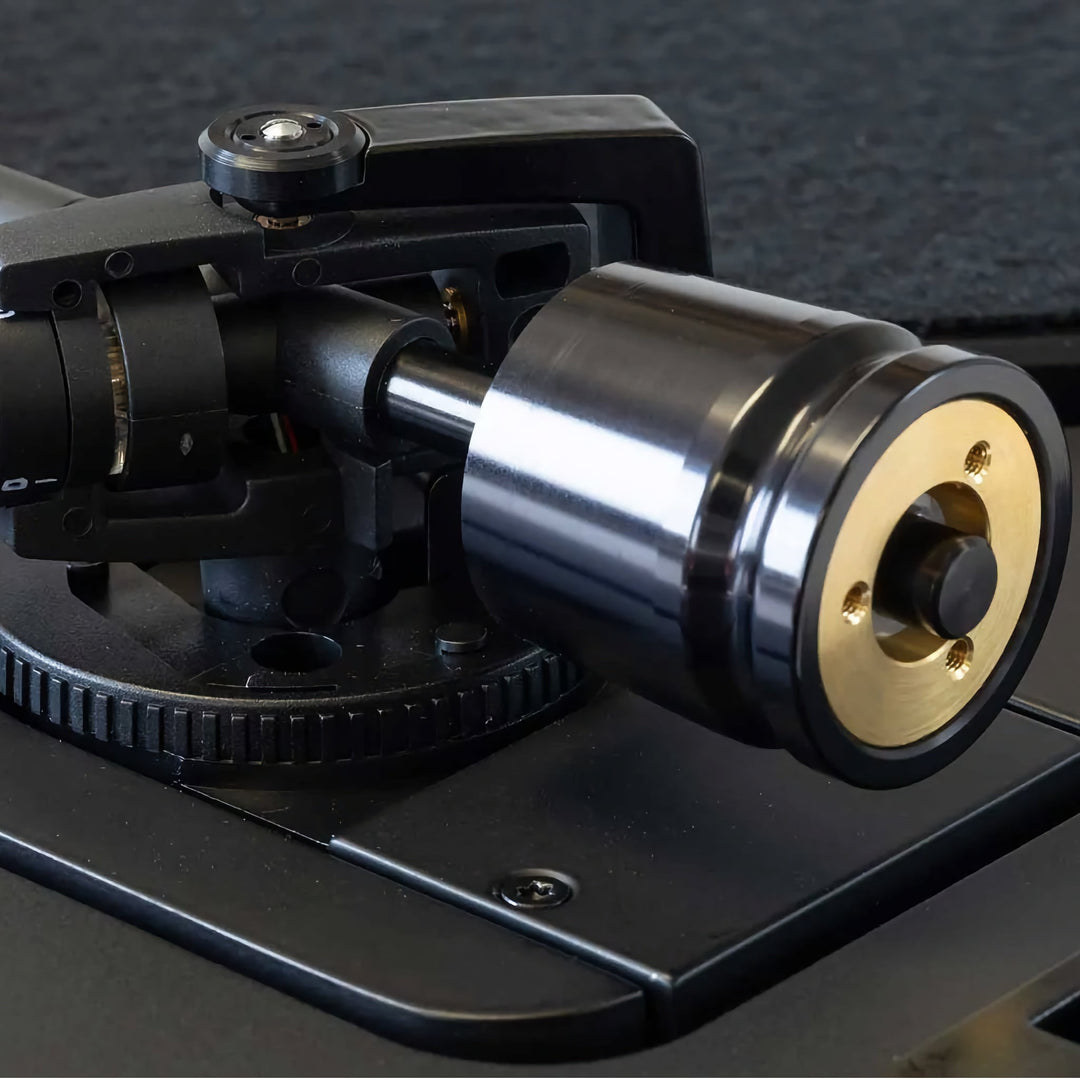

Pro-Ject A2 turntable closeup weighted tonearm bearing

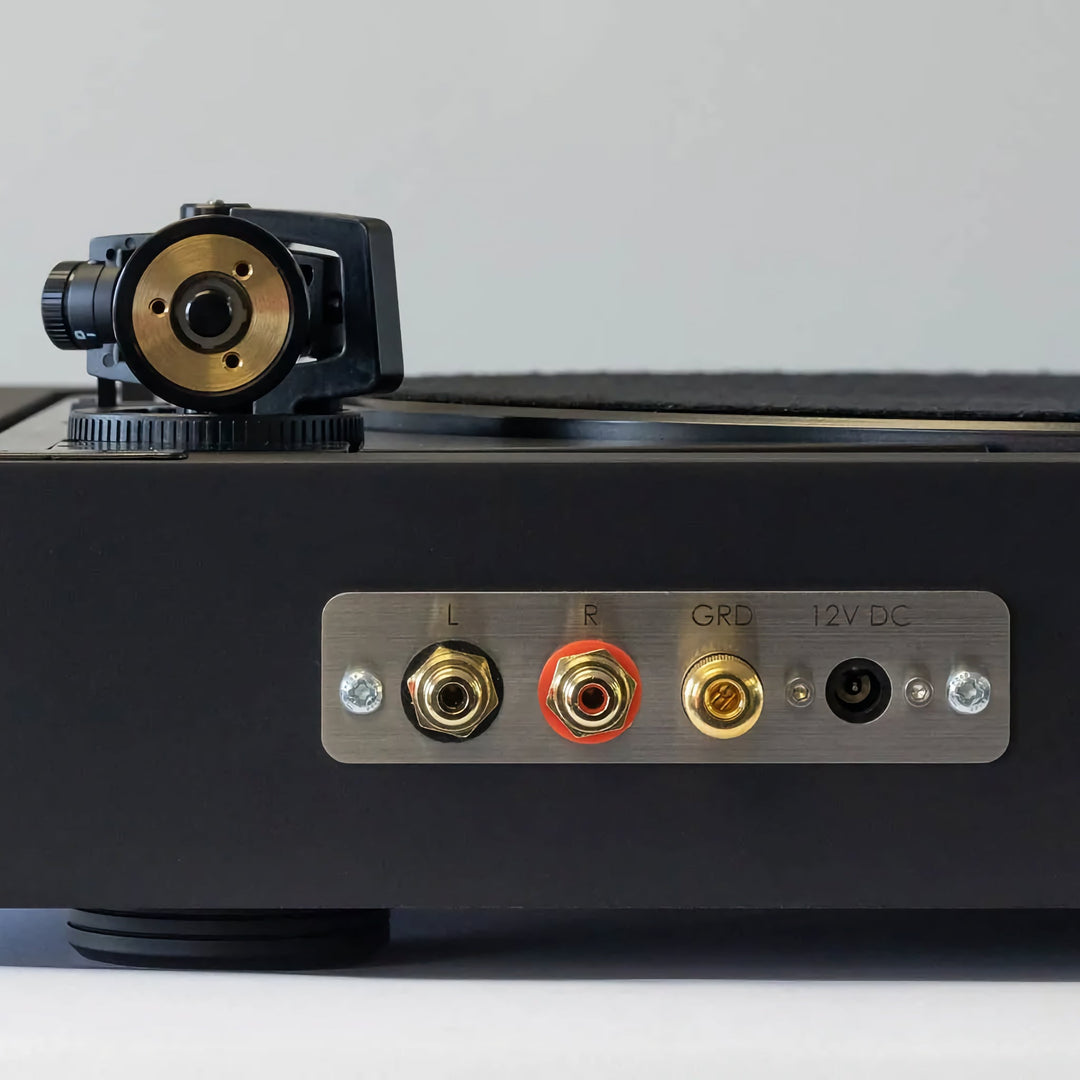

Pro-Ject A2 turntable rear closeup of connector panel

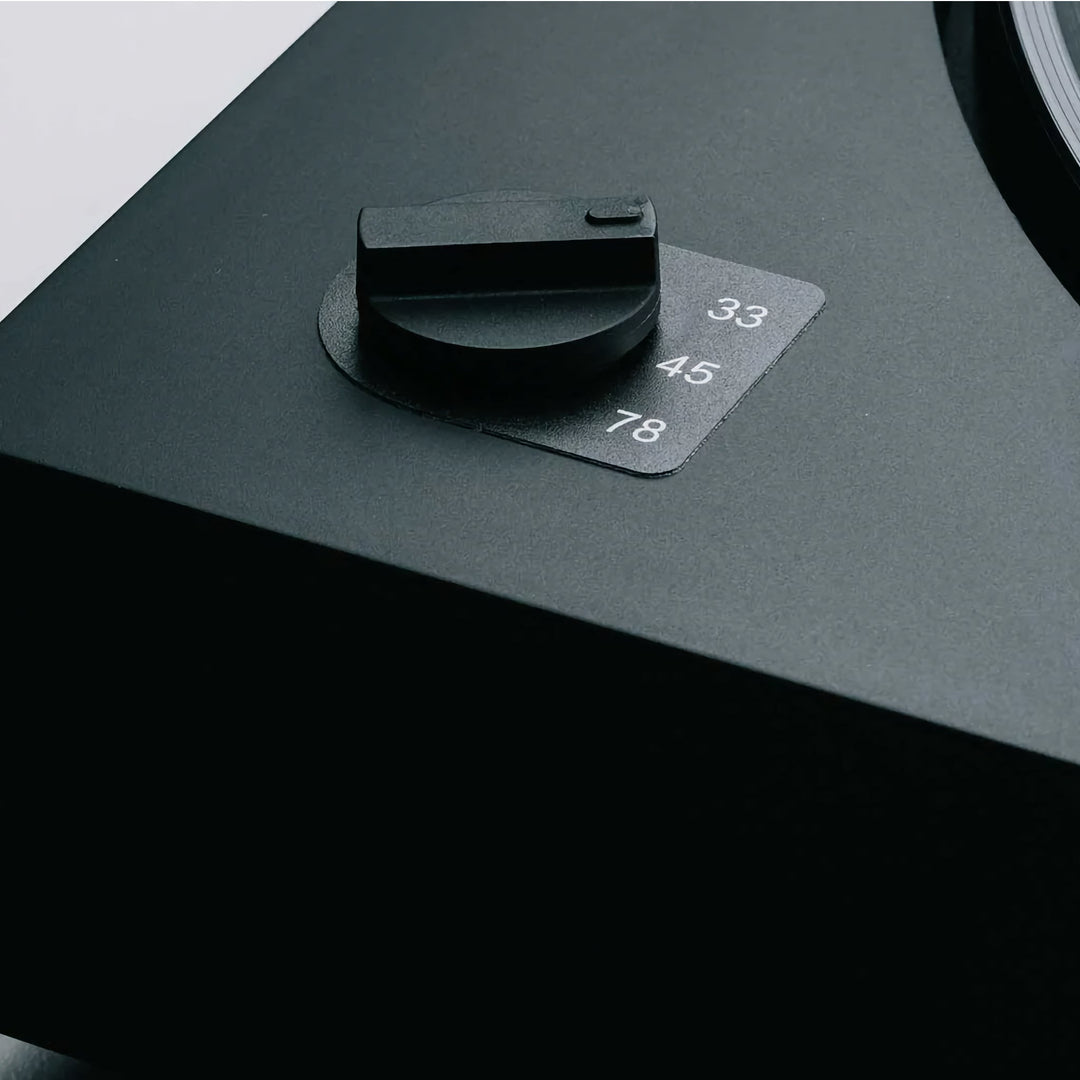

Pro-Ject A2 turntable closeup of speed selector switch

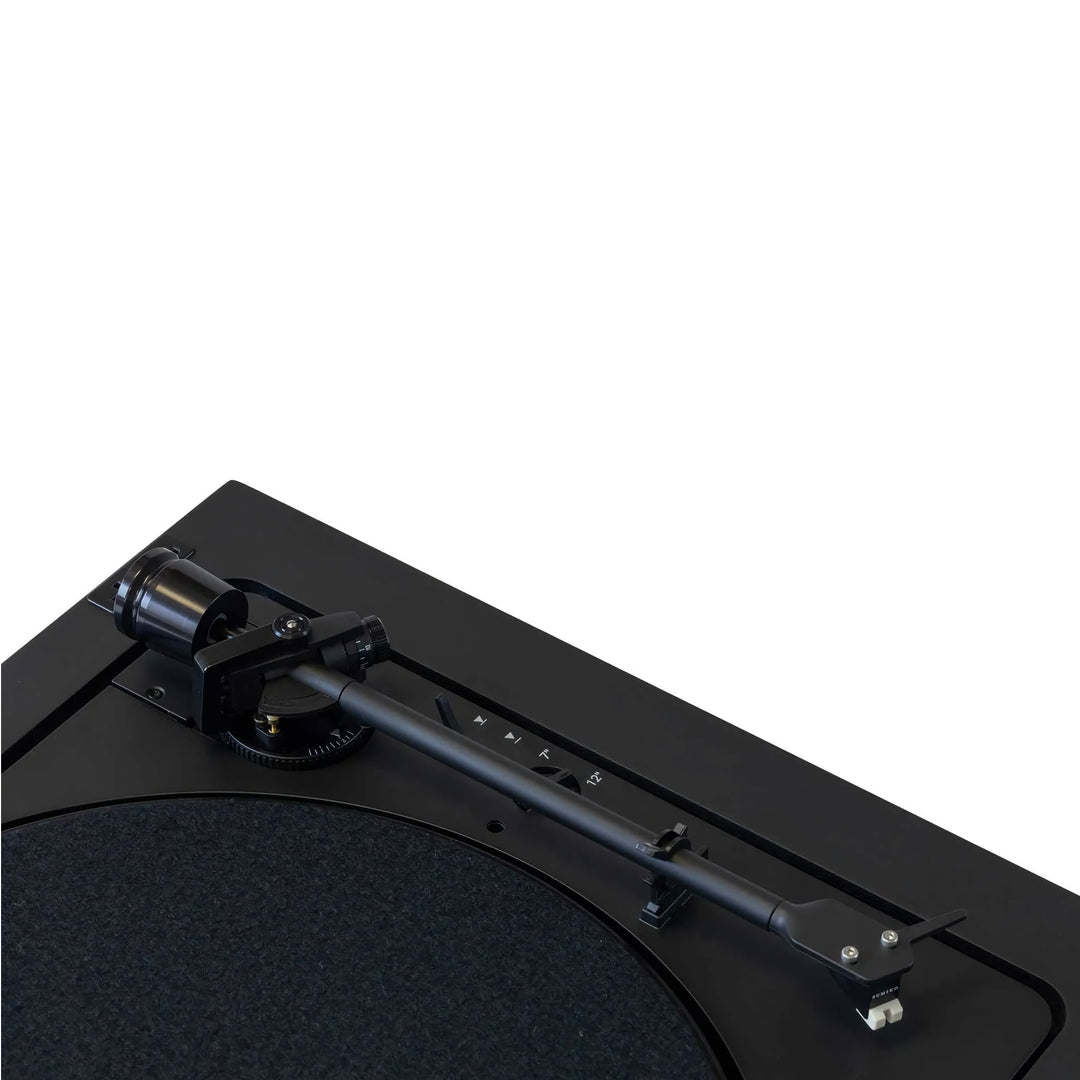

Pro-Ject A2 turntable top highlighting tonearm over white background

Pro-Ject A2 Automat | Automatic Turntable

Regular price$1,499.00
/

Pro-Ject Audio logo black

Pro-Ject A2 Provides an Upgraded and Premium Automatic Turntable Experience

  • Sumiko Rainier phono cartridge preinstalled and aligned
  • Ultra-low friction 4-point cardanic aluminum tonearm bearing
  • Precision-mechanics with automated start & stop
  • Features carbon-fiber-reinforced anti-magnetic headshell and damped aluminum platter to reduce wow & flutter

Pro-Ject A2 with Sumiko Rainier Cartridge

The Technology

The A2 perpetuates the success of Pro-Ject's A1 record player, building on the range of mechanical, fully automatic turntables. The A2 allows you to select the lateral location where the tonearm drops to the record groove. Make this selection with the dial for 7″ records (45rpm singles) or 12″ (33 or 45rpm vinyl records.) For additional flexibility, 78rpm has been added to the speed selector dial, allowing you to dust off your collection of old 10″ shellac records (please manually position the tonearm for 10″ 78s, then use the dampened cueing lever.)

NOTE: Remember that 78s have unusual groove width and are made of different materials than most other discs. We recommend Sumiko’s RS 78 stylus for use with the highly adept Sumiko Rainier moving magnet phono cartridge (it’s mounted & aligned at the factory!)

To enjoy listening to your A2 turntable, just flip the ‘Start’ switch. The tonearm will automatically move to the lead-in groove of the selected record size. Once playing, the automatic tonearm functions are entirely disengaged until the arm reaches the lead-out groove. At the lead-out groove, the tonearm will automatically lift and return to the arm rest and the turntable will shut down. Because the automatic functions are entirely mechanical, they bear no influence over sound quality during playback!

Improved Tonearm & Gimbal Bearing

The A2 automatic record player features an ultra-low-mass 8.3″ aluminum tonearm. An arm tube with a larger diameter is used to accommodate more cartridges. The A2 is proudly supplied with a Sumiko Rainier ($149 value) which positions you to upgrade to Olympia, Moonstone or Wellfleet with a simple swap of the stylus.

The suspended sub-chassis design yields a fast response loaded with transient detail and alluring micro-dynamics, while the Sumiko Rainier lends its warmth & smoothness- a match made in heaven. The tonearm bearing features a 4-pinpoint gimbal with steel-tip ball bearings made in-house by Pro-Ject. This design yields the lowest amount of friction possible and A2 will trace your record grooves with the utmost precision.

Pro-Ject A2 turntable bird's eye front right corner highlighting tonearm

Heavy MDF Plinth, Floating Sub-Chassis

The heavy MDF plinth is carefully hand-painted in a luxurious 8-coat matte black finish. Its mass greatly reduces unwanted resonance and isolates it from external vibration. The A2 then employs a system wherein the tonearm, platter bearing and motor are affixed to a separate, floating sub-chassis. This isolates the most critical components from external noise, resonance & interference. This can be especially advantageous when, for example, your loudspeakers are near your turntable in proximity.

Pro-Ject A2 suspension 3D diagram showing internal components and sub-chassis

Massless Tracking Force Adjustment

Damping the counterweight makes the tonearm as a whole more robust. It also decouples the counterweight from the tonearm which reduces resonant frequencies. Tracking force is set by adjusting a precision spring (as from the wristwatch industry!) affixed to the tonearm bearing. This keeps the center of gravity directly above the bearing center.

Why a Suspended Sub-Chassis Design?

The automatic mechanism is sizable and comprised of many parts. Thusly it requires a substantial cutout from the main plinth. Enclosed hollow spaces in turntables are cavernous propagators of vibration & resonance. By employing a suspended sub-chassis, we decouple the tonearm, cartridge and drive mechanism from the solid, high-mass main chassis, eliminating hollow spaces and their adverse effects on sound quality.

Handmade in Germany

A2’s automatic mechanism is fully handmade in Germany and builds on decades worth of experience in the manufacturing of turntables. Upwards of 98% of it’s parts & components are made and produced in Germany (either within the factory or in its immediate vicinity). The main chassis is designed & made in Austria and assembly takes place in Germany.

Specifications

General

Turntable

  • Speed: 33, 45, 78 (elec. speed change)
  • Drive principle: belt drive, fully automatic
  • Platter: damped die-cast aluminum
  • Wow & flutter: 33: +/-0.14%; 45: +/-0.12%
  • Speed drift: 33: +/-0.27%; 45: +/-0.22%
  • Signal to noise: 74dB
  • Tonearm: ultra-light-mass 8.3” aluminum tonearm
  • Effective arm length: 211mm
  • Overhang: 19.5mm
  • Power consumption: 1.5W

In the Box

  • 15V DC / 0.8A power supply
  • Dust cover
  • 7″ single adapter
  • Felt mat
  • Premium semi-symmetrical Connect it E phono cable
