The Next Generation of Weiss' Most Affordable and Versatile Digital-to-Analog Converters is Here.

• Features new upgraded DAC chip, the ES9028PRO
• Pristine, low-jitter conversion to analog audio
• Optimized output stage
• Excellent for professional mixing / mastering studio or audiophile-grade listening


Cover All your Bases

The DAC204-MK2 is a multi-format digital-to-analogue and digital-to-digital converter. Its many input and output options make it equally useful for use in a professional mixing or mastering studio as for an audiophile-grade listening room.

It now employs a redesigned DAC section: a new ES9028PRO chip featuring an advanced jitter-elimination circuit, plus an optimized output stage. The distortion figures and reconstruction filters have been fine-tuned by ear for an optimal sonic experience.

Digital Accepted Here

The DAC204-MK2 accepts incoming digital audio streams straight from any USB-equipped computer, tablet, or mobile phone. It can also receive S/PDIF and AES/EBU audio via its S/PDIF or Toslink connectors.

Outgoing Audio

The DAC204-MK2 converts the incoming digital streams to analogue audio, which simultaneously appears on its balanced XLR connectors and unbalanced RCA connectors.

It can also perform digital-to-digital conversion and output digital audio in AES/EBU or S/PDIF formats through the corresponding connectors and a BNC output connector.

Should the incoming audio be in DSD format, the DAC204-MK2 can convert that to PCM.

Stay Connected

The DAC204-MK2 can be permanently connected to multiple digital units, and the user can easily switch between them with the front-mounted Input Selector switch.

Product Comparison

The DAC204-MK2 is the bigger sibling to the DAC205-MK2. The two units offer the same conversion quality, but the DAC204-MK2 has a USB input and can convert DSD to PCM audio.

Both the DAC204-MK2 and DAC205-MK2 remain affordable alternatives to higher-grade units such as the DAC501 and HELIOS. They do not have the onboard digital processing capabilities of those units, nor do they include headphone outputs or remote controls.

Specifications

• Digital Inputs
  • USB
  • (x2) AES/EBU or S/PDIF on Toslink or RCA connectors
• Accepted Formats: PCM 44.1kHz up to 384 kHz, DSD 64x/128x
• Analog Outputs
  • Line out UnBAL RCA
  • Line out BAL XLR

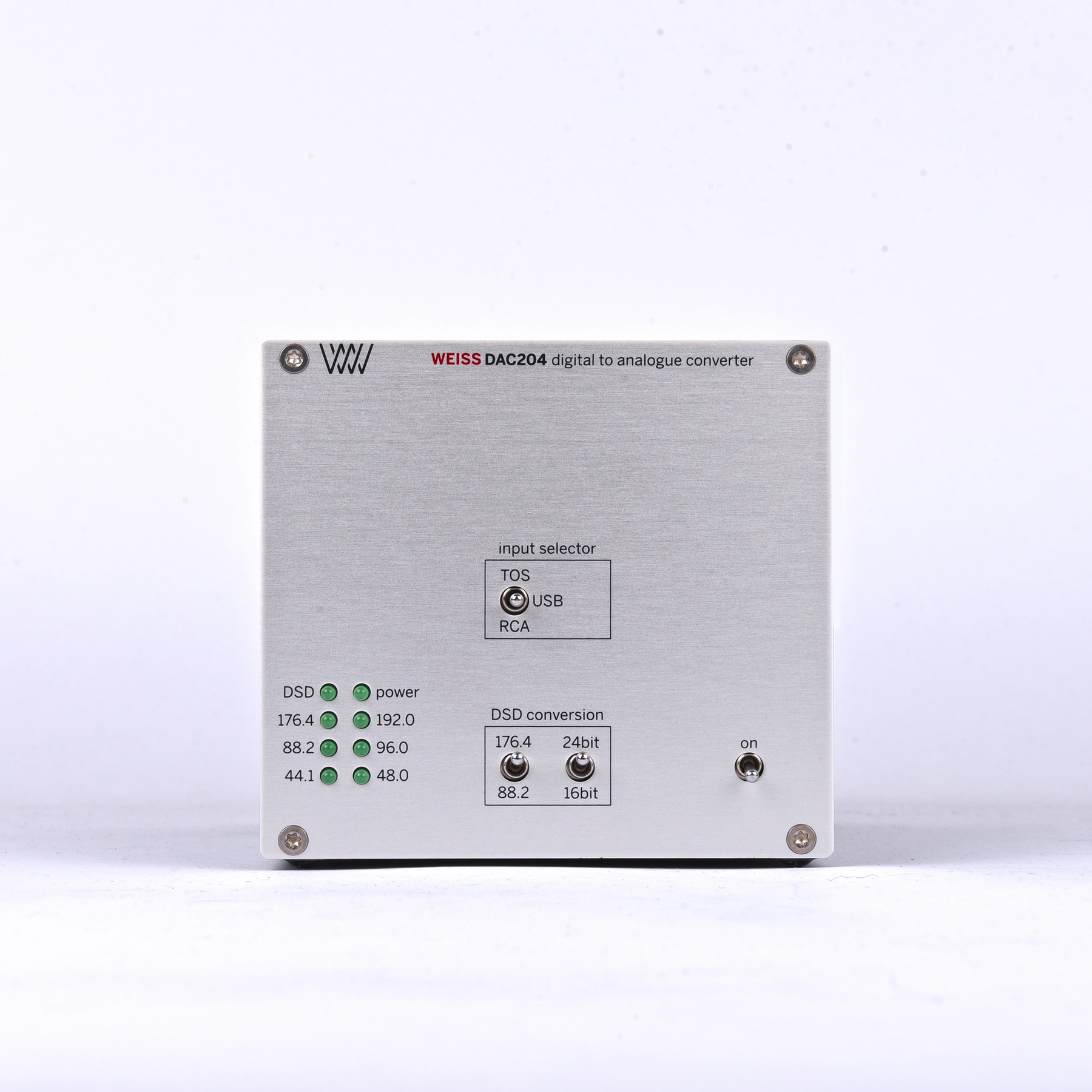

• Front Panel
  • Active Input Selector switch (USB, Toslink, or RCA)
  • (x2) switches for DSD to PCM conversion settings
  • Power on/off switch

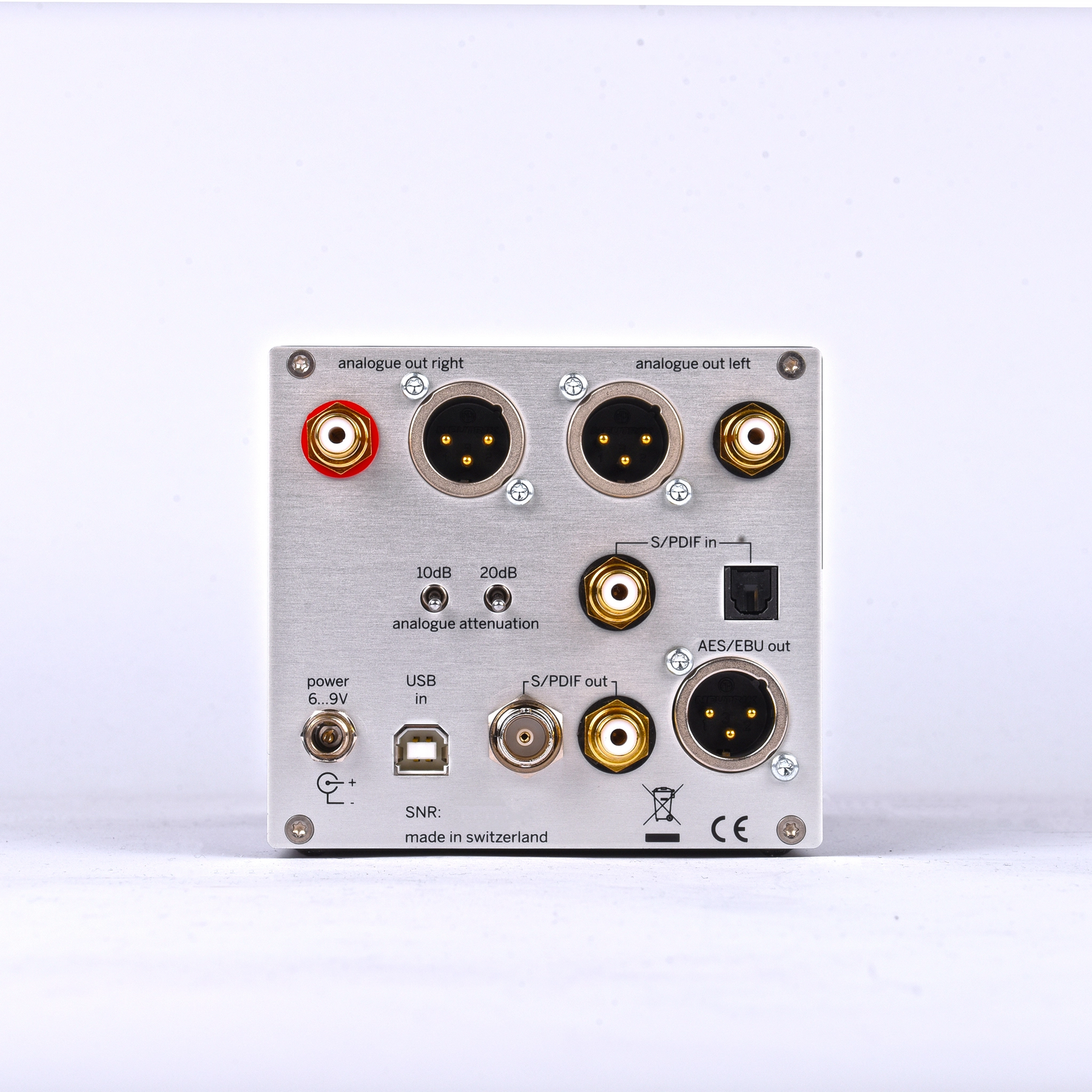

• Back Panel
  • Digital USB, RCA, and Toslink inputs
  • Digital AES/EBU on stereo XLR, RCA, and BNC outputs
  • Analog XLR and RCA outputs
  • (x2) Toggle switches for output level setting
  • External power supply connector
• Dimensions: 6.5" x 4.2" x 3.8"
